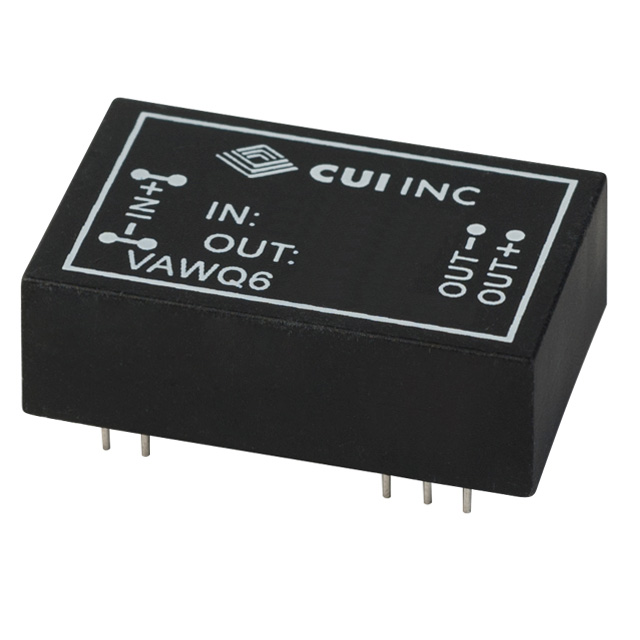

VAWQ6 Series

Manufacturer: CUI Inc.

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE ISOLATED BOARD MOUNT DC-DC CNVRT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Package / Case	Features	Voltage - Input (Max) [Max]	Applications	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
CUI Inc. VAWQ6-Q24-S3R3H	71 °C	-25 °C	Isolated Module	1	Through Hole	1 A	3.3 V	72 %	6 W	9 V	24-DIP Module 15 Leads	SCP	36 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in
CUI Inc. VAWQ6-Q48-D12H	71 °C	-25 °C	Isolated Module	2	Through Hole		12 V	80 %	6 W	18 V	24-DIP Module	SCP	72 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-12 V	230 mA	230 mA
CUI Inc. VAWQ6-Q48-S3R3H	71 °C	-25 °C	Isolated Module	1	Through Hole	1 A	3.3 V	70 %	6 W	18 V	24-DIP Module	SCP	72 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in
CUI Inc. VAWQ6-Q24-D15H	71 °C	-25 °C	Isolated Module	2	Through Hole		15 V	78 %	6 W	9 V	24-DIP Module 15 Leads	SCP	36 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-15 V	190 mA	190 mA
CUI Inc. VAWQ6-Q48-S15H	71 °C	-25 °C	Isolated Module	1	Through Hole	400 mA	15 V	80 %	6 W	18 V	24-DIP Module	SCP	72 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in
CUI Inc. VAWQ6-Q48-S12H	71 °C	-25 °C	Isolated Module	1	Through Hole	470 mA	12 V	79 %	6 W	18 V	24-DIP Module	SCP	72 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in
CUI Inc. VAWQ6-Q24-S5H	71 °C	-25 °C	Isolated Module	1	Through Hole	1 A	5 V	78 %	6 W	9 V	24-DIP Module	SCP	36 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in
CUI Inc. VAWQ6-Q24-D12H	71 °C	-25 °C	Isolated Module	2	Through Hole		12 V	80 %	6 W	9 V	24-DIP Module 15 Leads	SCP	36 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-12 V	230 mA	230 mA
CUI Inc. VAWQ6-Q24-D5H	71 °C	-25 °C	Isolated Module	2	Through Hole		5 V	80 %	6 W	9 V	24-DIP Module 15 Leads	SCP	36 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-5 V		500 mA
CUI Inc. VAWQ6-Q24-S15H	71 °C	-25 °C	Isolated Module	1	Through Hole	400 mA	15 V	80 %	6 W	9 V	24-DIP Module 15 Leads	SCP	36 V	ITE (Commercial)	3000 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in
