WM094 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 9.5"L X 6.34"W

Part	Container Type	Features	Area (L x W)	Area (L x W)	Thickness	Thickness	Material	Design	Color	Material Flammability Rating	Ratings	Height [z]	Height [z]	Size / Dimension	Size / Dimension	Area (L x W) [custom]	Area (L x W) [custom]

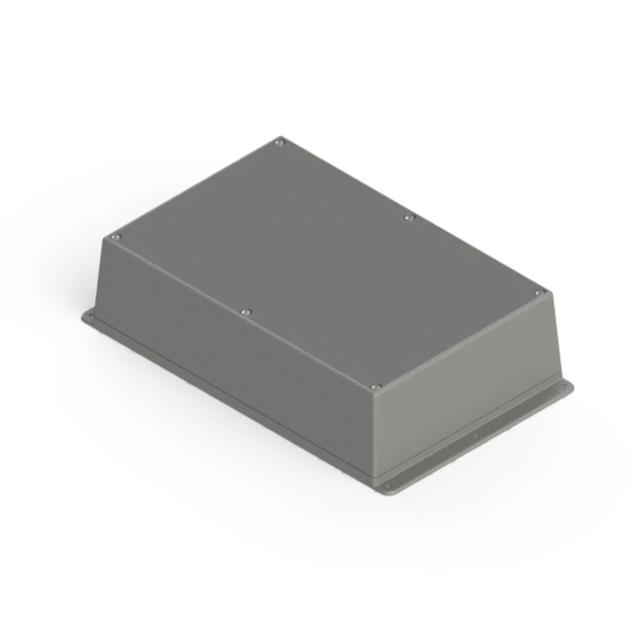

Serpac WM094RI,GY	Box	Front Access Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Gray	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

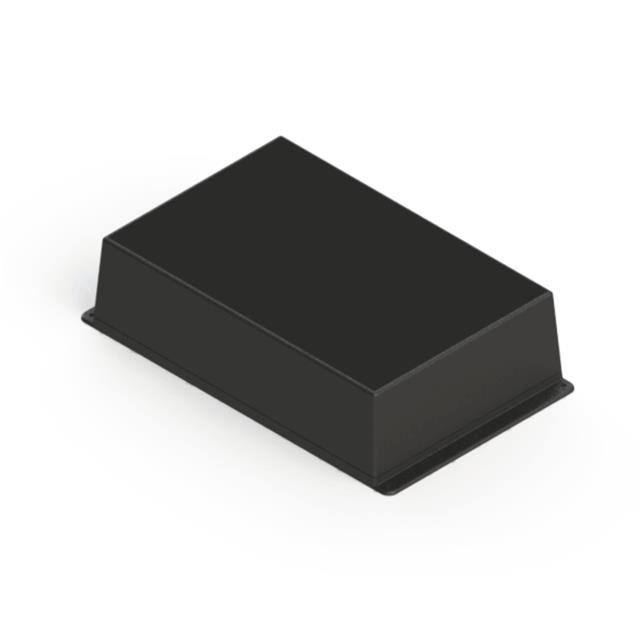

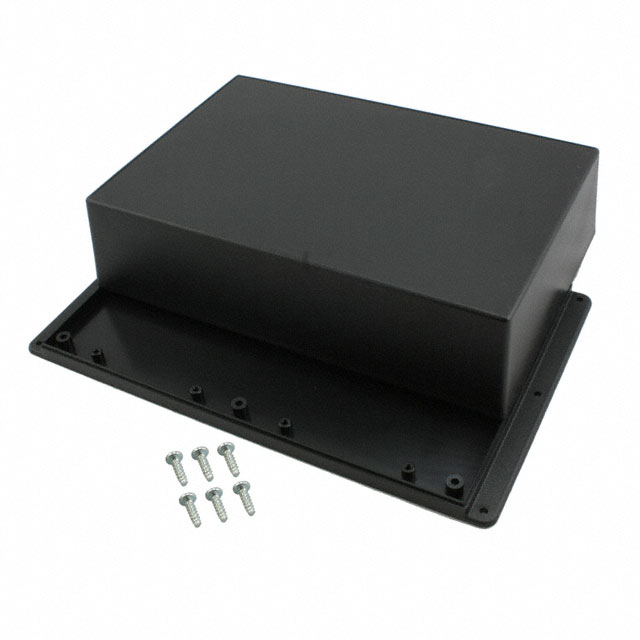

Serpac WM094I,BK	Box	Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Black	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

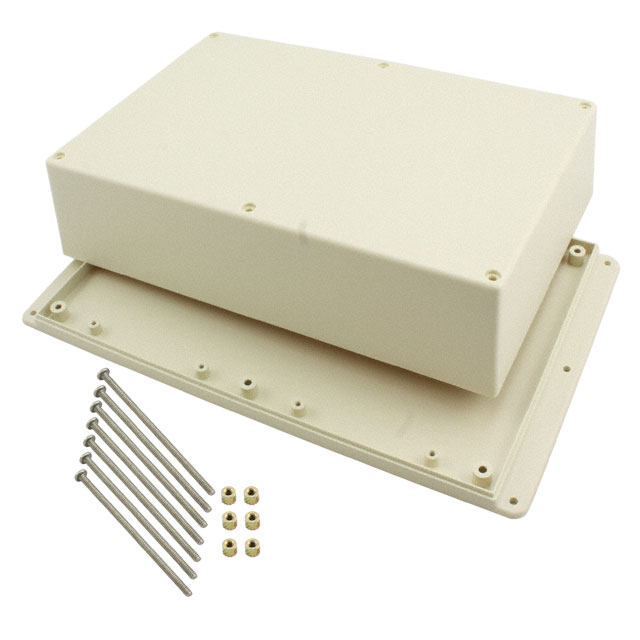

Serpac WM094R,AL	Box	Front Access Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Almond	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

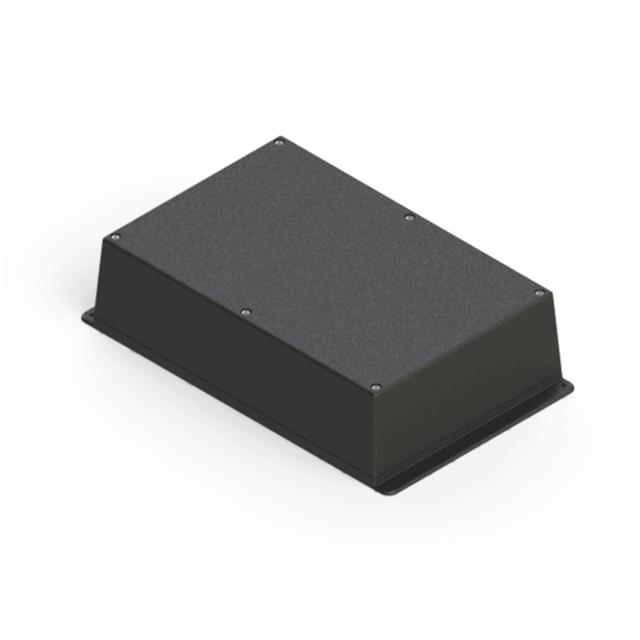

Serpac WM094R,BK	Box	Front Access Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Black	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

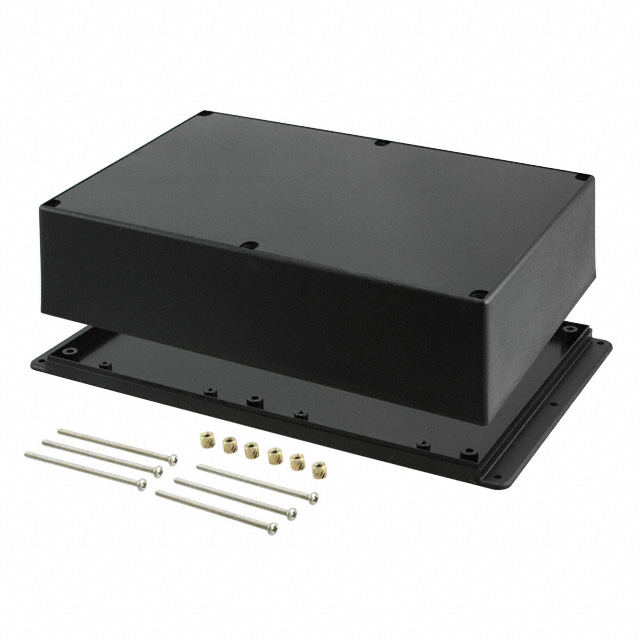

Serpac WM094RI,BK	Box	Front Access Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Black	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

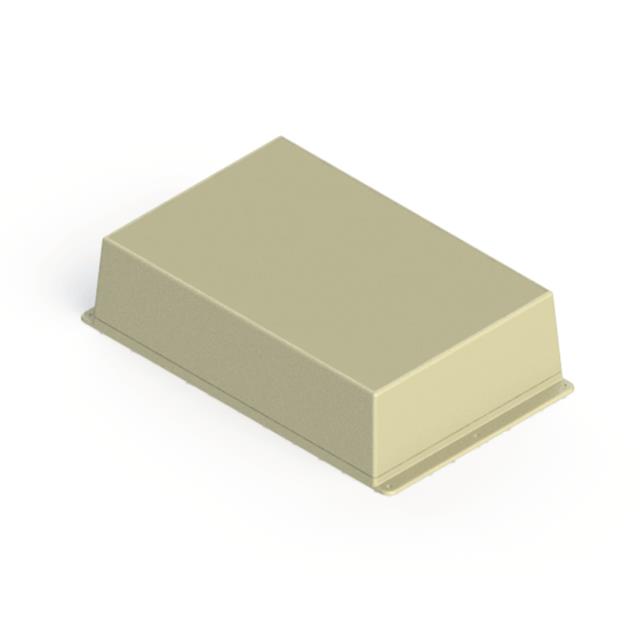

Serpac WM094I,AL	Box	Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Almond	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

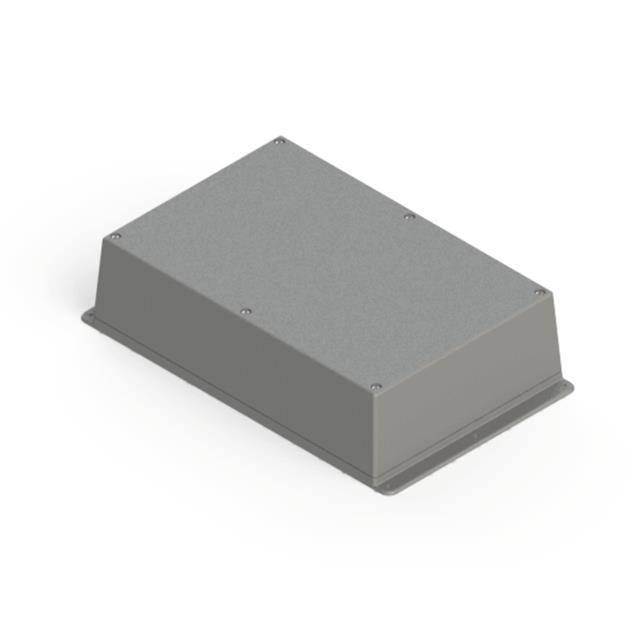

Serpac WM094R,GY	Box	Front Access Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Gray	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm	60.2 in˛	388 cm˛

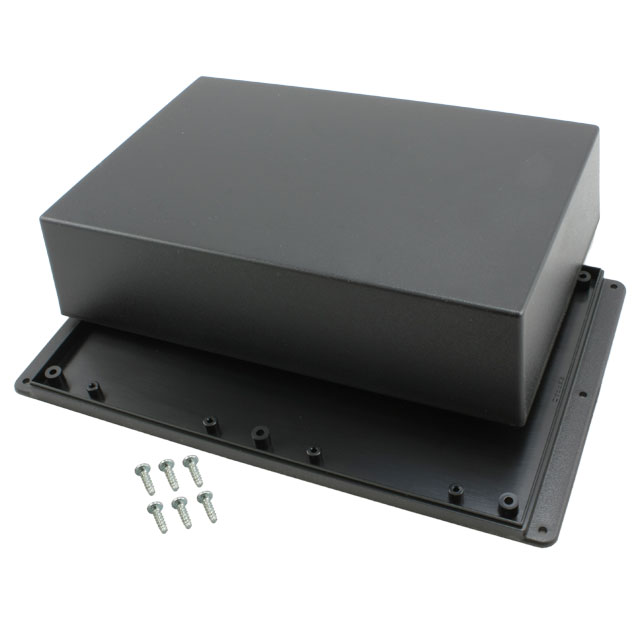

Serpac WM094,BK	Box	Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Black	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

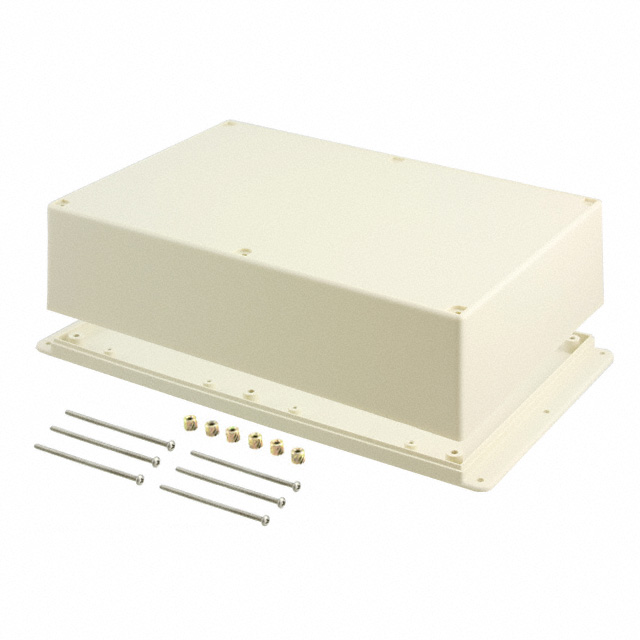

Serpac WM094RI,AL	Box	Front Access Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Almond	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm

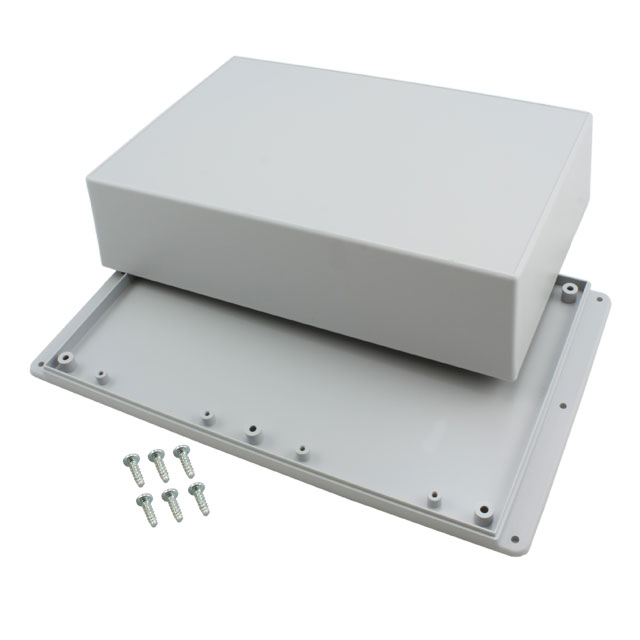

Serpac WM094I,GY	Box	Mounting Flange PCB Supports Wall Mount	60.2 in²	388 cm²	2.54 mm	0.1 in	ABS Plastic	Cover Included	Gray	UL94 HB	IP40 NEMA 1	66.04 mm	66.04 mm	6.34 in 9.5 in	161.04 mm 241.3 mm
