470027CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

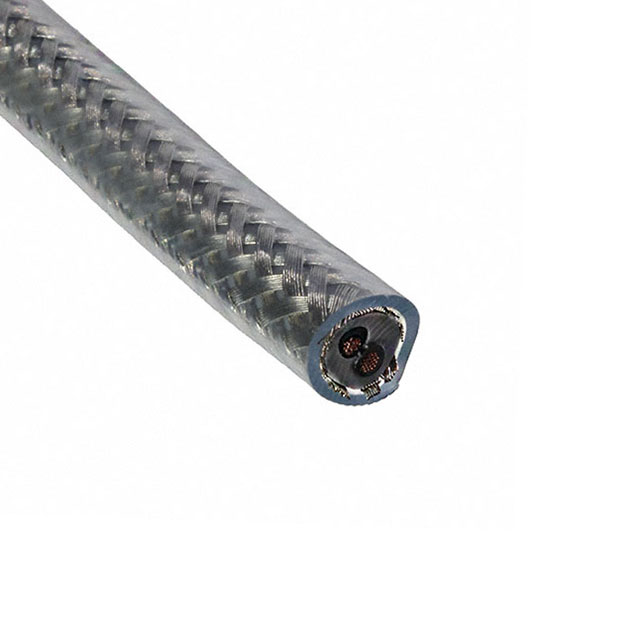

CABLE 2CON 19AWG CLEAR SHLD 100M
| Part | Usage | Jacket (Insulation) Material | Shield Coverage | Voltage | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Cable Type | Shield Type | Jacket Color | Conductor Insulation | Features | Conductor Material | Wire Gauge | Length | Length | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Industrial | Poly-Vinyl Chloride (PVC) | 80 % | 300 VDC | 328.1 ft | 100 m | 30 | 0.007 in | 7.57 mm | 0.298 " | Copper Tinned | 80 °C | -40 C | 0.0335 " | 0.851 mm | 2 | Multi-Conductor | Braid | Clear | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 19 AWG | |||||
 ALPHA WIRE | Industrial | Poly-Vinyl Chloride (PVC) | 80 % | 300 VDC | 98.43 ft | 30 m | 30 | 0.007 in | 7.57 mm | 0.298 " | Copper Tinned | 80 °C | -40 C | 0.0335 " | 0.851 mm | 2 | Multi-Conductor | Braid | Gray | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 19 AWG | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft | |||
ALPHA WIRE | Industrial | Poly-Vinyl Chloride (PVC) | 80 % | 300 VDC | 30 | 0.007 in | 7.57 mm | 0.298 " | Copper Tinned | 80 °C | -40 C | 0.0335 " | 0.851 mm | 2 | Multi-Conductor | Braid | Gray | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 19 AWG | 50 m | 164 ft | |||||
 ALPHA WIRE | Industrial | Poly-Vinyl Chloride (PVC) | 80 % | 300 VDC | 984.3 ft | 300 m | 30 | 0.007 in | 7.57 mm | 0.298 " | Copper Tinned | 80 °C | -40 C | 0.0335 " | 0.851 mm | 2 | Multi-Conductor | Braid | Clear | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | Copper Bare | 19 AWG | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft | 984.3 ft | 300 m | Enter Number of Meters in Order Quantity |
