828588 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Positions Loaded	Connector Type	Number of Positions	Contact Finish - Mating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Shape	Style	Fastening Type	Termination	Contact Type	Shrouding	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Material	Number of Positions [custom]	Features
TE Connectivity AMP Connectors 2-828588-0	118.1 µin	3 µm	All	Header	20	Gold or Gold-Palladium	Brass	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	0.652 in	16.56 mm	13.8 mm	0.543 in	Circular	Board to Cable/Wire	Latch Lock/Eject Hooks	Solder	Male Pin	Shrouded - 4 Wall	0.118 in	3 mm	2	Gray	31.5 µin	0.8 µm	Tin	Polyester Glass Filled
TE Connectivity AMP Connectors 3-828588-4	118.1 µin	3 µm	All	Header		Gold or Gold-Palladium	Brass	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	0.652 in	16.56 mm	13.8 mm	0.543 in	Circular	Board to Cable/Wire	Latch Lock/Eject Hooks	Solder	Male Pin	Shrouded - 4 Wall	0.118 in	3 mm	2	Gray	31.5 µin	0.8 µm	Tin	Polyester Glass Filled	34
TE Connectivity AMP Connectors 6-828588-0	118.1 µin	3 µm	All	Header	60	Gold or Gold-Palladium	Brass	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	0.652 in	16.56 mm	13.8 mm	0.543 in	Circular	Board to Cable/Wire	Latch Lock/Eject Hooks	Solder	Male Pin	Shrouded - 4 Wall	0.118 in	3 mm	2	Gray	31.5 µin	0.8 µm	Tin	Polyester Glass Filled
TE Connectivity AMP Connectors 1-828588-0	118.1 µin	3 µm	All	Header	10	Gold or Gold-Palladium	Brass	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	0.652 in	16.56 mm	13.8 mm	0.543 in	Circular	Board to Cable/Wire	Latch Lock/Eject Hooks	Solder	Male Pin	Shrouded - 4 Wall	0.118 in	3 mm	2	Gray	31.5 µin	0.8 µm	Tin	Polyester Glass Filled		Mounting Flange

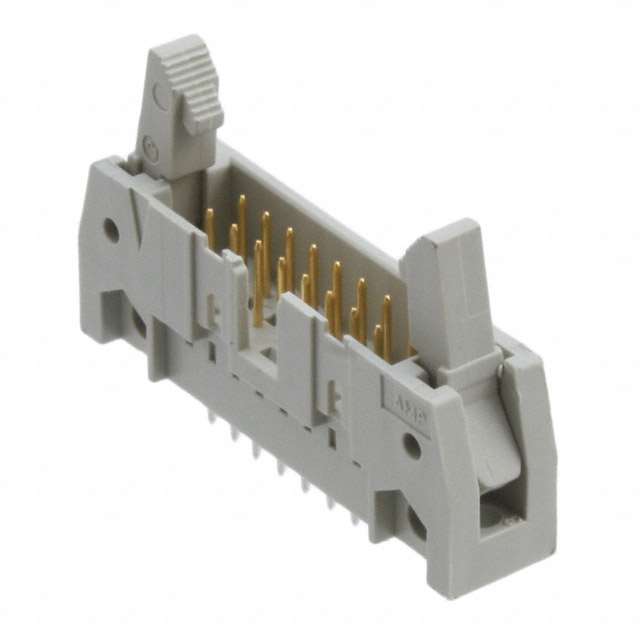

TE Connectivity AMP Connectors 1-828588-6	118.1 µin	3 µm	All	Header	16	Gold or Gold-Palladium	Brass	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	0.652 in	16.56 mm	13.8 mm	0.543 in	Circular	Board to Cable/Wire	Latch Lock/Eject Hooks	Solder	Male Pin	Shrouded - 4 Wall	0.118 in	3 mm	2	Gray	31.5 µin	0.8 µm	Tin	Polyester Glass Filled
