TPS552892-Q1 Series

Automotive 36-V, 8-A fully integrated buck-boost converter

Catalog

Automotive 36-V, 8-A fully integrated buck-boost converter

Part	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Function	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Output Type	Voltage - Input (Min) [Min]	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Voltage - Output (Max) [Max]	Synchronous Rectifier	Output Configuration	Number of Outputs	Qualification	Grade

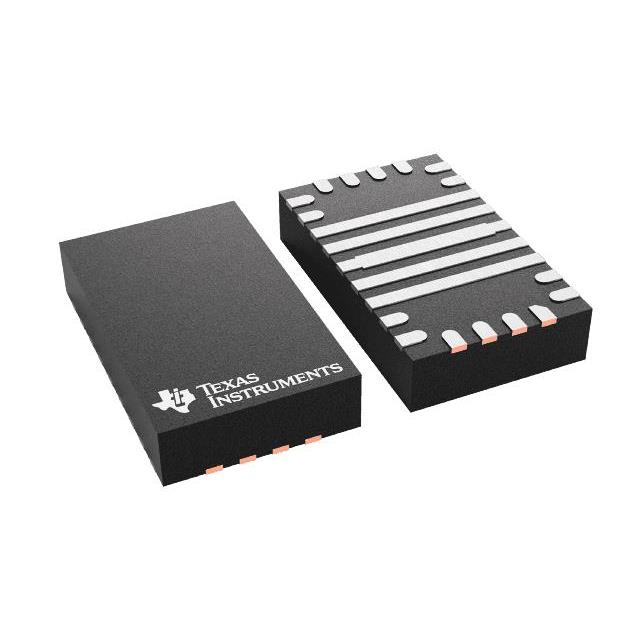

Texas Instruments TPS552892RYQR	0.8 V	36 V	Step-Up/Step-Down	Surface Mount	2.2 MHz	200 kHz	21-VQFN-HR (3x5)	Programmable	3 V	5 A	-40 °C	125 ¯C	Buck-Boost	22 V		Positive	1
Texas Instruments TPS552892QWRYQRQ1	0.8 V	36 V	Step-Up/Step-Down	Surface Mount	2.2 MHz	200 kHz	21-VQFN-HR (3x5)	Adjustable	3 V	8 A	-40 °C	125 °C	Buck-Boost	22 V		Positive	1	AEC-Q100	Automotive

Catalog

Automotive 36-V, 8-A fully integrated buck-boost converter

Key Features

• AEC-Q100 qualified:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeWide input and output voltage rangeWide input voltage range: 3.0 V to 36 VProgrammable output voltage range: 0.8 V to 22 V±1% reference voltage accuracyAdjustable output voltage compensation for voltage droop over the cable±5% accurate output current monitoringHigh efficiency over entire load range96% efficiency at V IN = 12 V, V OUT = 20 V and I OUT = 3 AProgrammable PFM and FPWM mode at light loadAvoid frequency interference and crosstalkOptional clock synchronizationProgrammable switching frequency from 200 kHz to 2.2 MHzEMI mitigationOptional programmable spread spectrumLead-less packageRich protection featuresOutput overvoltage protectionHiccup mode for output short-circuit protectionThermal shutdown protection8 A average inductor current limitSmall solution sizeMaximum switching frequency up to 2.2 MHz3.0-mm × 5.0-mm HotRod™ QFN packageAEC-Q100 qualified:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeWide input and output voltage rangeWide input voltage range: 3.0 V to 36 VProgrammable output voltage range: 0.8 V to 22 V±1% reference voltage accuracyAdjustable output voltage compensation for voltage droop over the cable±5% accurate output current monitoringHigh efficiency over entire load range96% efficiency at V IN = 12 V, V OUT = 20 V and I OUT = 3 AProgrammable PFM and FPWM mode at light loadAvoid frequency interference and crosstalkOptional clock synchronizationProgrammable switching frequency from 200 kHz to 2.2 MHzEMI mitigationOptional programmable spread spectrumLead-less packageRich protection featuresOutput overvoltage protectionHiccup mode for output short-circuit protectionThermal shutdown protection8 A average inductor current limitSmall solution sizeMaximum switching frequency up to 2.2 MHz3.0-mm × 5.0-mm HotRod™ QFN package

Description

The TPS552892-Q1 is a synchronous buck-boost converter that is optimized for converting battery voltage or adapter voltage into power supply rails. The TPS552892-Q1 integrates four MOSFET switches providing a compact solution for a variety of applications. The TPS552892-Q1 has up to 36V input voltage capability. When working in boost mode, the TPS552892-Q1 can deliver 60 W from a 12-V input. It is capable of delivering 45 W from 9-V input voltage. The TPS552892-Q1 employs an average current-mode control scheme. The switching frequency is programmable from 200 kHz to 2.2 MHz by an external resistor and can be synchronized to an external clock. The TPS552892-Q1 also provides optional spread spectrum to minimize peak EMI. The TPS552892-Q1 offers output over-voltage protection, average inductor current limit, cycle-by-cycle peak current limit, output short circuit protection. The TPS552892-Q1 also ensures safe operating with optional output current limit and hiccup-mode protection in sustained overload conditions. The TPS552892-Q1 can use a small inductor and small capacitors with high switching frequency. It is available in a 3.0-mm × 5.0-mm QFN package. The TPS552892-Q1 is a synchronous buck-boost converter that is optimized for converting battery voltage or adapter voltage into power supply rails. The TPS552892-Q1 integrates four MOSFET switches providing a compact solution for a variety of applications. The TPS552892-Q1 has up to 36V input voltage capability. When working in boost mode, the TPS552892-Q1 can deliver 60 W from a 12-V input. It is capable of delivering 45 W from 9-V input voltage. The TPS552892-Q1 employs an average current-mode control scheme. The switching frequency is programmable from 200 kHz to 2.2 MHz by an external resistor and can be synchronized to an external clock. The TPS552892-Q1 also provides optional spread spectrum to minimize peak EMI. The TPS552892-Q1 offers output over-voltage protection, average inductor current limit, cycle-by-cycle peak current limit, output short circuit protection. The TPS552892-Q1 also ensures safe operating with optional output current limit and hiccup-mode protection in sustained overload conditions. The TPS552892-Q1 can use a small inductor and small capacitors with high switching frequency. It is available in a 3.0-mm × 5.0-mm QFN package.
