17 Series

Catalog

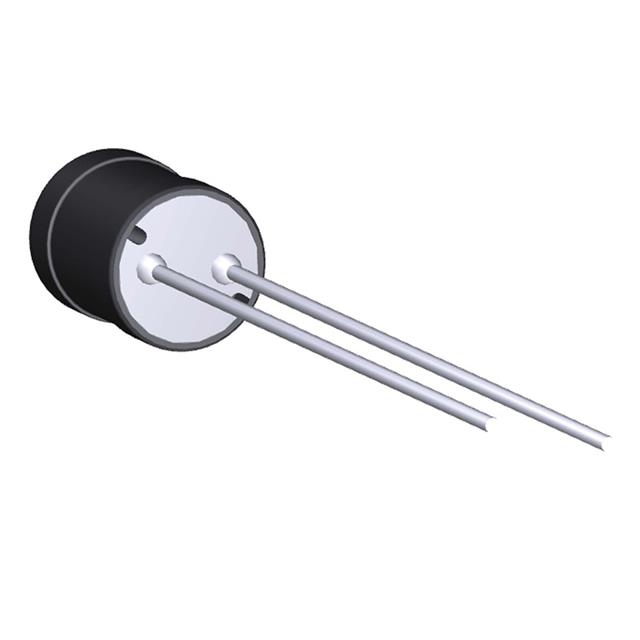

RF INDUCTORS - LEADED RADIAL INDUCTOR 47MH 30MA

Part	Operating Temperature [Max]	Mounting Type	Type	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Package / Case	Current Rating (Amps)	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Supplier Device Package	Inductance Frequency - Test	Shielding
Murata Electronics 17476C	70 °C	Through Hole	Wirewound	154 Ohm	250 kHz	Radial Vertical Cylinder	30 mA	47 mH	0.283 in	7.2 mm	50 kHz 90	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17224C	70 °C	Through Hole	Wirewound	750 mOhm	4.4 MHz	Radial Vertical Cylinder	480 mA	220 µH	0.283 in	7.2 mm	100 100 kHz	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17685C	70 °C	Through Hole	Wirewound	20 Ohm	850 kHz	Radial Vertical Cylinder	80 mA		0.283 in	7.2 mm	145 150 kHz	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17334C	70 °C	Through Hole	Wirewound	1.1 Ohm	3.7 MHz	Radial Vertical Cylinder	0.42 A	330 µH	0.283 in	7.2 mm	100 100 kHz	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17474C	70 °C	Through Hole	Wirewound	1.5 Ohm		Radial Vertical Cylinder	0.34 A	470 µH	0.283 in	7.2 mm	100 kHz 110	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17154C	70 °C	Through Hole	Wirewound	490 mOhm	5.7 MHz	Radial Vertical Cylinder	580 mA	150 µH	0.283 in	7.2 mm	90 100 kHz	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17475C	70 °C	Through Hole	Wirewound	13.6 Ohm	950 kHz	Radial Vertical Cylinder	0.09 A	4.7 mH	0.283 in	7.2 mm	150 150 kHz	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17335C	70 °C	Through Hole	Wirewound	10 Ohm	1.2 MHz	Radial Vertical Cylinder	110 mA	3300 µH	0.283 in	7.2 mm	140 150 kHz	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17105C	70 °C	Through Hole	Wirewound	3.3 Ohm	2.1 MHz	Radial Vertical Cylinder	190 mA	1 mH	0.283 in	7.2 mm	100 kHz 120	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
Murata Electronics 17225C	70 °C	Through Hole	Wirewound	7.8 Ohm	1.7 MHz	Radial Vertical Cylinder	120 mA	2.2 mH	0.283 in	7.2 mm	50 kHz 90	0.413 "	10.5 mm	10 %	Radial Lead	1 kHz	Unshielded
