EDV10 Series

Catalog

STRONGHOLD FEMALE DISCONNECT

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Insulation	Features	Tab Thickness	Tab Thickness	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Terminal Type	Tab Width [x]	Tab Width [x]	Gender	Color	Termination	Contact Finish	Insulation Diameter	Insulation Diameter	Tab Length	Tab Length	Material - Insulation	Length - Overall	Length - Overall

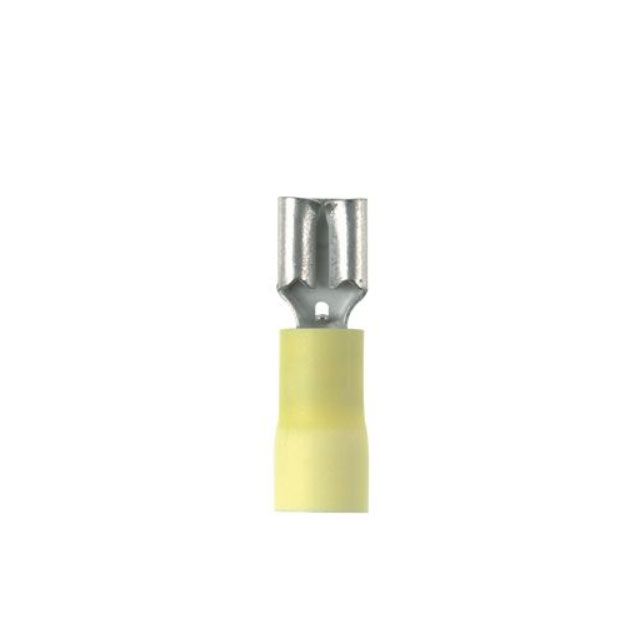

Panduit Corp EDV10-250-Q	5.84 mm	0.23 in	Brass	Non-Mating End Insulated	Butted Seam	0.81 mm	0.032 in	Free Hanging (In-Line)	10 AWG	12 AWG	26.16 mm	1.03 in	Standard	6.35 mm	0.25 in	Female	Yellow	Crimp	Tin

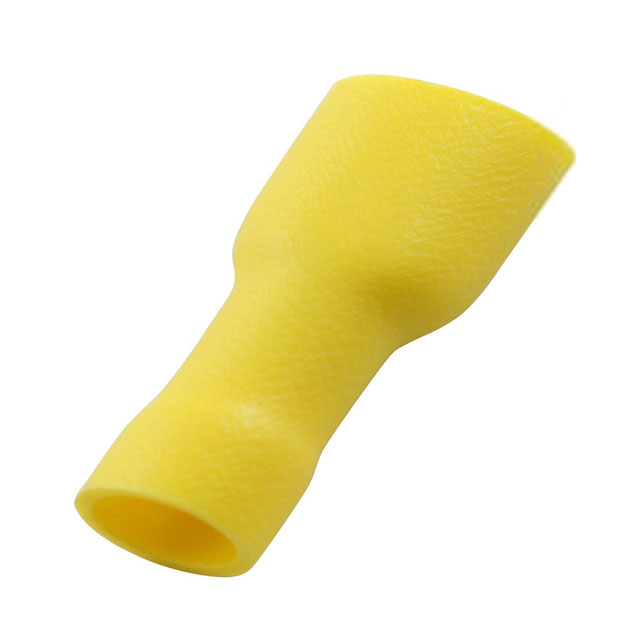

Panduit Corp EDV10-250FIB-Q			Brass	Fully Insulated	Butted Seam	0.81 mm	0.032 in	Free Hanging (In-Line)	10 AWG	12 AWG	24.38 mm	0.96 in	Standard	6.35 mm	0.25 in	Female	Yellow	Crimp	Tin	5.18 mm	0.204 in	0.26 in	6.6 mm

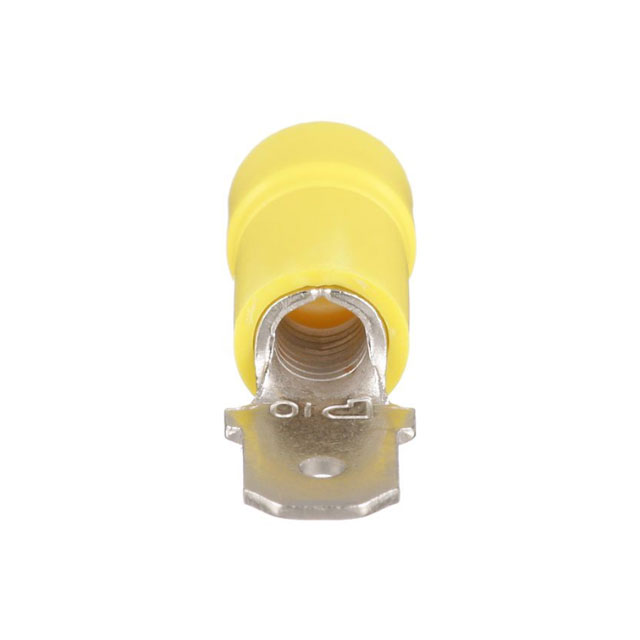

Panduit Corp EDV10-250M-Q	5.97 mm	0.235 in	Copper	Non-Mating End Insulated	Brazed Seam	0.81 mm	0.032 in	Free Hanging (In-Line)	10 AWG	12 AWG	24.89 mm	0.98 in	Standard	6.35 mm	0.25 in	Male	Yellow	Crimp	Nickel
Panduit Corp EDV10-11MB-Q	3.4 mm	0.13 in	Copper	Insulated	Serrated Termination				10 AWG	12 AWG							Yellow	Crimp	Tin					Vinyl	0.91 in	23.11 mm
