6609122 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

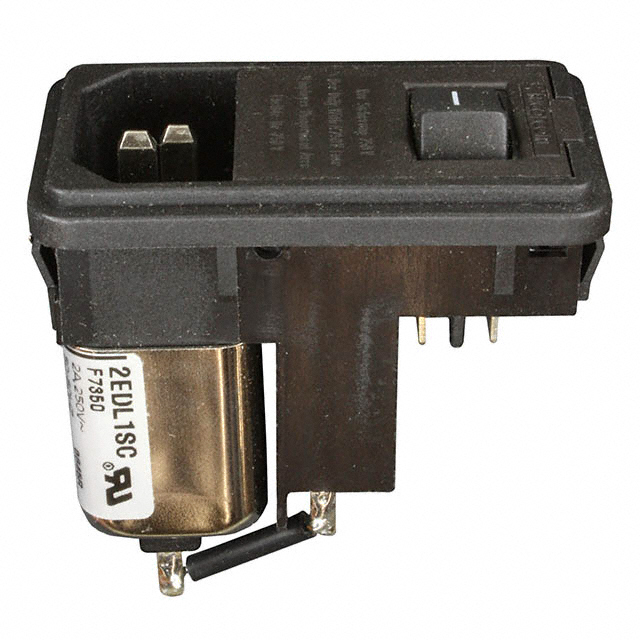

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Current Rating - Appliance Inlet | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Filter | Fuse Holder, Drawer | Filter Type | Approval Agency | Switch Features | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Mounting Type | Connector Type | Termination | Termination | Termination | Accomodates a Fuse | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | 2 A | 28.5 mm | 55.91 mm | 2 A | Fuse Holder | Filtered (EMI RFI) - Commercial | CSA SEMKO SEV UL VDE | Switch On-Off | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | Panel Mount Snap-In | Receptacle Male Blades - Module | Quick Connect | 2.8 mm | 0.11 " | 120 VAC | 250 VAC | IEC 320-C14 | |
 TE Connectivity Corcom Filters | 4 A | 28.5 mm | 55.91 mm | 4 A | Fuse Holder | Filtered (EMI RFI) - Commercial | CSA SEMKO SEV UL VDE | Switch On-Off | Flange Panel Mount | Receptacle Male Blades - Module | Quick Connect | 2.8 mm | 0.11 " | 120 VAC | 250 VAC | IEC 320-C14 |
