1554590 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

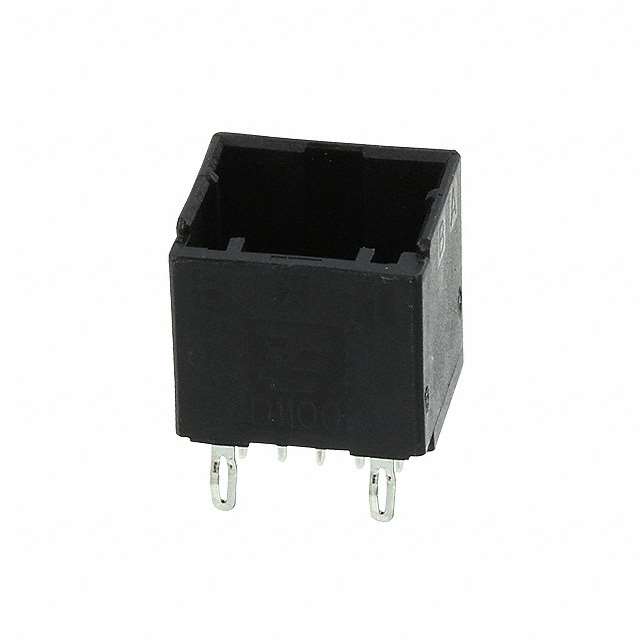

CONN HEADER VERT 10POS 2MM
| Part | Insulation Height | Insulation Height | Applications | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Shrouding | Voltage Rating | Contact Finish - Post | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions | Insulation Color | Style | Mounting Type | Insulation Material | Pitch - Mating [x] | Pitch - Mating [x] | Material Flammability Rating | Number of Positions Loaded | Contact Shape | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12.44 mm | 0.49 in | General Purpose Industrial | Header | 0.12 in | 3.05 mm | 3 A | Shrouded - 4 Wall | 125 VDC | Tin | 2 | 105 ░C | -55 °C | Copper Alloy | 10 | Black | Board to Board Cable | Through Hole | Glass Filled Polyester Thermoplastic | 0.079 in | 2 mm | UL94 V-0 | All | Square | Detent Lock | 3.3 mm | 0.13 in | Male Pin | Solder |
