280520 Series

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Shrouding	Mounting Type	Current Rating (Amps)	Connector Type	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions	Material Flammability Rating	Contact Type	Number of Positions Loaded	Style	Contact Material	Number of Rows	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating

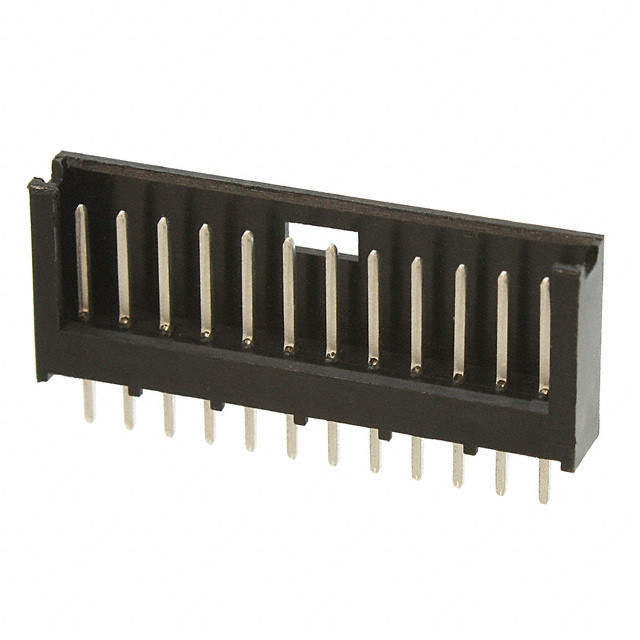

TE Connectivity Raychem Cable Protection 280520-1	Shrouded - 3 Wall	Through Hole	3 A	Header	Solder	Tin	0.1 in	2.54 mm	3 µm	118.1 µin	6.6 mm	0.26 in	14.3 mm	0.563 "	-40 °C	80 C	Black	40 V	3.5 mm	0.138 in	Square	12	UL94 V-0	Male Pin	All	Board to Board Cable	Brass	1	12.6 mm	0.496 in	Detent Lock	118.1 µin	3 µm	Thermoplastic
TE Connectivity Raychem Cable Protection 280520-2	Shrouded - 3 Wall	Through Hole	3 A	Header	Solder	Tin	0.1 in	2.54 mm	98.4 µin		6.6 mm	0.26 in	14.3 mm	0.563 "	-40 °C	80 C	Black	40 V	3.5 mm	0.138 in	Square	12	UL94 V-0	Male Pin	All	Board to Board Cable	Brass	1	12.6 mm	0.496 in	Detent Lock	0.38 µm		Thermoplastic	2.5 µm	Gold	15 µin
