HFW22R Series

Catalog

CONN FFC FPC BOTTOM 22POS 1MM RA

Part	Mating Cycles	Housing Color	Number of Positions	FFC, FCB Thickness	Housing Material	Contact Finish	Voltage Rating	Material Flammability Rating	Termination	Cable End Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Flat Flex Type	Pitch	Pitch	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Features
Amphenol ICC (FCI) HFW22R-1STE1H1LF	30	Black	22	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tin	100 V	UL94 V-0	Solder	Straight or Tapered	-55 C	105 ░C	Phosphor Bronze	Right Angle Surface Mount	FFC FPC	1 mm	0.039 in	Contacts Bottom	1.9 mm	0.075 in
Amphenol ICC (FCI) HFW22R-2STE9LF	30	Black	22	0.3 mm	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	100 V	UL94 V-0	Solder	Straight or Tapered	-55 C	105 ░C	Phosphor Bronze	Right Angle Surface Mount	FFC FPC	1 mm	0.039 in	Contacts Top	1.9 mm	0.075 in
Amphenol ICC (FCI) HFW22R-2STAE1LF	30	Black	22	0.3 mm	Glass Filled Nylon 6T Polyamide (PA6T)	Gold	100 V	UL94 V-0	Solder	Tapered	-55 C	105 ░C	Phosphor Bronze	Right Angle Surface Mount	FPC	1 mm	0.039 in	Contacts Top	1.9 mm	0.075 in	Solder Retention

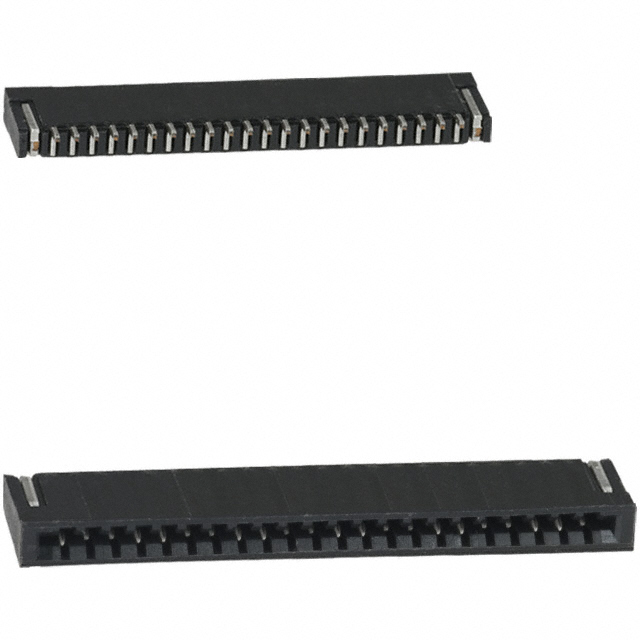

Amphenol ICC (FCI) HFW22R-1STE1LF	30	Black	22	0.3 mm	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	100 V	UL94 V-0	Solder	Straight or Tapered	-55 C	105 ░C	Phosphor Bronze	Right Angle Surface Mount	FFC FPC	1 mm	0.039 in	Contacts Bottom	1.9 mm	0.075 in
