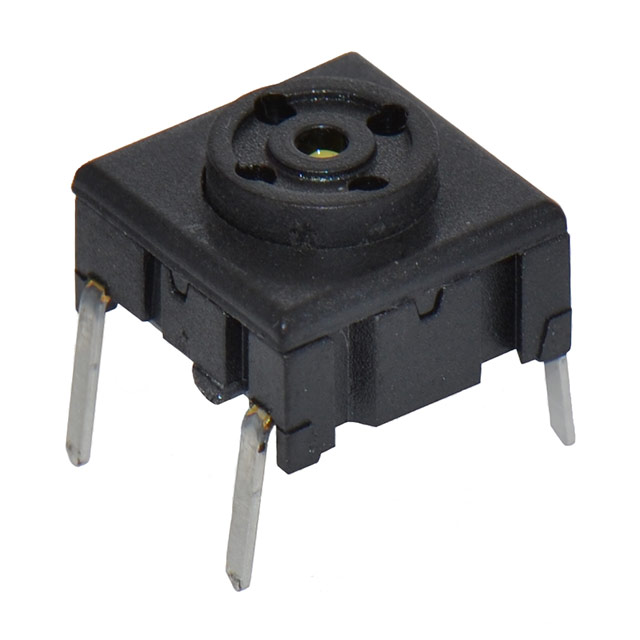

3ETH9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Mechanical Life	Actuator Material	Circuit	Operating Force	Actuator Height off PCB, Vertical [z]	Termination Style	Actuator Orientation	Mounting Type	Illumination	Contact Rating @ Voltage	Switch Function	Outline [x]	Outline [y]	Features	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Height off PCB, Vertical
MEC Switches 3ETH9-10.4	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	SPST-NO	300 gf	10.4 mm	PC Pin	Top Actuated	Through Hole	Non-Illuminated	0.05 A 24 VDC	Off-Mom	10.1 mm	10.1 mm	Sealed - Flux Protection	Standard	160 °C	-40 C	IP67 - Dust Tight Waterproof

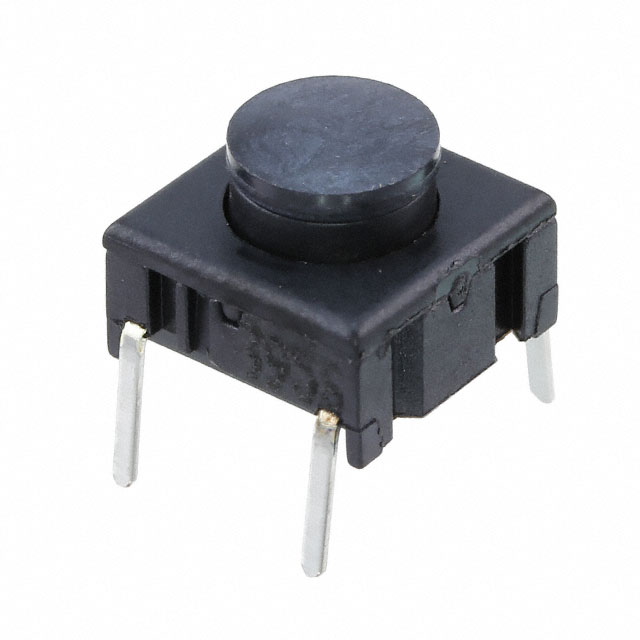

MEC Switches 3ETH9-08.0	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	SPST-NO	300 gf		PC Pin	Top Actuated	Through Hole	Non-Illuminated	0.05 A 24 VDC	Off-Mom	10.1 mm	10.1 mm	Sealed - Flux Protection	Standard	160 °C	-40 C	IP67 - Dust Tight Waterproof	8 mm
MEC Switches 3ETH9-15.0	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	SPST-NO	300 gf		PC Pin	Top Actuated	Through Hole	Non-Illuminated	0.05 A 24 VDC	Off-Mom	10.1 mm	10.1 mm	Sealed - Flux Protection	Standard	160 °C	-40 C	IP67 - Dust Tight Waterproof	15 mm

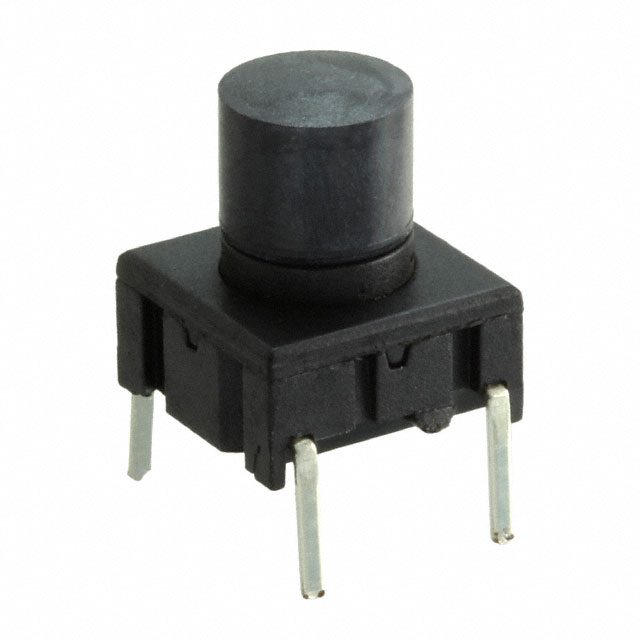

MEC Switches 3ETH9-12.0	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	SPST-NO	300 gf	12 mm	PC Pin	Top Actuated	Through Hole	Non-Illuminated	0.05 A 24 VDC	Off-Mom	10.1 mm	10.1 mm	Sealed - Flux Protection	Standard	160 °C	-40 C	IP67 - Dust Tight Waterproof

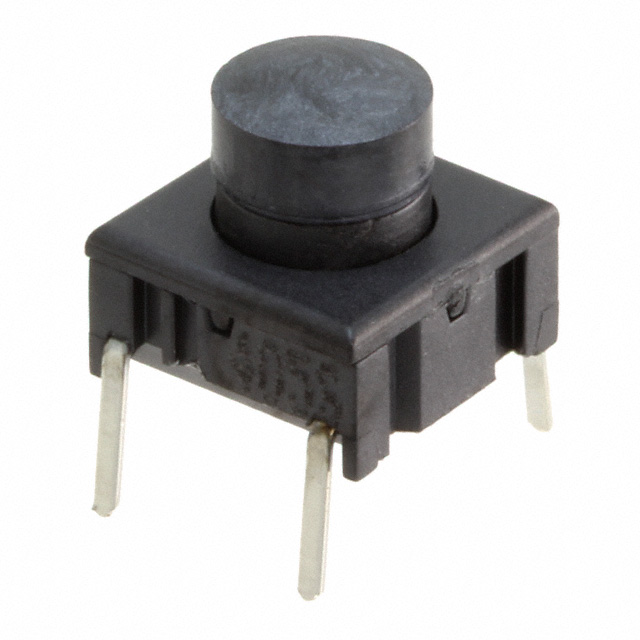

MEC Switches 3ETH9-09.5	1 mm	10000000 Cycles	Polybutylene Terephthalate (PBT)	SPST-NO	300 gf	9.5 mm	PC Pin	Top Actuated	Through Hole	Non-Illuminated	0.05 A 24 VDC	Off-Mom	10.1 mm	10.1 mm	Sealed - Flux Protection	Standard	160 °C	-40 C	IP67 - Dust Tight Waterproof
