470125CY Series

Catalog

CABLE 12CON 21AWG GRAY SHLD 100M

Part	Jacket Color	Number of Conductors	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Features	Conductor Strand	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Insulation	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Length [x]	Length [x]

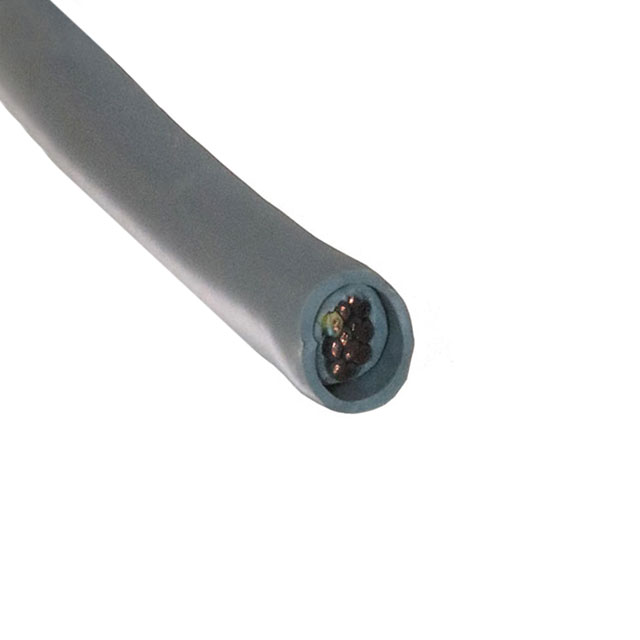

ALPHA WIRE 470125CY GE033	Gray	12	21 AWG	Copper Bare	Poly-Vinyl Chloride (PVC)	80 %	-40 °C	80 C	Braid	Chemical Resistant Oil Resistant UV Resistant	0.007 in 20	Copper Tinned	1.12 mm	0.0441 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	100 m	328.1 ft	0.472 in	11.99 mm	300 V
ALPHA WIRE 470125CY GE432	Gray	12	21 AWG	Copper Bare	Poly-Vinyl Chloride (PVC)	80 %	-40 °C	80 C	Braid	Chemical Resistant Oil Resistant UV Resistant	0.007 in 20	Copper Tinned	1.12 mm	0.0441 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	20 m 30 m 984.3 ft	65.62 ft 98.43 ft	0.472 in	11.99 mm	300 V	300 m	1 m	3.28 ft

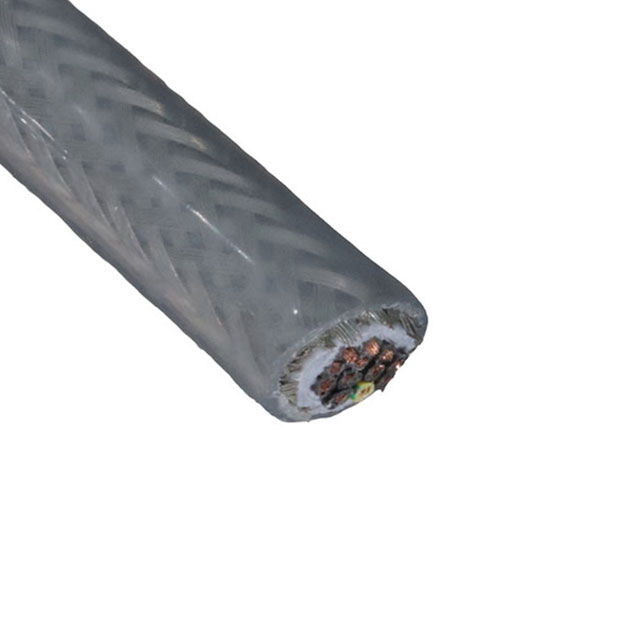

ALPHA WIRE 470125CY CL432	Clear	12	21 AWG	Copper Bare	Poly-Vinyl Chloride (PVC)	80 %	-40 °C	80 C	Braid	Chemical Resistant Oil Resistant UV Resistant	0.007 in 20	Copper Tinned	1.12 mm	0.0441 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	10 m 20 m 30 m 984.3 ft	32.81 ft 65.62 ft 98.43 ft	0.472 in	11.99 mm	300 V	300 m	1 m	3.28 ft
ALPHA WIRE 470125CY GE321	Gray	12	21 AWG	Copper Bare	Poly-Vinyl Chloride (PVC)	80 %	-40 °C	80 C	Braid	Chemical Resistant Oil Resistant UV Resistant	0.007 in 20	Copper Tinned	1.12 mm	0.0441 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	50 m	164 ft	0.472 in	11.99 mm	300 V
