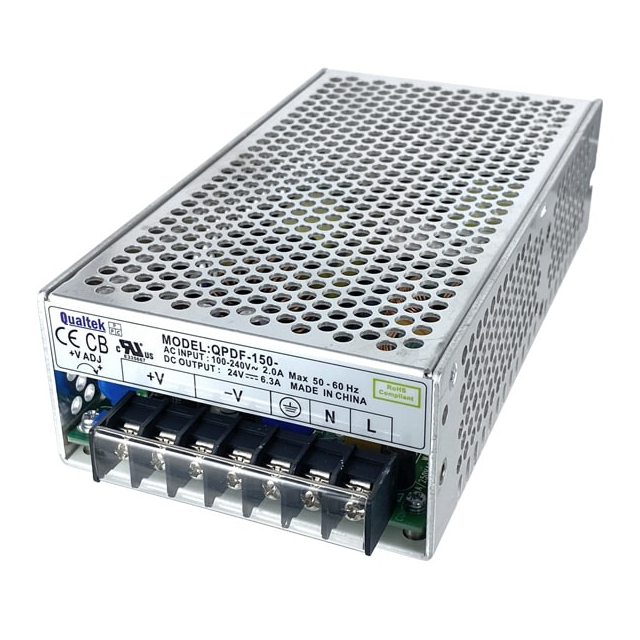

QPDF-150 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 15V 150W
| Part | Voltage - Isolation | Type | Mounting Type | Number of Outputs | Current - Output 1 | Features | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension | Size / Dimension [z] | Applications | Power (Watts) | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 3000 V | Enclosed | Chassis Mount | 1 | 10 A | Adjustable Output DC Input Capable PFC Universal Input | 86 % | 7.64 in | 3.9 " | 50 mm 99 mm 194 mm | 1.97 " | ITE (Commercial) | 150 W | CB CE cURus | 70 °C | -25 °C | 15 V | ||||||
 Qualtek | 3000 V | Enclosed | Chassis Mount | 1 | 4.1 A | Adjustable Output DC Input Capable PFC Universal Input | 86 % | 7.05 " | 3.9 " | 1.97 " | ITE (Commercial) | 150 W | CB CE cURus | 70 °C | -25 °C | 264 VAC | 90 VAC | 50 mm | 179 mm | 99 mm | 36 V | ||
Qualtek | 3000 V | Enclosed | Chassis Mount | 1 | 3.2 A | Adjustable Output DC Input Capable PFC Universal Input | 87 % | 7.64 in | 3.9 " | 50 mm 99 mm 194 mm | 1.97 " | ITE (Commercial) | 150 W | CB CE cURus | 70 °C | -25 °C | 48 V | ||||||
Qualtek | 3000 V | Enclosed | Chassis Mount | 1 | 6.3 A | Adjustable Output DC Input Capable PFC Universal Input | 86 % | 7.64 in | 3.9 " | 50 mm 99 mm 194 mm | 1.97 " | ITE (Commercial) | 150 W | CB CE cURus | 70 °C | -25 °C | 24 V |
