S4B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

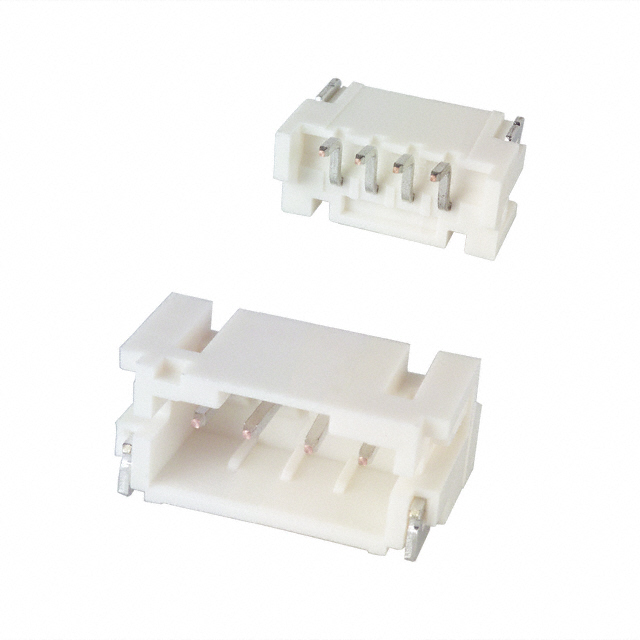

CONN HEADER SMD R/A 4POS 2MM
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Style | Material Flammability Rating | Insulation Material | Number of Positions | Fastening Type | Contact Shape | Contact Material | Shrouding | Insulation Height | Insulation Height | Voltage Rating | Contact Finish - Post | Number of Rows | Mounting Type | Contact Type | Current Rating (Amps) | Insulation Color | Termination | Contact Length - Mating | Contact Length - Mating | Features | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | 85 °C | -25 °C | 0.079 " | 2 mm | Board to Cable/Wire | UL94 V-0 | Nylon 6T Polyamide (PA6T) | 4 | Detent Lock | Square | Copper Alloy | Shrouded - 4 Wall | 0.217 in | 5.51 mm | 100 V | Tin | 1 | Right Angle Surface Mount | Male Pin | 2 A | Natural | Solder | 0.13 in | 3.3 mm | Solder Retention | All |
