A3AA-91K Series

Catalog

SWITCH PUSH SPST-NO 6A 125V

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating - DC	Termination Style	Ingress Protection	Color - Actuator/Cap	Mounting Type	Actuator Type	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Circuit	Actuator Marking
Omron Automation and Safety A3AA-91K1-00G	50000 Cycles	1000000 Cycles	55 °C	-10 °C	Standard	30 V	PC Pin	IP00	Green	Through Hole	Button Square	125 V	Off-Mom	4 A 6 A	SPST-NO	No Marking
Omron Automation and Safety A3AA-91K1-00D	50000 Cycles	1000000 Cycles	55 °C	-10 °C	Standard	30 V	PC Pin	IP00	Dark Gray	Through Hole	Button Square	125 V	Off-Mom	4 A 6 A	SPST-NO	No Marking

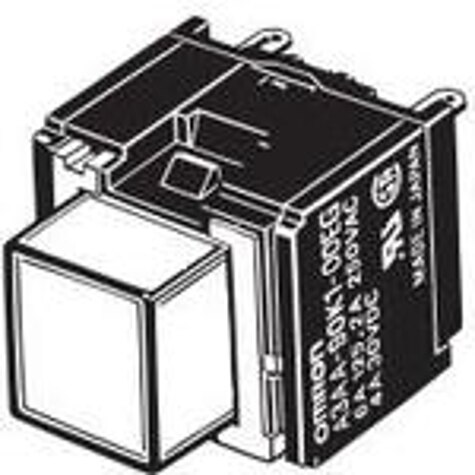

Omron Automation and Safety A3AA-91K1-00A	50000 Cycles	1000000 Cycles	55 °C	-10 °C	Standard	30 V	PC Pin	IP00	Blue	Through Hole	Button Square	125 V	Off-Mom	4 A 6 A	SPST-NO	No Marking
Omron Automation and Safety A3AA-91K1-00R	50000 Cycles	1000000 Cycles	55 °C	-10 °C	Standard	30 V	PC Pin	IP00	Red	Through Hole	Button Square	125 V	Off-Mom	4 A 6 A	SPST-NO	No Marking

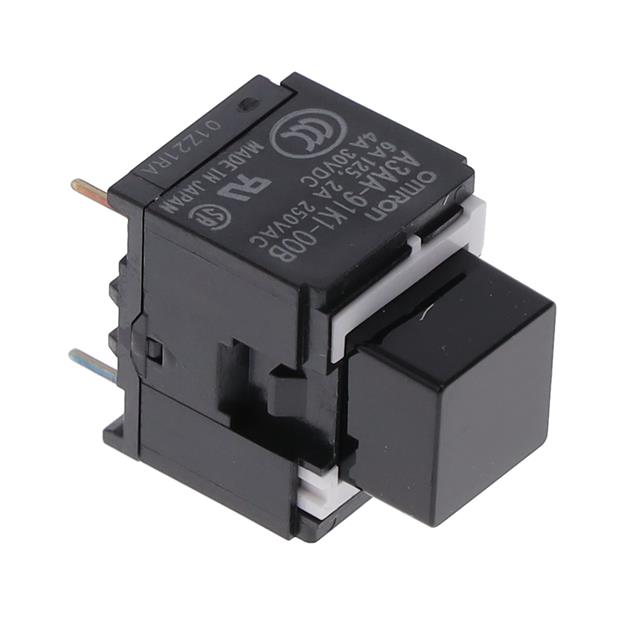

Omron Automation and Safety A3AA-91K1-00B	50000 Cycles	1000000 Cycles	55 °C	-10 °C	Standard	30 V	PC Pin	IP00	Black	Through Hole	Button Square	125 V	Off-Mom	4 A 6 A	SPST-NO	No Marking
