Schaffner FN2210 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 1.5KVDC 1KA CHASSIS

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current	Termination Style	Approval Agency	Frequency - Operating	Filter Type	Configuration	Voltage - Rated DC	Voltage - Rated DC
TE Connectivity AMP Connectors FN2210HV-1000-99-R9	Chassis Mount	0 °C	100 °C	Inverters Power Drive Systems	1 kA	Terminal Post	CE cURus	DC	DC	Single Stage	1.5 kV	1500 V

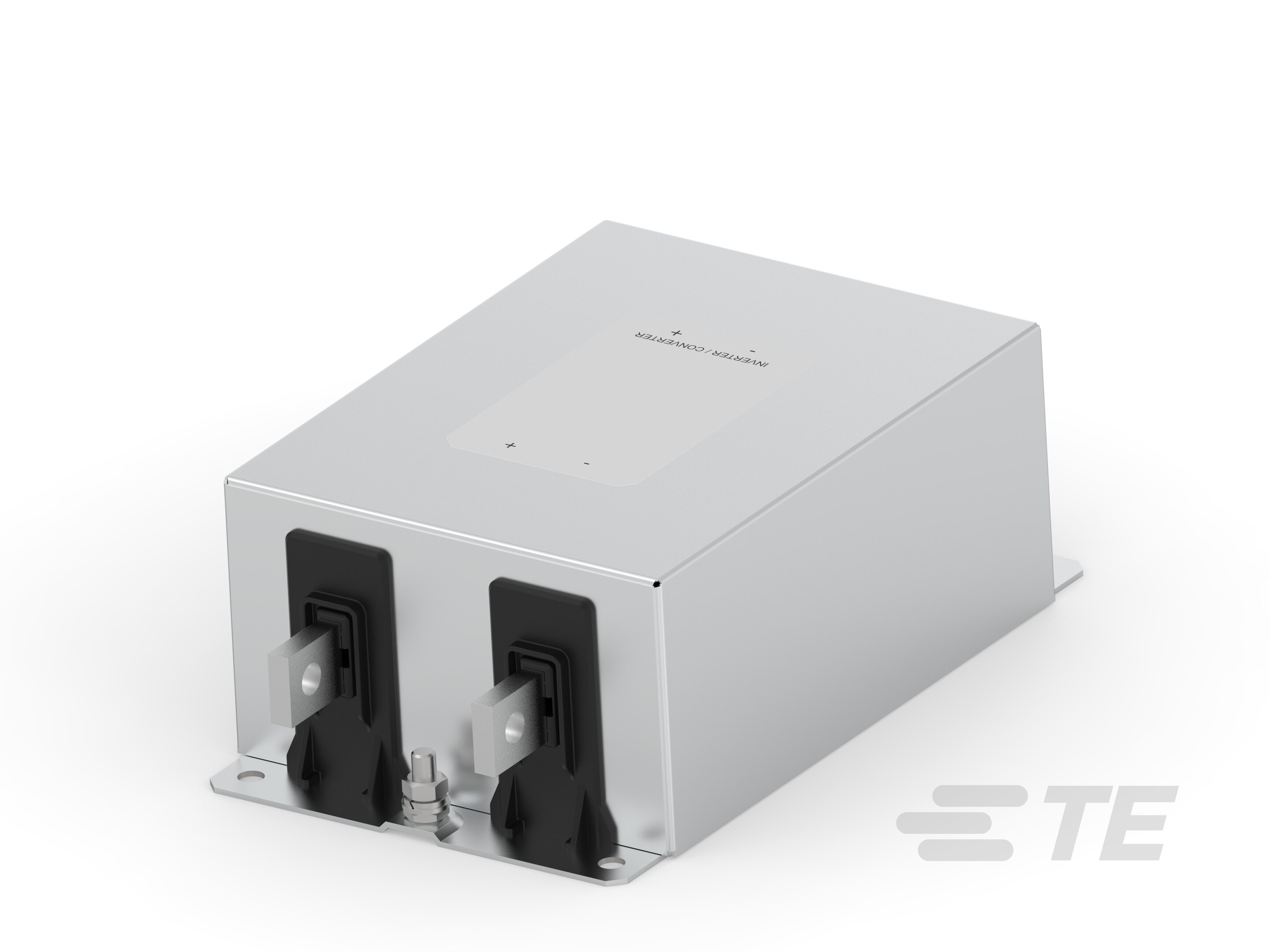

TE Connectivity AMP Connectors FN2210HV-600-99-R9	Chassis Mount	0 °C	100 °C	Inverters Power Drive Systems	600 A	Terminal Post	CE cURus	DC	DC	Single Stage	1.5 kV	1500 V
TE Connectivity AMP Connectors FN2210HV-1000-99-R9	Chassis Mount	0 °C	100 °C	Inverters Power Drive Systems	1 kA	Terminal Post	CE cURus	DC	DC	Single Stage	1.5 kV	1500 V
TE Connectivity AMP Connectors FN2210-400-99-R5	Chassis Mount	-40 C	100 °C	Inverters Power Drive Systems	400 A	Terminal Post	CE cURus	DC	DC	Single Stage	1 kV	1000 V
TE Connectivity AMP Connectors FN2210-2300-99-R5	Chassis Mount	-40 C	100 °C	Inverters Power Drive Systems	2.3 kA	Terminal Post	CE cURus	DC	DC	Single Stage	1 kV	1000 V
TE Connectivity AMP Connectors FN2210HV-1500-99-R9	Chassis Mount	0 °C	100 °C	Inverters Power Drive Systems	1500 A	Terminal Post	CE cURus	DC	DC	Single Stage	1.5 kV	1500 V
TE Connectivity AMP Connectors FN2210-400-99-R5	Chassis Mount	-40 C	100 °C	Inverters Power Drive Systems	400 A	Terminal Post	CE cURus	DC	DC	Single Stage	1 kV	1000 V
TE Connectivity AMP Connectors FN2210HV-250-99-R9	Chassis Mount	0 °C	100 °C	Inverters Power Drive Systems	250 A	Terminal Post	CE cURus	DC	DC	Single Stage	1.5 kV	1500 V

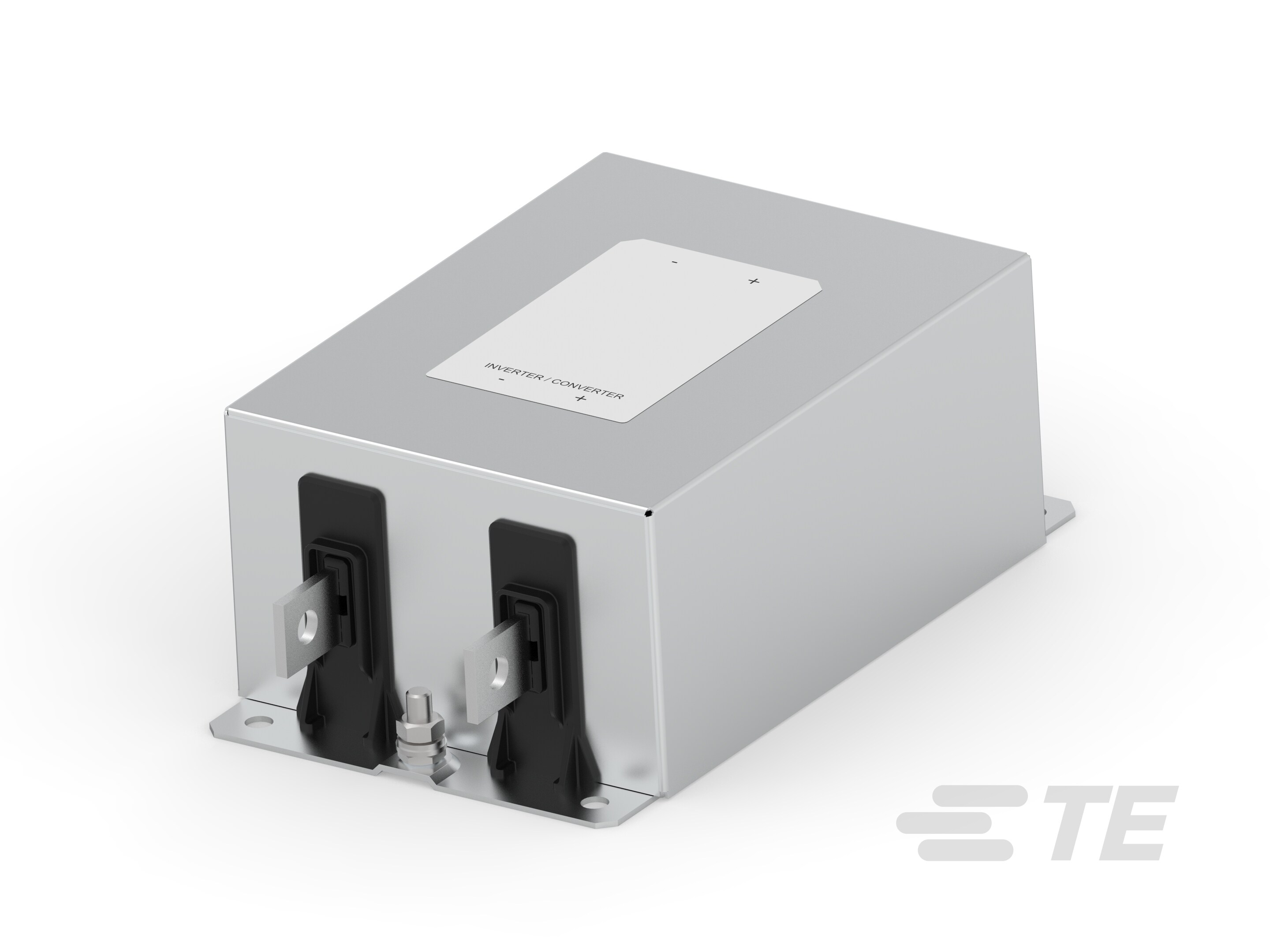

TE Connectivity AMP Connectors FN2210HV-400-99-R9	Chassis Mount	0 °C	100 °C	Inverters Power Drive Systems	400 A	Terminal Post	CE cURus	DC	DC	Single Stage	1.5 kV	1500 V
TE Connectivity AMP Connectors FN2210-1000-99-R5	Chassis Mount	-40 C	100 °C	Inverters Power Drive Systems	1 kA	Terminal Post	CE cURus	DC	DC	Single Stage	1 kV	1000 V
