892-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 11POS 0.100
| Part | Material - Insulation | Termination Rows | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Pitch | Pitch | Gender | Number of Positions/Bay/Row | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

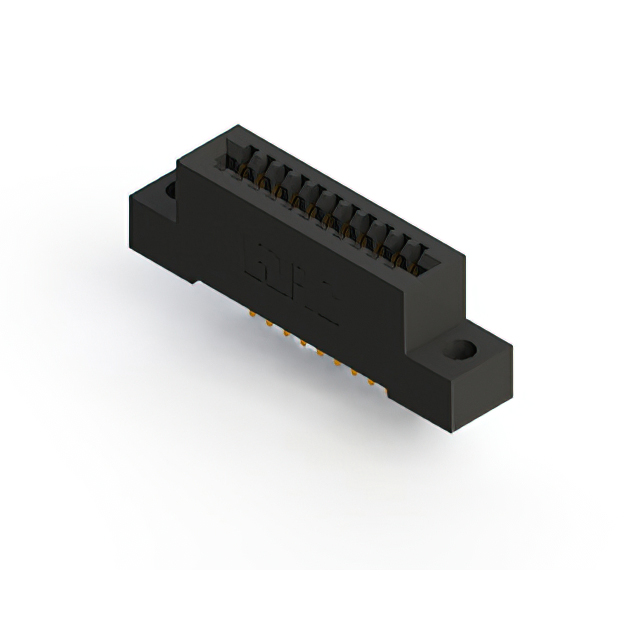

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Wire Wrap | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Right Angle Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Right Angle Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Right Angle Through Hole | Gold | 0.25 Ám | 10 Áin | 1 | Single | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Non Specified - Single Edge | 125 °C | -40 C | Copper Alloy | Black | 0.1 " | 2.54 mm | Female | 11 | 11 |
