M50-480 Series

Catalog

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 30 CONTACTS, THROUGH HOLE, ARCHER M50 SERIES

Part	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Mounting Type	Shrouding	Contact Material	Contact Shape	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions Loaded	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish - Post	Contact Type	Material Flammability Rating	Number of Positions	Insulation Color	Insulation Height	Insulation Height

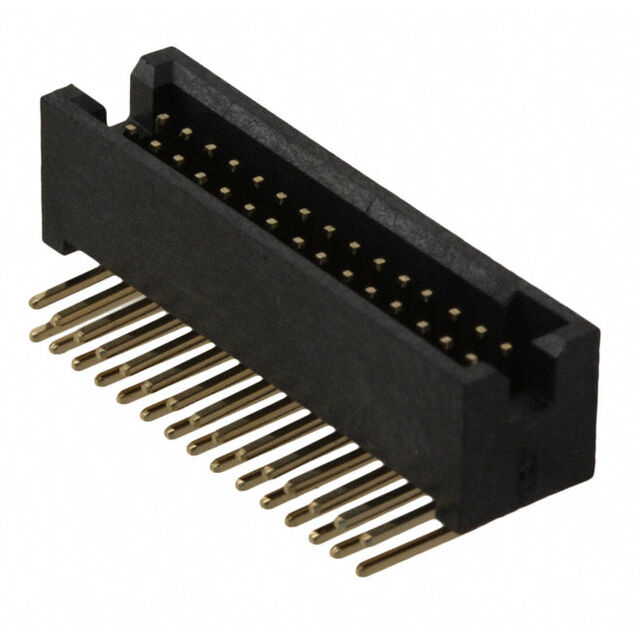

Harwin Inc. M50-4801545	Gold	Header	1 A	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	Square	Push-Pull	0.05 in	1.27 mm	Solder	All	2	1.27 mm	0.05 in	-40 C	105 ░C	0.083 in	2.11 mm	Liquid Crystal Polymer (LCP)	Gold	Male Pin	UL94 V-0	30	Black	5.65 mm	0.222 in
Harwin Inc. M50-4800545	Gold	Header	1 A	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	Square	Push-Pull	0.05 in	1.27 mm	Solder	All	2	1.27 mm	0.05 in	-40 C	105 ░C	0.083 in	2.11 mm	Liquid Crystal Polymer (LCP)	Gold	Male Pin	UL94 V-0	10	Black	5.65 mm	0.222 in

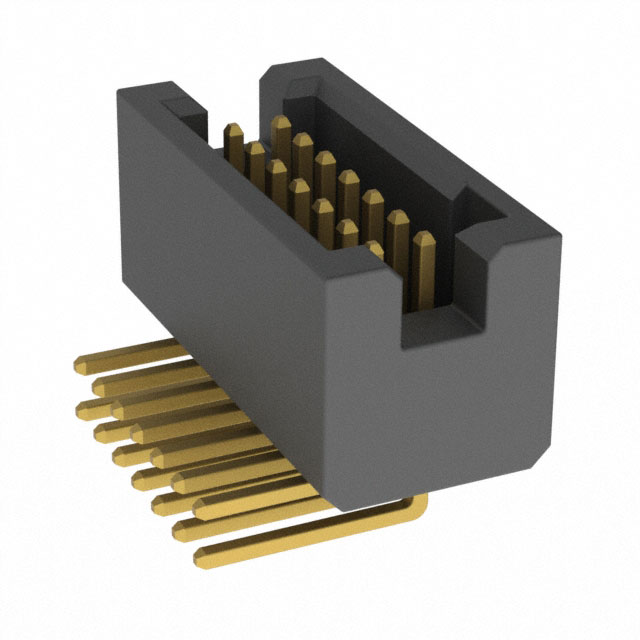

Harwin Inc. M50-4800745	Gold	Header	1 A	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	Square	Push-Pull	0.05 in	1.27 mm	Solder	All	2	1.27 mm	0.05 in	-40 C	105 ░C	0.083 in	2.11 mm	Liquid Crystal Polymer (LCP)	Gold	Male Pin	UL94 V-0	14	Black	5.65 mm	0.222 in
Harwin Inc. M50-4802545	Gold	Header	1 A	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	Square	Push-Pull	0.05 in	1.27 mm	Solder	All	2	1.27 mm	0.05 in	-40 C	105 ░C	0.083 in	2.11 mm	Liquid Crystal Polymer (LCP)	Gold	Male Pin	UL94 V-0	50	Black	5.65 mm	0.222 in

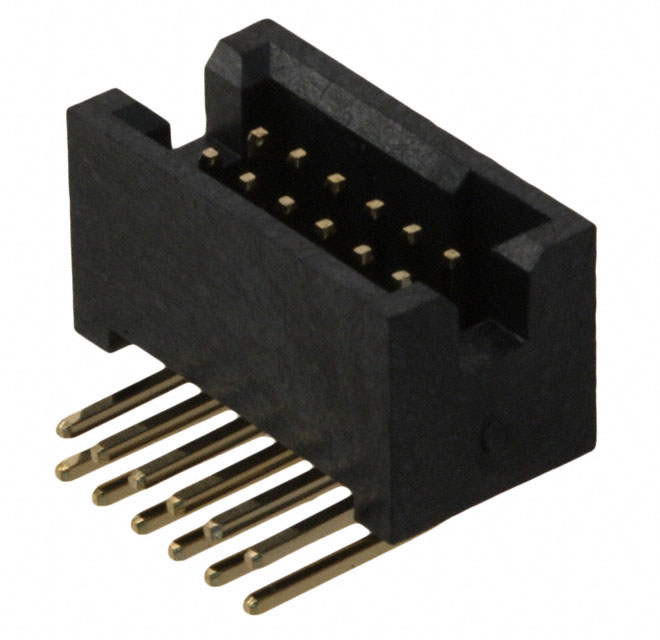

Harwin Inc. M50-4800645	Gold	Header	1 A	Right Angle Through Hole	Shrouded - 4 Wall	Copper Alloy	Square	Push-Pull	0.05 in	1.27 mm	Solder	All	2	1.27 mm	0.05 in	-40 C	105 ░C	0.083 in	2.11 mm	Liquid Crystal Polymer (LCP)	Gold	Male Pin	UL94 V-0	12	Black	5.65 mm	0.222 in
