IL256 Series

Catalog

SWITCH TOGGLE 4PDT 15A 125V

Part	Actuator Material	Electrical Life	Mounting Type	Circuit	Actuator Type	Actuator Length [x]	Operating Temperature [Max]	Voltage Rating - AC	Switch Function	Bushing Thread	Current Rating (Amps)	Illumination	Termination Style	Panel Cutout Dimensions [diameter]
Carling Technologies IL256-52/HDW BULK	Brass Nickel Plated	50000 Cycles	Panel Mount	4PDT	Standard Round	10.31 mm	85 °C	125 V	On-On	15/32-32	15 A	Non-Illuminated	PC Pin	12.7 mm
Carling Technologies IL256-73	Brass Nickel Plated	50000 Cycles	Panel Mount	4PDT	Standard Round	17.45 mm	85 °C	125 V	On-On	15/32-32	15 A	Non-Illuminated	PC Pin	12.7 mm

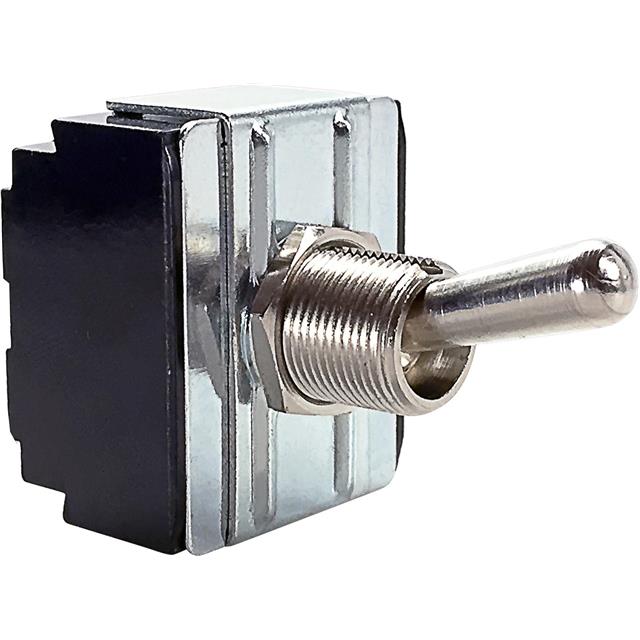

Carling Technologies IL256-63	Brass Nickel Plated	50000 Cycles	Panel Mount	4PDT	Standard Round		85 °C	125 V	On-On	15/32-32	15 A	Non-Illuminated	PC Pin	12.7 mm
Carling Technologies IL256-68	Brass Nickel Plated	50000 Cycles	Panel Mount	4PDT	Standard Round		85 °C	125 V	On-On	15/32-32	15 A	Non-Illuminated	PC Pin	12.7 mm
