CG060 Series
Manufacturer: Bourns Inc.
Beta
⌘K

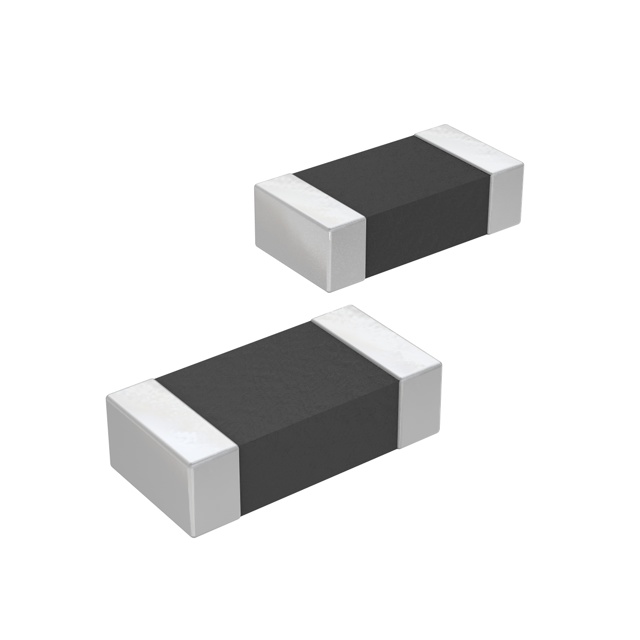

VARISTOR 0603
| Part | Maximum DC Volts [Max] | Mounting Type | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Capacitance @ Frequency | Number of Circuits | Varistor Voltage (Min) [Min] | Varistor Voltage (Typ) | Maximum AC Volts [Max] | Energy | Varistor Voltage (Max) [Max] | Current - Surge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 3.3 V | MLCV Surface Mount | 1608 Metric | 0603 | 85 C | -40 ¯C | 1 MHz 5 pF | 1 | ||||||
 Bourns Inc. | 12 V | MLCV Surface Mount | 1608 Metric | 0603 | 85 C | -40 ¯C | 1 MHz 5 pF | 1 | ||||||
Bourns Inc. | 12 V | MLCV Surface Mount | 1608 Metric | 0603 | 125 °C | -40 °C | 0.5 pF 1 MHz | 1 | ||||||
Bourns Inc. | 12 V | MLCV Surface Mount | 1608 Metric | 0603 | 85 C | -40 ¯C | 1 MHz 5 pF | 1 | ||||||
Bourns Inc. | 12 V | MLCV Surface Mount | 1608 Metric | 0603 | 125 °C | -40 °C | 1 MHz 5 pF | 1 | ||||||
 Bourns Inc. | 3.3 V | MLCV Surface Mount | 1608 Metric | 0603 | 125 °C | -40 °C | 1 MHz 5 pF | 1 | ||||||
Bourns Inc. | 24 V | MLCV Surface Mount | 1608 Metric | 0603 | 125 °C | -40 °C | 0.5 pF 1 MHz | 1 | ||||||
 Bourns Inc. | 5.5 V | MLCV Surface Mount | 1608 Metric | 0603 | 125 °C | -55 °C | 1 MHz 270 pF | 1 | 8 V | 13 V | 4 V | 0.1 J | 18 V | 30 A |
 Bourns Inc. | 5 V | MLCV Surface Mount | 1608 Metric | 0603 | 85 C | -40 ¯C | 1 MHz 5 pF | 1 |
