726-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Pitch	Pitch	Contact Material	Gender	Read Out	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows [custom]	Card Type	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Termination
EDAC Inc. 726-092-527-201	Polyester Thermoplastic	2	92	3.18 mm	0.125 in	Copper Alloy	Female	Dual	Black	Gold	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	2	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	Press-Fit
EDAC Inc. 726-092-545-201	Polyester Thermoplastic	2	92	3.18 mm	0.125 in	Copper Alloy	Female	Dual	Black	Gold	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	2	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	Press-Fit Wire Wrap
EDAC Inc. 726-092-540-201	Polyester Thermoplastic	2	92	3.18 mm	0.125 in	Copper Alloy	Female	Dual	Black	Gold	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	2	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	Press-Fit Wire Wrap
EDAC Inc. 726-092-525-201	Polyester Thermoplastic	2	92	3.18 mm	0.125 in	Copper Alloy	Female	Dual	Black	Gold	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	2	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	Press-Fit
EDAC Inc. 726-092-541-201	Polyester Thermoplastic	2	92	3.18 mm	0.125 in	Copper Alloy	Female	Dual	Black	Gold	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	2	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	Press-Fit Wire Wrap

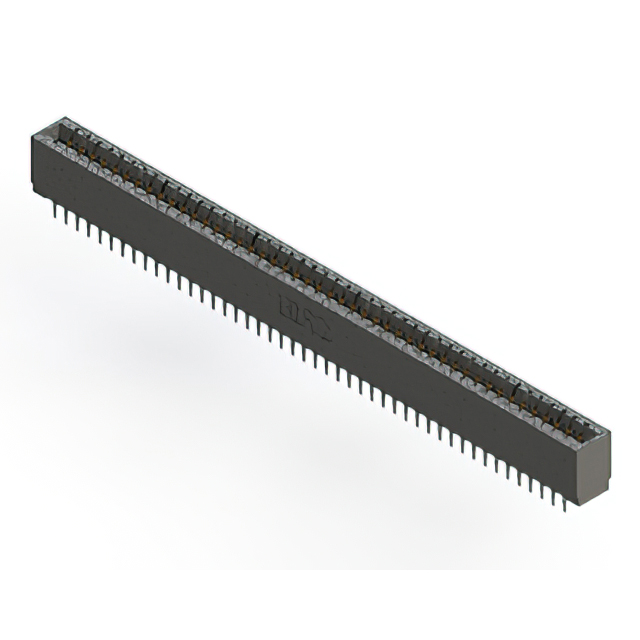

EDAC Inc. 726-092-520-201	Polyester Thermoplastic	2	92	3.18 mm	0.125 in	Copper Alloy	Female	Dual	Black	Gold	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	2	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	Press-Fit
