L128 Series

Manufacturer: Lumileds

Catalog

Catalog

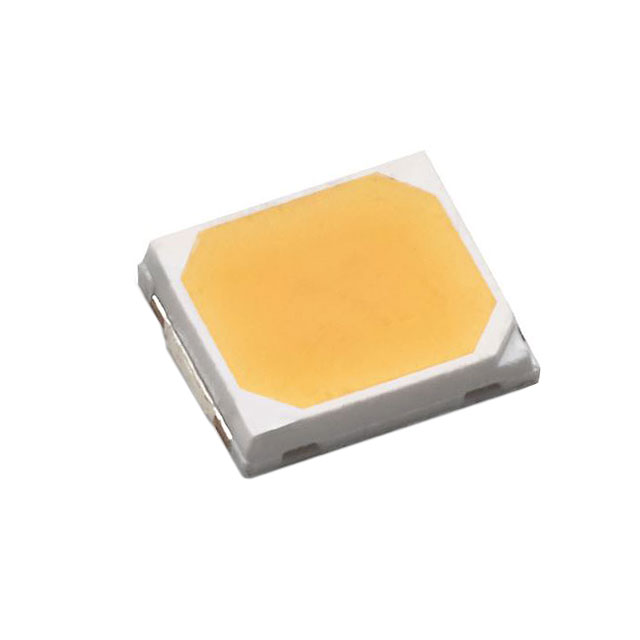

LED LUXEON WARM WHT 3500K 1411

...

Part	Thermal Resistance of Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Package / Case	Package / Case	CRI (Color Rendering Index)	Current - Max [Max]	Supplier Device Package	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Flux @ 25°C, Current - Test	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature - Test	Wavelength	Luminous Flux @ Current/Temperature
Lumileds L128-3580SB35B00A1	18 °C/W	0.031 in	0.8 mm	Surface Mount	3528 Metric	1411	80	150 mA	1411	120 °	6.05 V	120 mA	115 lm	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	3500 K	158 lm/W
Lumileds L128-3580HA35000B4	10 °C/W			Surface Mount	3528 Metric	1411	80	480 mA	1411	120 °	2.71 V	65 mA	36 lm	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	3500 K	207 lm/W	0.7 mm	0.028 "
Lumileds L128-GRN1003500000				Surface Mount	3528 Metric	1411		240 mA	1411	130 °	3.15 V	120 mA		Green	3.5 mm	0.11 "	2.8 mm	0.138 in			0.75 mm	0.03 "	25 °C	530 nm	47 lm
Lumileds L128-2790CB3500003	11 °C/W			Surface Mount	3528 Metric	1411	90	240 mA	1411	120 °	6 V	120 mA	96 lm	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	2700 K	134 lm/W	0.75 mm	0.03 "
Lumileds L128-5090SA35A00B1	10 °C/W	0.031 in	0.8 mm	Surface Mount	3528 Metric	1411	90	300 mA	1411	120 °	2.71 V	65 mA	32 lm	Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	5000 K	180 lm/W
Lumileds L128-3080EC3500001	15 °C/W			Surface Mount	3528 Metric	1411	80	150 mA	1411	120 °	9.1 V	60 mA	85 lm	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	3000 K	159 lm/W	0.75 mm	0.03 "
Lumileds L128-3590NA3500001	14 °C/W			Surface Mount	3528 Metric	1411	90	300 mA	1411	120 °	2.75 V	65 mA	30 lm	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	3500 K	169 lm/W	0.75 mm	0.03 "
Lumileds L128-3580EB3500006	20 °C/W			Surface Mount	3528 Metric	1411	80	150 mA	1411	120 °	6.1 V	60 mA	56 lm	Warm White	3.5 mm	0.11 "	2.8 mm	0.138 in	3500 K	151 lm/W	0.75 mm	0.03 "
Lumileds L128-5790EA3500005	39 °C/W			Surface Mount	3528 Metric	1411	90	150 mA	1411	120 °	2.9 V	60 mA	26 lm	Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	5700 K	151 lm/W	0.75 mm	0.03 "
Lumileds L128-5780EB3500006	20 °C/W			Surface Mount	3528 Metric	1411	80	150 mA	1411	120 °	6.1 V	60 mA	59 lm	Cool White	3.5 mm	0.11 "	2.8 mm	0.138 in	5700 K	159 lm/W	0.75 mm	0.03 "
