AWHW 64 Series

Catalog

CONN HEADER R/A 64POS 2.54MM

Part	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Fastening Type	Number of Rows [custom]	Style	Shrouding	Number of Positions	Material Flammability Rating	Contact Shape	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Connector Type	Termination	Insulation Material	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Features	Contact Material	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height

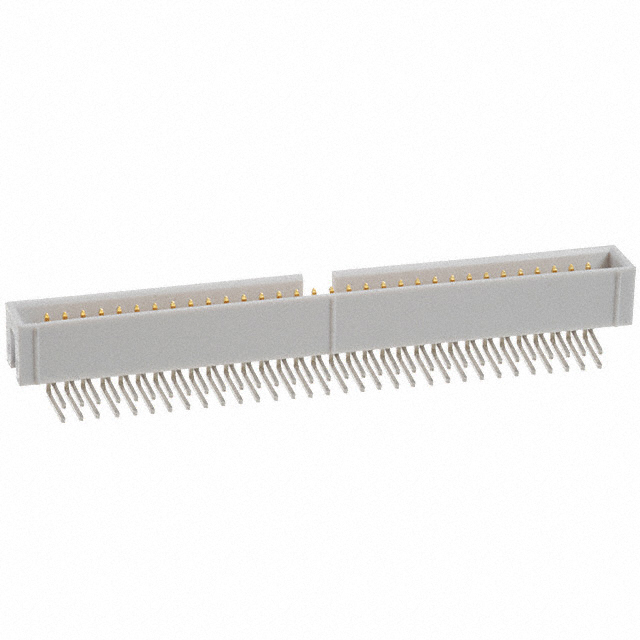

Assmann WSW Components AWHW 64A-0202-T	Right Angle Through Hole	Male Pin	0.1 "	2.54 mm	-40 C	105 ░C	Gray	Push-Pull	2	Board to Cable/Wire	Shrouded - 4 Wall	64	UL94 V-0	Square	Tin	0.224 in	5.7 mm	3 A	Flash	Header	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.352 in	8.95 mm	All	Keying Slot	Brass	0.124 in	3.15 mm	Gold	0.1 in	2.54 mm
Assmann WSW Components AWHW 64G-SMD	Surface Mount	Male Pin	0.1 "	2.54 mm	-40 C	105 ░C	Black	Push-Pull	2	Board to Cable/Wire	Shrouded - 4 Wall	64	UL94 V-0	Square		0.232 in	5.9 mm	3 A	Flash	Header	Solder	Glass Filled Nylon 9T Polyamide (PA9T)			All	Keying Slot Pick and Place	Brass			Gold	0.1 in	2.54 mm	0.354 in	9 mm
Assmann WSW Components AWHW 64G-0202-LC	Through Hole	Male Pin	0.1 "	2.54 mm	-40 C	105 ░C	Black	Push-Pull	2	Board to Cable/Wire	Shrouded - 4 Wall	64	UL94 V-0	Square		0.224 in	5.7 mm	3 A	Flash	Header	Solder	Polybutylene Terephthalate (PBT) Glass Filled			All	Keying Slot	Brass	0.13 "	3.3 mm	Gold	0.1 in	2.54 mm	0.354 in	9 mm
Assmann WSW Components AWHW 64G-SMD-200
