043255 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 4 POS 6.35MM SOLDER ST THRU-HOLE MLX TRAY

Part	Insulation Color	Number of Rows	Contact Finish - Post	Number of Positions	Applications	Shrouding	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Material	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Shape	Features	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post

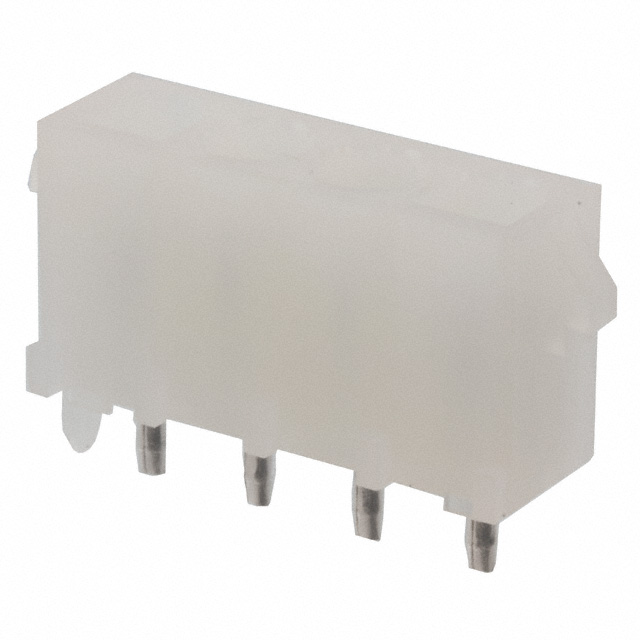

Molex 0432550129	Natural	1	Tin	4	Automotive General Purpose Industrial	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polyamide (PA66) Nylon 6/6	UL94 V-2	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Male Pin

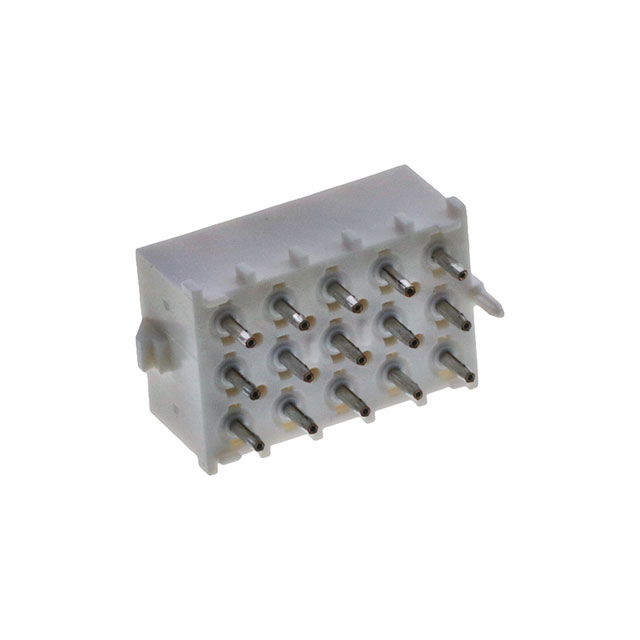

Molex 0432550107	Natural	3	Tin	15	Automotive General Purpose Industrial	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polybutylene Terephthalate (PBT)	UL94 V-0	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Male Pin	0.25 in	6.35 mm
Molex 0432550123	Natural	1	Tin		Automotive General Purpose Industrial Telecommunications		6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polyamide (PA66) Nylon 6/6	UL94 V-2	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Female Socket			600 V	105 ░C	-55 °C	Phosphor Bronze	137.8 Áin	3.5 Ám
Molex 0432550115

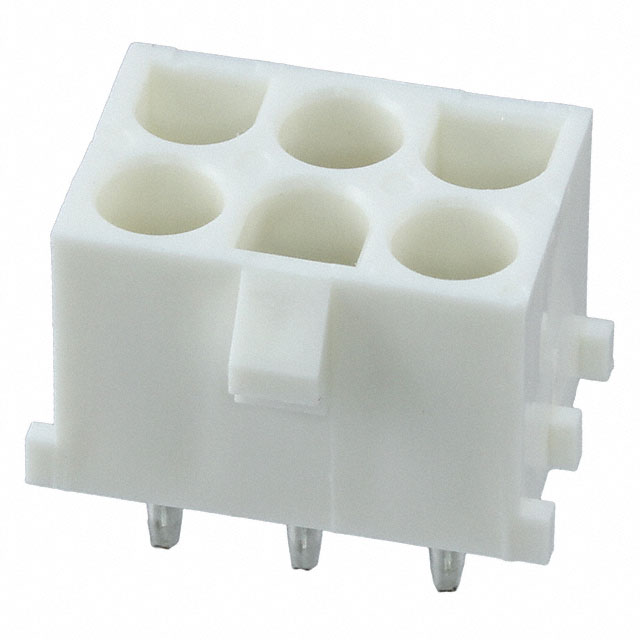

Molex 0432550083	Natural	2	Tin	6	Automotive General Purpose Industrial	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polybutylene Terephthalate (PBT)	UL94 V-0	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Male Pin	0.25 in	6.35 mm

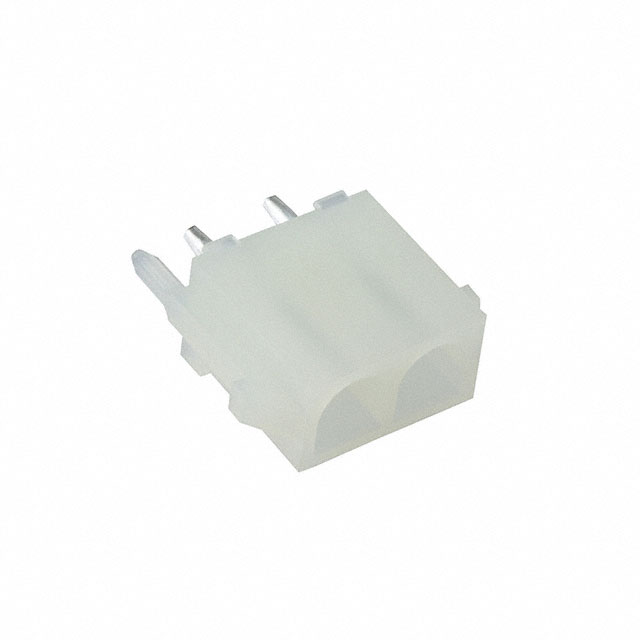

Molex 0432550113	Natural	1	Tin	2	Automotive General Purpose Industrial	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polyamide (PA66) Nylon 6/6	UL94 V-2	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Male Pin

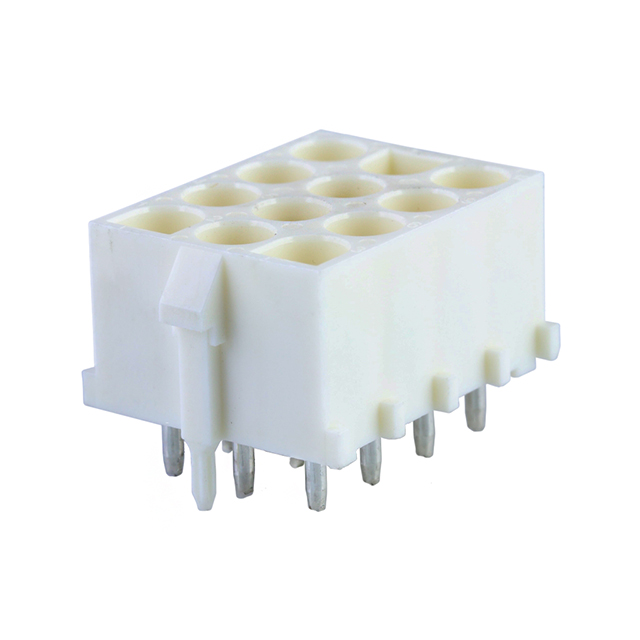

Molex 0432550099	Natural	3	Tin	12	Automotive General Purpose Industrial	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polybutylene Terephthalate (PBT)	UL94 V-0	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Male Pin	0.25 in	6.35 mm

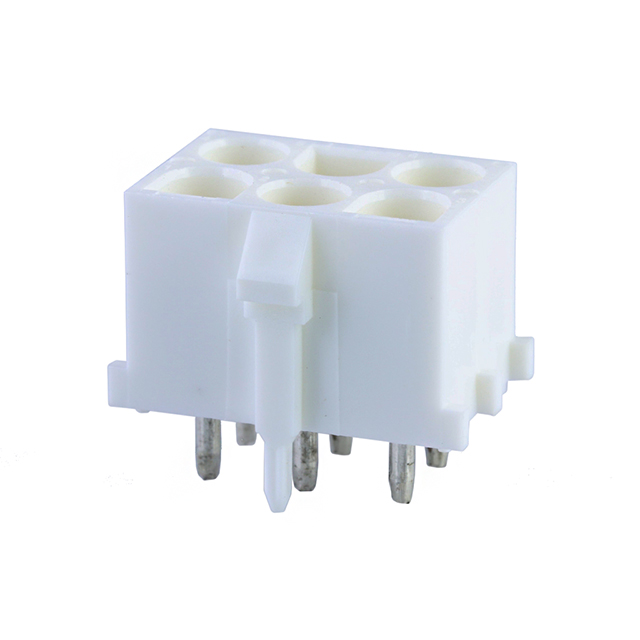

Molex 0432550139	Natural	2	Tin	6	Automotive General Purpose Industrial Telecommunications		6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polyamide (PA66) Nylon 6/6	UL94 V-2	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Female Socket	0.25 in	6.35 mm	600 V	105 ░C	-55 °C	Phosphor Bronze	137.8 Áin	3.5 Ám

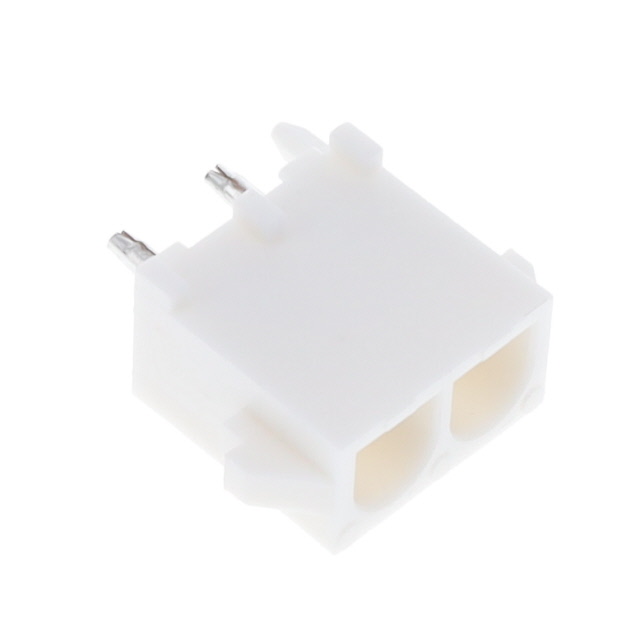

Molex 0432550003	Natural	1	Tin	2	Automotive General Purpose Industrial Telecommunications		6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polybutylene Terephthalate (PBT)	UL94 V-0	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Female Socket			600 V	105 ░C	-55 °C	Phosphor Bronze	137.8 Áin	3.5 Ám

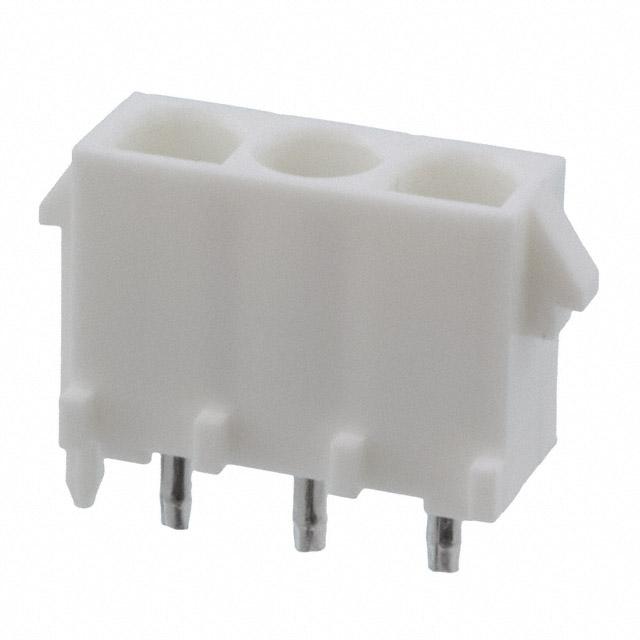

Molex 0432550067	Natural	1	Tin		Automotive General Purpose Industrial	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Through Hole	Polybutylene Terephthalate (PBT)	UL94 V-0	Locking Ramp	All	0.55 in	13.97 mm	Solder	Board to Cable/Wire	3.5 µm	137.8 µin	Header	Circular	Board Guide	Male Pin
