F6N0 Series

Manufacturer: Techflex

Catalog

SELF WRAP 1/8" X 25' BLACK

Part	Material Flammability Rating	Type	Material	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wall Thickness	Wall Thickness	Abrasion Protection	Type Attributes	Features	Color	Length	Length

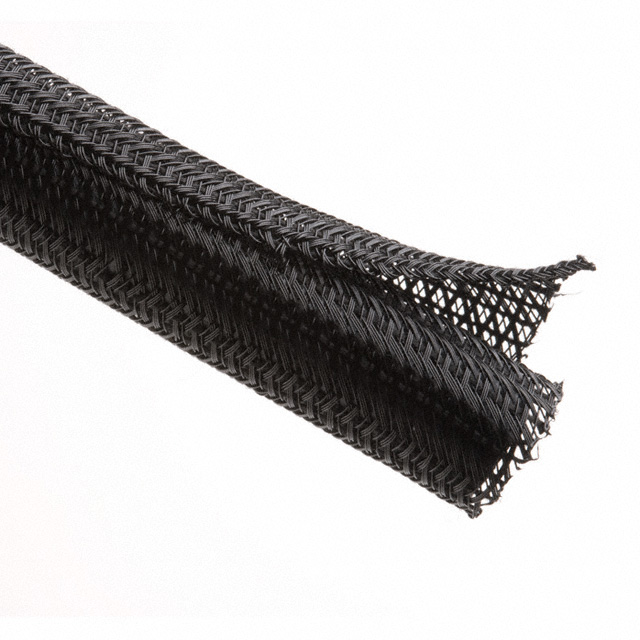

Techflex F6N0.13BK25	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	3.18 mm	0.125 in	7.62 m	25 ft	-70 °C	125 °C	0.61 mm	0.024 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut	Black
Techflex F6N0.25OR200	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free					-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut		60.96 m	200 ft
Techflex F6N0.38OR75	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	9.53 mm	0.375 in	22860 mm	75 ft	-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut

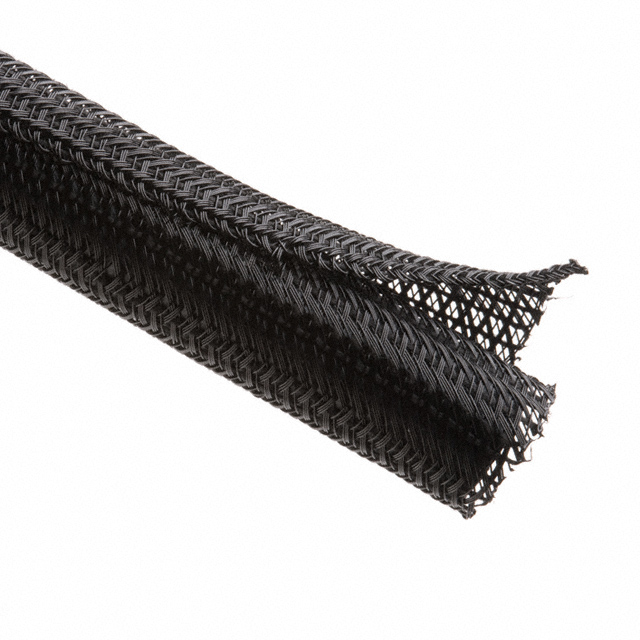

Techflex F6N0.38BK75	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	9.53 mm	0.375 in	22860 mm	75 ft	-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut	Black
Techflex F6N0.25OR100	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free					-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut		30.48 m	100 '
Techflex F6N0.38BK25	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	9.53 mm	0.375 in	7.62 m	25 ft	-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut	Black
Techflex F6N0.50OR25	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	12.7 mm	0.5 in	7.62 m	25 ft	-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut

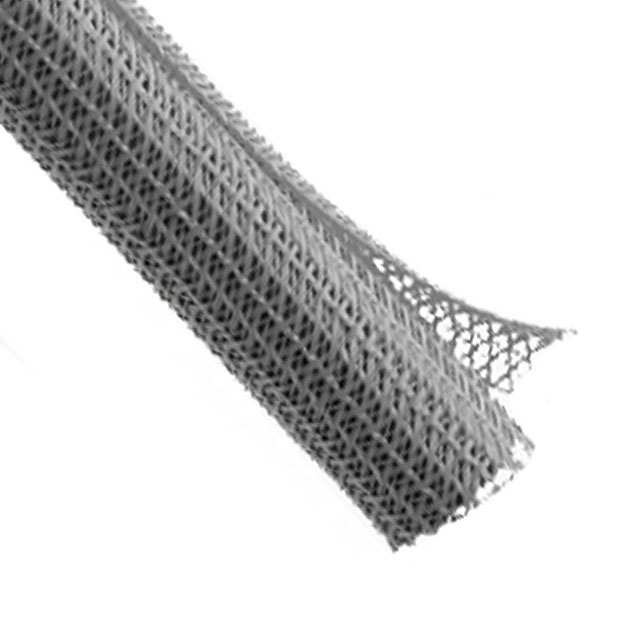

Techflex F6N0.75PG25	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	19.05 mm	0.75 in	7.62 m	25 ft	-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut	Gray
Techflex F6N0.13PG25	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	3.18 mm	0.125 in	7.62 m	25 ft	-70 °C	125 °C	0.61 mm	0.024 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut	Gray
Techflex F6N0.75PG100	UL94 V-0	Self Wrap	Polyethylene Terephthalate (PET) Halogen Free	19.05 mm	0.75 in			-70 °C	125 °C	0.64 mm	0.025 in	Abrasion and Cut Resistant	Split Flexible Tube	Chemical Resistant Clean Cut	Gray	30.48 m	100 '
