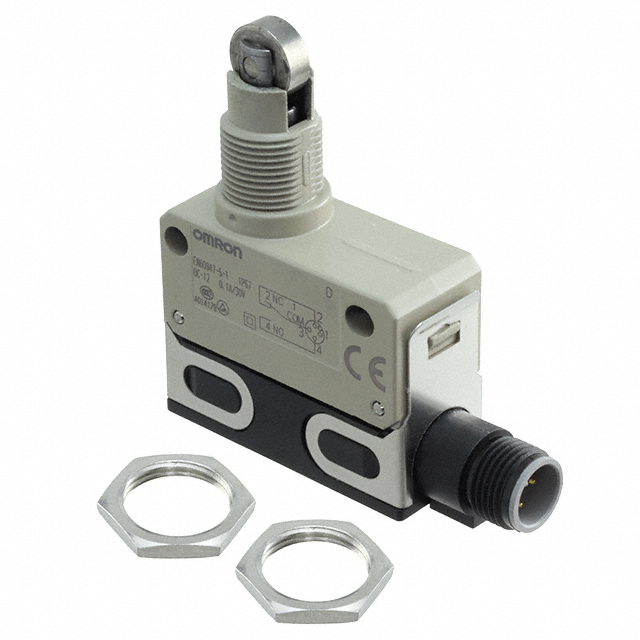

D4E-2A10 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Current Rating (Amps) | Release Force | Mounting Type | Overtravel | Overtravel | Mechanical Life | Pretravel | Pretravel | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Differential Travel | Differential Travel | Voltage Rating - AC | Operating Force | Circuit | Ingress Protection | Termination Style | Operating Position | Operating Position | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 100 mA | 500 gf | Panel Mount | 0.118 " | 3 mm | 10000000 Cycles | 0.06 in | 1.5 mm | Roller Plunger | -10 °C | 80 °C | 30 V | 0.1 mm | 0.004 in | 125 V | 1200 gf | SPDT | IP67 - Dust Tight Waterproof | Connector | 1.235 in | 31.4 mm | On-Mom |
