MVSTBW Series

Pluggable Terminal Blocks MVSTBW 2.5 HC/ 4-STF

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks MVSTBW 2.5 HC/ 4-STF

Catalog

Pluggable Terminal Blocks MVSTBW 2.5 HC/ 4-STF

Part	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Screw Size	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Strip Length	Material Flammability Rating	Plug Wire Entry [custom]	Positions Per Level	Type	Contact Mating Finish	Pitch	Pitch	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Voltage - UL	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Current - IEC	Mounting Type	Number of Positions	Termination Style	Current - UL	Insulation Height [z]	Insulation Height [z]
Phoenix Contact 1913125	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	M3	26.01 mm	1.024 in	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	270 °	8	Plug Female Sockets	Tin	5.08 mm	0.2 in	1	2.5 mm²	0.2 mm²	630 V	300 V	Green	30 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	16 A	Free Hanging (In-Line)	8	Screw - Rising Cage Clamp	16 A
Phoenix Contact 1913031			Polyamide (PA) Nylon	M3	26.01 mm	1.024 in	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	270 °	10	Plug Female Sockets	Tin	5 mm	0.197 in	1	2.5 mm²	0.2 mm²	630 V	300 V	Green	30 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	16 A	Free Hanging (In-Line)	10	Screw - Rising Cage Clamp	16 A
Phoenix Contact 1806914													270 °	2	Plug Female Sockets	Tin	5.08 mm	0.2 in	1									12 A	Free Hanging (In-Line)	2	Screw - Rising Cage Clamp

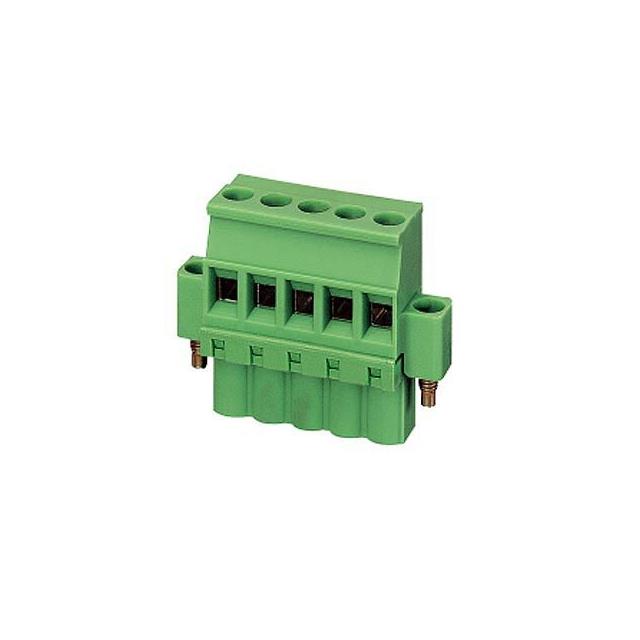

Phoenix Contact 1908253			Polyamide (PA) Nylon	M3	26.01 mm	1.024 in	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	270 °	5	Plug Female Sockets	Gold	5.08 mm	0.2 in	1	2.5 mm²	0.2 mm²	630 V	300 V	Green	30 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	12 A	Free Hanging (In-Line)	5	Screw - Rising Cage Clamp
Phoenix Contact 1912977			Polyamide (PA) Nylon	M3	26.01 mm	1.024 in	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	270 °	4	Plug Female Sockets	Tin	5 mm	0.197 in	1	2.5 mm²	0.2 mm²	630 V	300 V	Green	30 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	16 A	Free Hanging (In-Line)	4	Screw - Rising Cage Clamp	16 A
Phoenix Contact 1704848	2.5 mm˛	0.2 mm˛		M3			0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	270 °	8	Plug Female Sockets	Tin	5 mm	0.197 in	1	2.5 mm²	0.2 mm²	250 V		Black	30 AWG	12 AWG	Positions Stamped Retention Latches (Non-Wire Side)	12 A	Free Hanging (In-Line)	8	Screw - Rising Cage Clamp		12.6 mm	0.496 in
