RFD-1681 Series
Manufacturer: RF Industries
Beta
⌘K

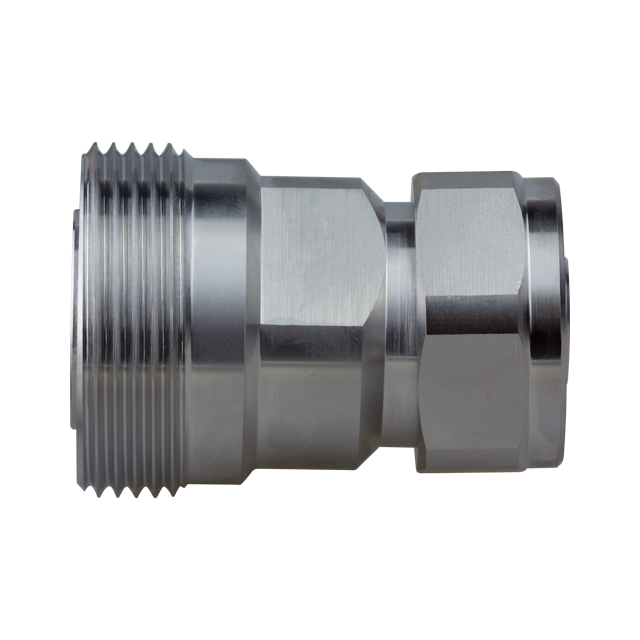

7/16 DIN FEMALE-4.1/9.5 MALE
| Part | Mating Cycles | Insertion Loss | Center Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Material | Body Finish | Mounting Type | Conversion Type | Style | Fastening Type | Center Gender | Frequency - Max | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Convert From (Adapter End) | Convert From (Adapter End) Type | Convert From (Adapter End) Pin Gender | Adapter Series | Impedance | Adapter Type | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | 500 cycles | 0.05 dB | Phosphor Bronze | -55 °C | 85 °C | Polytetrafluoroethylene (PTFE) | Brass | White Bronze | Free Hanging (In-Line) | Between Series | Straight | Threaded | Female Male | 7.5 GHz | 7/16 Jack | Female Socket | 4.1 9.5 Plug Male Pin | Plug | Male | 7/16 DIN to 4.1/9.5 | 50 Ohm | Plug to Jack | Silver |
