RZE20 Series

Catalog

CONN EDGE DUAL FMALE 40POS 0.039

Part	Material - Insulation	Number of Positions	Read Out	Gender	Features	Contact Material	Pitch	Pitch	Number of Positions/Bay/Row	Contact Finish	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Color	Card Type	Card Thickness	Card Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]

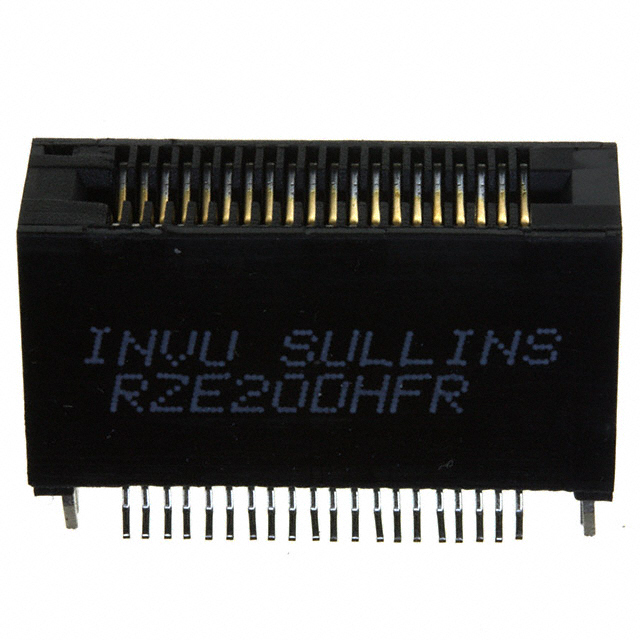

Sullins Connector Solutions RZE20DHFR	Polyphenylene Sulfide (PPS)	40	Dual	Female	Board Lock	Phosphor Bronze	1 mm	0.039 in	20 Bay/Row	Gold	Surface Mount	Hairpin Bellows	0.25 Ám	10 Áin	2	Solder	Black	Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C

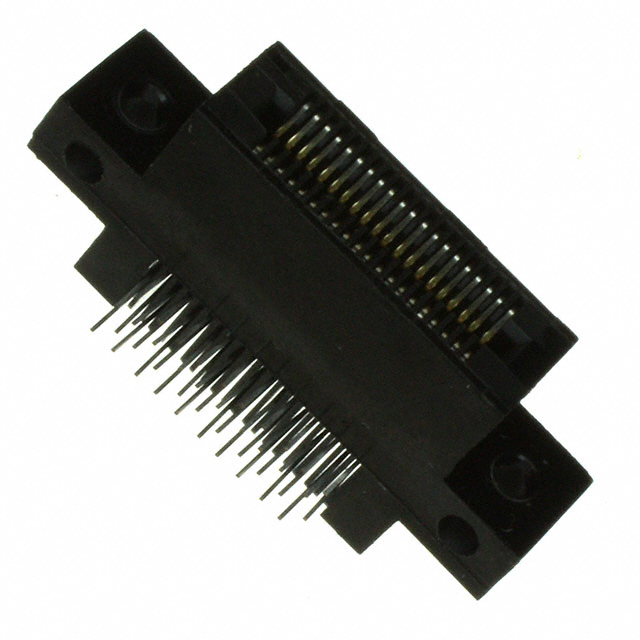

Sullins Connector Solutions RZE20DHAS	Polyphenylene Sulfide (PPS)	40	Dual	Female		Phosphor Bronze	1 mm	0.039 in	20 Bay/Row	Gold	Right Angle Through Hole	Hairpin Bellows	0.25 Ám	10 Áin	2	Solder Staggered	Black	Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	0.125 "	Side Mount Opening Unthreaded	3.18 mm
