ECQ-E2335 Series

Manufacturer: Panasonic Electronic Components

Catalog

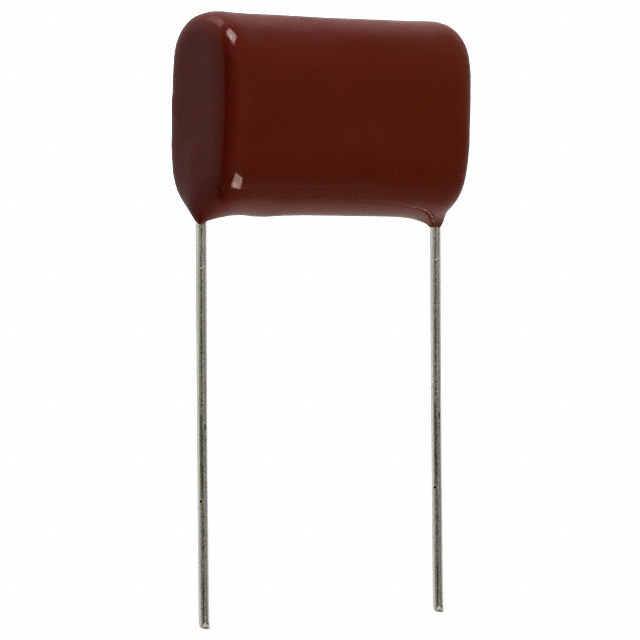

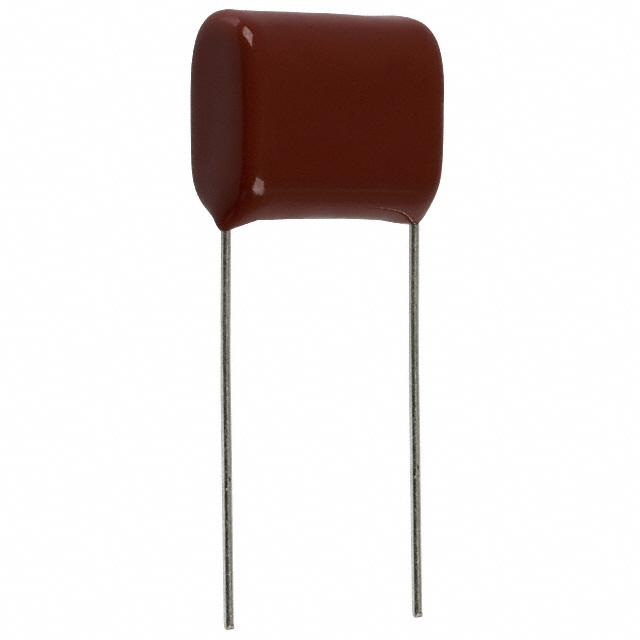

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET, RADIAL BOX - 2 PIN, 3.3 ΜF, ± 10%, 125 V, 250 V

Part	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Capacitance	Tolerance	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Dielectric Material	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2335KB	Radial	18.9 mm	0.744 "	Through Hole	3.3 µF	10 %	0.689 in	17.5 mm	0.413 in	0.819 "	20.8 mm	10.5 mm	PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V
Panasonic Electronic Components ECQ-E2335JF	Radial			Through Hole	3.3 µF	5 %	0.886 in	22.5 mm	0.406 in	1.024 in	26 mm	10.3 mm	PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V	0.768 in	19.5 mm
Panasonic Electronic Components ECQ-E2335JBB	Radial	22.9 mm	0.902 in	Through Hole	3.3 µF	5 %	0.394 in	10 mm	0.413 in	0.819 "	20.8 mm	10.5 mm	PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V
Panasonic Electronic Components ECQ-E2335JFA	Radial			Through Hole	3.3 µF	5 %							PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V
Panasonic Electronic Components ECQ-E2335KFW	Radial	23 mm	0.906 in	Through Hole	3.3 µF	10 %	0.591 in	15 mm	0.406 in	1.024 in	26 mm	10.3 mm	PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V
Panasonic Electronic Components ECQ-E2335JB	Radial	18.9 mm	0.744 "	Through Hole	3.3 µF	5 %	0.689 in	17.5 mm	0.413 in	0.819 "	20.8 mm	10.5 mm	PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V
Panasonic Electronic Components ECQ-E2335KF	Radial	19 mm	0.748 in	Through Hole	3.3 µF	10 %	0.886 in	22.5 mm	0.406 in	1.024 in	26 mm	10.3 mm	PC Pins	-40 C	105 ░C	General Purpose	Polyester Metallized	250 V
