RP360 Series

Catalog

LINE FILTER 480VAC 40A CHASSIS

Part	Applications	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Current	Filter Type	Voltage - Rated AC	Approval Agency	Mounting Type
Astrodyne TDI RP360-40-10-S	General Purpose	Threaded Post (M5)	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	40 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-60-0-W	General Purpose	Wire Leads	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	60 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-40-10-W	General Purpose	Wire Leads	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	40 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-60-10-C	General Purpose	Terminal Block	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	60 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-60-100-S	General Purpose	Threaded Post (M5)	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	60 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-60-100-W	General Purpose	Wire Leads	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	60 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount

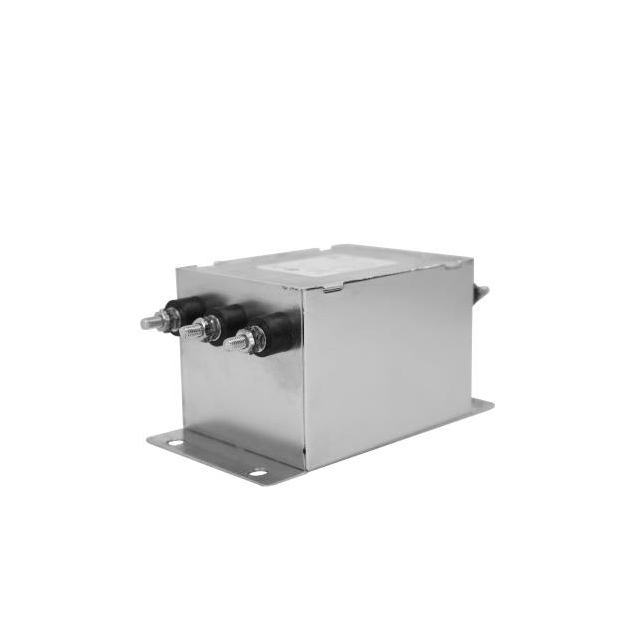

Astrodyne TDI RP360-20-0-S	General Purpose	Threaded Post (M5)	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	20 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-20-10-W	General Purpose	Wire Leads	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	20 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-60-100-C	General Purpose	Terminal Block	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	60 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
Astrodyne TDI RP360-20-0-W	General Purpose	Wire Leads	3.5 kV	60 Hz	50 Hz	100 °C	-25 °C	Single Stage	20 A	Three Phase (Delta)	480 V	CE CSA cURus ENEC SEMKO	Chassis Mount
