ADS4128 Series

12-Bit, 200-MSPS Analog-to-Digital Converter (ADC)

Catalog

12-Bit, 200-MSPS Analog-to-Digital Converter (ADC)

Part	Input Range	Power (Typ) @ Conditions	Data Interface	Supplied Contents	Utilized IC / Part	Sampling Rate (Per Second)	Number of A/D Converters	Number of Bits	Reference Type	Ratio - S/H:ADC	Number of Inputs	Architecture	Mounting Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Supplier Device Package	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Package / Case

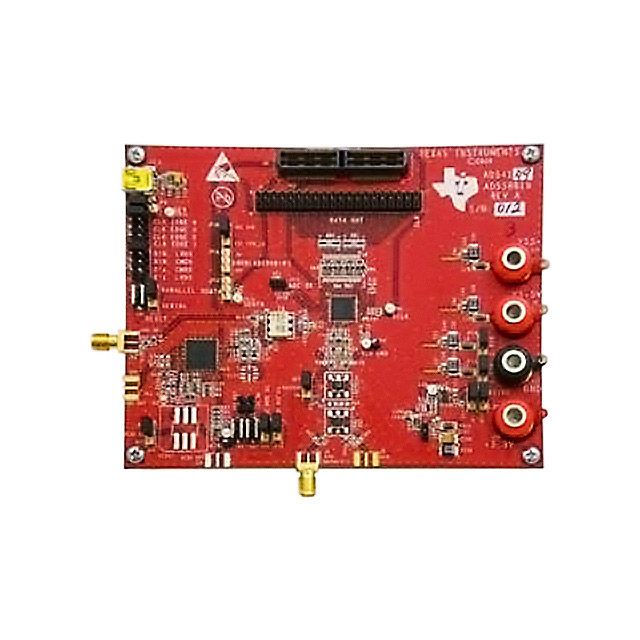

Texas Instruments ADS4128EVM	2 Vpp	200 MSPS 230 mW	Parallel Serial	Board(s)	ADS4128	200 M	1	12 bits
Texas Instruments ADS4128IRGZT			LVDS - Parallel Parallel			200 M	1	12 bits	Internal	1:1	1	Pipelined	Surface Mount	1.7 V	1.9 V	S/H-ADC	85 °C	-40 °C	Differential	48-VQFN (7x7)	1.9 V	1.7 V	48-VFQFN Exposed Pad
Texas Instruments ADS4128IRGZR			LVDS - Parallel Parallel			200 M	1	12 bits	Internal	1:1	1	Pipelined	Surface Mount	1.7 V	1.9 V	S/H-ADC	85 °C	-40 °C	Differential	48-VQFN (7x7)	1.9 V	1.7 V	48-VFQFN Exposed Pad

Catalog

12-Bit, 200-MSPS Analog-to-Digital Converter (ADC)

Key Features

• Maximum Sample Rate: 200 MSPSUltralow Power with 1.8-V Single Supply:230-mW Total Power at 200 MSPSHigh Dynamic Performance:SNR: 69 dBFS at 170 MHzSFDR: 85 dBc at 170 MHzDynamic Power Scaling With Sample RateOutput Interface:Double Data Rate (DDR) LVDS withProgrammable Swing and StrengthStandard Swing: 350 mVLow Swing: 200 mVDefault Strength: 100-Ω Termination2× Strength: 50-Ω Termination1.8-V Parallel CMOS Interface Also SupportedProgrammable Gain up to 6 dB for SNR andSFDR Trade-OffDC Offset CorrectionSupports Low Input Clock Amplitude Down to 200mVPPPackage: 7.00 mm × 7.00 mm VQFN-48Maximum Sample Rate: 200 MSPSUltralow Power with 1.8-V Single Supply:230-mW Total Power at 200 MSPSHigh Dynamic Performance:SNR: 69 dBFS at 170 MHzSFDR: 85 dBc at 170 MHzDynamic Power Scaling With Sample RateOutput Interface:Double Data Rate (DDR) LVDS withProgrammable Swing and StrengthStandard Swing: 350 mVLow Swing: 200 mVDefault Strength: 100-Ω Termination2× Strength: 50-Ω Termination1.8-V Parallel CMOS Interface Also SupportedProgrammable Gain up to 6 dB for SNR andSFDR Trade-OffDC Offset CorrectionSupports Low Input Clock Amplitude Down to 200mVPPPackage: 7.00 mm × 7.00 mm VQFN-48

Description

The ADS4128 is a 12-bit analog-to-digital converter (ADC) with sampling rates up to 200 MSPS. This device uses innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8-V supply. The device is well-suited for multi-carrier, wide-bandwidth communications applications. The ADS4128 has fine-gain options that can be used to improve SFDR performance at lower full-scale input ranges, especially at high input frequencies. It includes a dc offset correction loop that can be used to cancel the ADC offset. At lower sampling rates, the ADC automatically operates at scaled-down power with no loss in performance. The ADS4128 is available in a compact VQFN-48 package and is specified over the industrial temperature range (–40°C to 85°C). The ADS4128 is a 12-bit analog-to-digital converter (ADC) with sampling rates up to 200 MSPS. This device uses innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8-V supply. The device is well-suited for multi-carrier, wide-bandwidth communications applications. The ADS4128 has fine-gain options that can be used to improve SFDR performance at lower full-scale input ranges, especially at high input frequencies. It includes a dc offset correction loop that can be used to cancel the ADC offset. At lower sampling rates, the ADC automatically operates at scaled-down power with no loss in performance. The ADS4128 is available in a compact VQFN-48 package and is specified over the industrial temperature range (–40°C to 85°C).
