4526-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

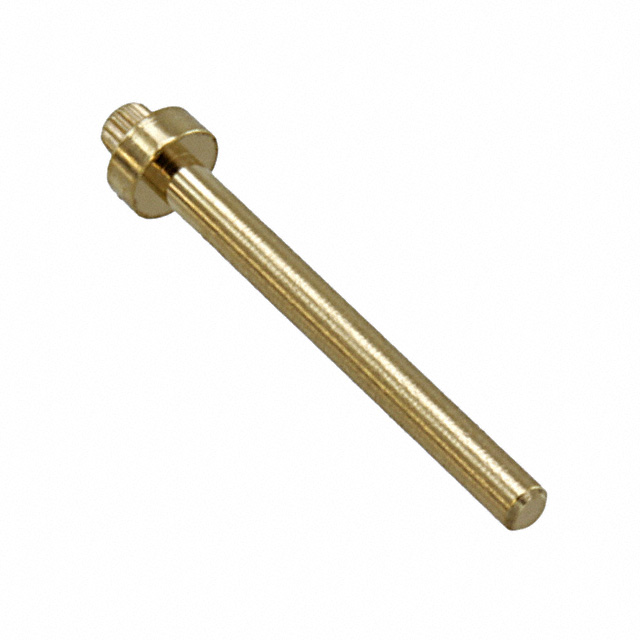

CONN PC PIN CIRC .040DIA TINLEAD
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Insulation | Terminal Style | Terminal Type | Contact Finish | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange | Pin Size - Below Flange [diameter] | Termination | Flange Diameter | Flange Diameter | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | Through Hole | Non-Insulated | Single End | PC Pin | Tin-Lead | 12.17 mm | 0.479 in | 1.09 mm | 0.043 in | Knurled Press-Fit | 0.082 in | 2.08 mm | 0.04 in | 1.02 mm | 1.02 mm | 0.04 in | Brass Alloy | 0.035 " | 0.89 mm |
Mill-Max Manufacturing Corp. | 50 µin | 1.27 µm | Through Hole | Non-Insulated | Single End | PC Pin | Gold | 12.17 mm | 0.479 in | 1.09 mm | 0.043 in | Knurled Press-Fit | 0.082 in | 2.08 mm | 0.04 in | 1.02 mm | 1.02 mm | 0.04 in | Brass Alloy | 0.035 " | 0.89 mm |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | Through Hole | Non-Insulated | Single End | PC Pin | Gold | 12.17 mm | 0.479 in | 1.09 mm | 0.043 in | Knurled Press-Fit | 0.082 in | 2.08 mm | 0.04 in | 1.02 mm | 1.02 mm | 0.04 in | Brass Alloy | 0.035 " | 0.89 mm |
