Single Zener diodes
Description
AI
General-purpose Zener diodes in SOD882 leadless ultra small Surface-Mounted Device (SMD) plastic package.
Beta
⌘K
Single Zener diodes
Single Zener diodes
| Part | Package / Case | Current - Reverse Leakage @ Vr | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Configuration | Tolerance | Voltage - Zener (Nom) (Vz) | Impedance (Max) (Zzt) [Max] | Power - Max [Max] | Voltage - Forward (Vf) (Max) @ If | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

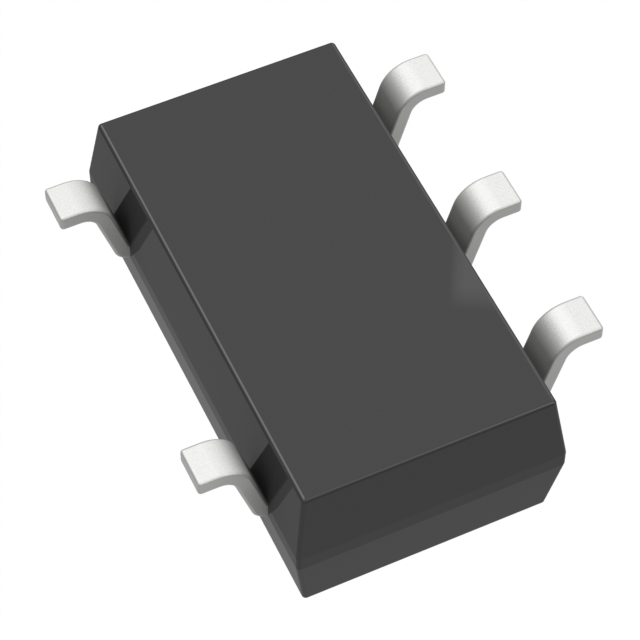

 Freescale Semiconductor - NXP | 5-TSSOP SC-70-5 SOT-353 | 5 µA | Surface Mount | 5-TSSOP | -55 °C | 150 °C | 2 Independent | 2 % | 3.3 V | 95 Ohms | 250 mW | 900 mV | ||
 Freescale Semiconductor - NXP | SC-90 SOD-323F | 5 µA | Surface Mount | SOD-323F | -65 ░C | 150 °C | 2 % | 3.3 V | 95 Ohms | 310 mW | 1.1 V | Automotive | AEC-Q100 | |
 Freescale Semiconductor - NXP | SC-76 SOD-323 | 5 µA | Surface Mount | SOD-323 | -55 °C | 150 °C | 2 % | 3.3 V | 95 Ohms | 320 mW | 1.1 V | |||
Freescale Semiconductor - NXP | SC-90 SOD-323F | 5 µA | Surface Mount | SOD-323F | -65 ░C | 150 °C | 5 % | 3.3 V | 95 Ohms | 310 mW | 1.1 V | Automotive | AEC-Q100 | |
 Freescale Semiconductor - NXP | SC-76 SOD-323 | 5 µA | Surface Mount | SOD-323 | -55 °C | 150 °C | 5 % | 3.3 V | 95 Ohms | 320 mW | 1.1 V | |||
 Freescale Semiconductor - NXP | SOD-882 | 5 µA | Surface Mount | DFN1006-2 | -55 °C | 150 °C | 2 % | 3.3 V | 95 Ohms | 250 mW | 1.1 V | Automotive | AEC-Q100 |
