842-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

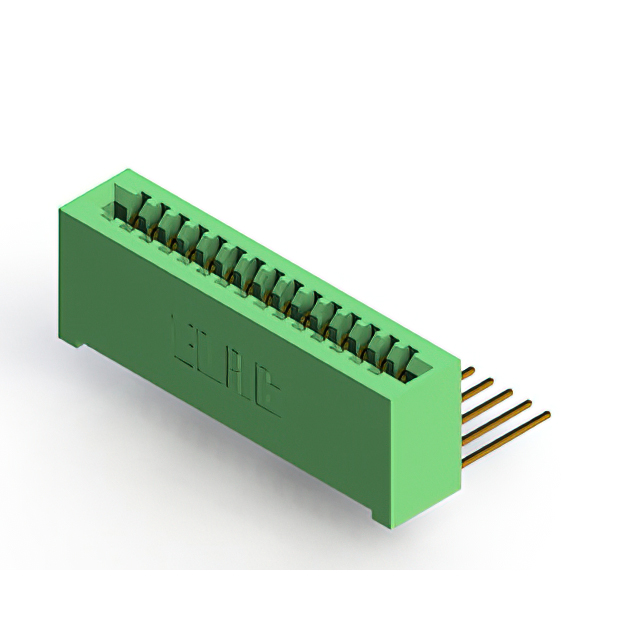

CONN EDGE SINGLE FML 15POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish | Mounting Type | Card Type | Gender | Termination | Pitch | Pitch | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Read Out | Number of Rows | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Wire Wrap | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Right Angle Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Wire Wrap | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Right Angle Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Right Angle Through Hole | Non Specified - Single Edge | Female | Solder | 0.1 " | 2.54 mm | Green | Copper Alloy | 125 °C | -40 C | Cantilever | Single | 1 | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
