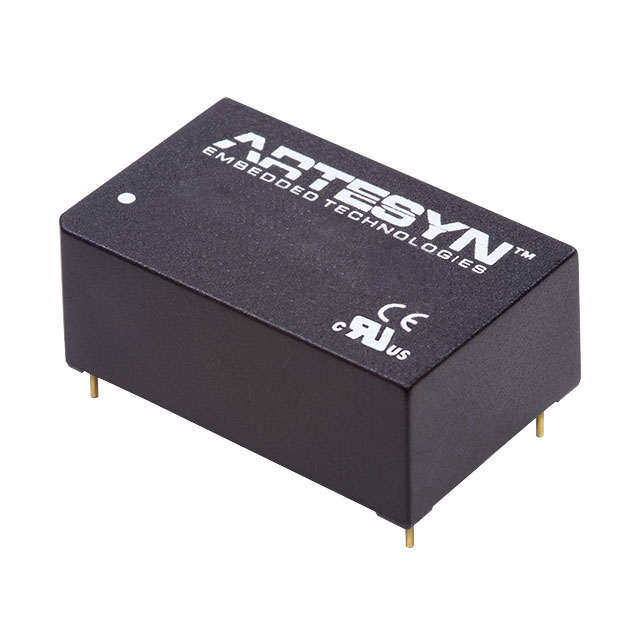

ASA01BB Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA
| Part | Voltage - Output 1 | Efficiency | Voltage - Isolation | Type | Voltage - Input (Min) [Min] | Number of Outputs | Applications | Features | Voltage - Output 2 | Mounting Type | Package / Case | Current - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 12 V | 80 % | 4000 V | Isolated Module | 18 V | 2 | ITE (Commercial) | OCP SCP | -12 V | Through Hole | 24-DIP Module 6 Leads | 250 mA | -40 C | 75 ░C | 5 W | 36 V | 1.25 in | 10.4 mm | 0.8 " | 20.3 mm | 0.41 in | 31.8 mm |
ARTESYN / Advanced Energy | 12 V | 80 % | 4000 V | Isolated Module | 9 V | 2 | ITE (Commercial) | OCP SCP | -12 V | Through Hole | 24-DIP Module 6 Leads | 250 mA | -40 C | 75 ░C | 5 W | 18 V | 1.25 in | 10.4 mm | 0.8 " | 20.3 mm | 0.41 in | 31.8 mm |
