626-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

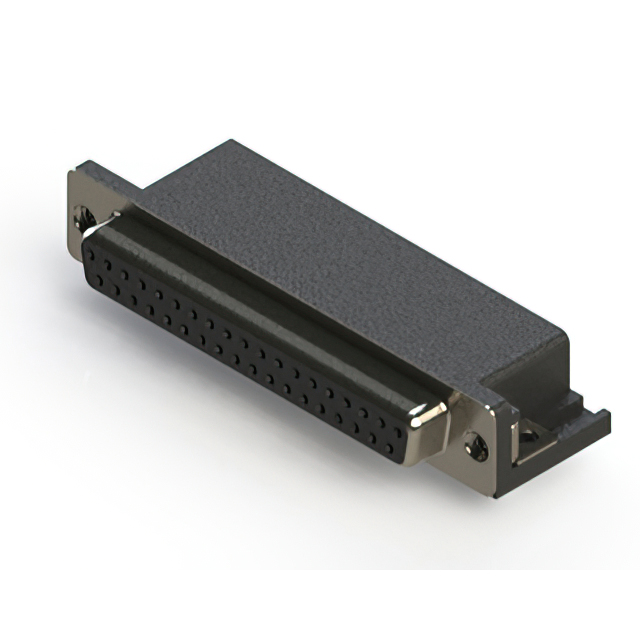

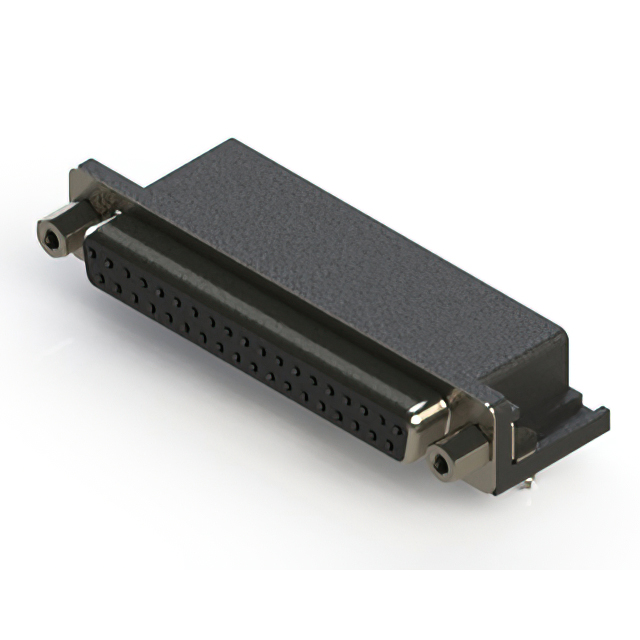

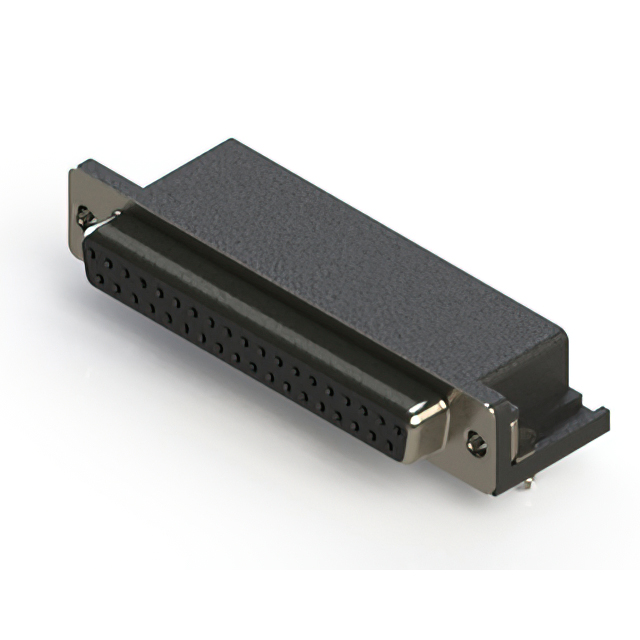

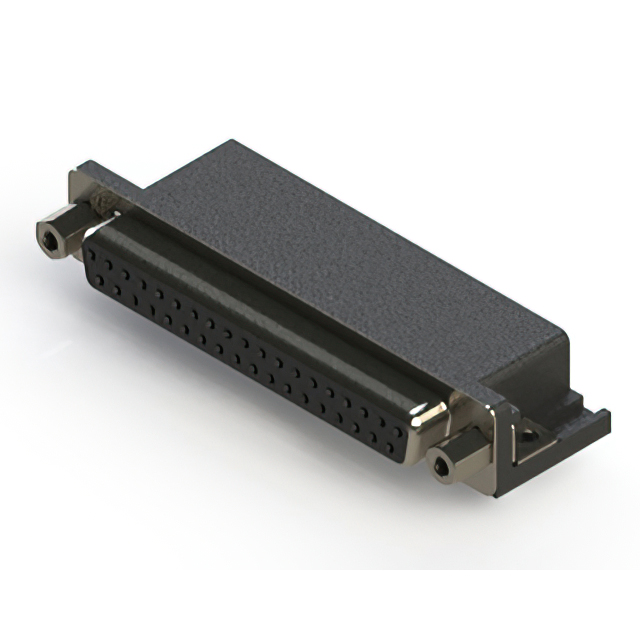

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Features | Material Flammability Rating | Shell Material, Finish | Current Rating (Amps) | Mounting Type | Contact Finish | Number of Positions | Connector Style | Number of Rows [custom] | Flange Feature | Flange Feature | Backset Spacing | Backset Spacing | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | Housing/Shell | 4-40 | 0.584 " | 14.84 mm | Signal | 4 | DC C | |
 EDAC Inc. | Black | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | Receptacle Female Sockets | Solder | Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 Mating Side Female Screwlock | 0.584 " | 14.84 mm | Signal | 4 | DC C | Flash | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | Housing/Shell | 4-40 | 0.584 " | 14.84 mm | Signal | 4 | DC C | |
 EDAC Inc. | Black | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | Receptacle Female Sockets | 15 µin | 0.38 µm | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 Mating Side Female Screwlock | 0.584 " | 14.84 mm | Signal | 4 | DC C | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 | 0.584 " | 14.84 mm | Signal | 4 | DC C | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 15 µin | 0.38 µm | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 | 0.584 " | 14.84 mm | Signal | 4 | DC C | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | Receptacle Female Sockets | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 Mating Side Female Screwlock | 0.584 " | 14.84 mm | Signal | 4 | DC C | Flash | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 | 0.584 " | 14.84 mm | Signal | 4 | DC C | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | Receptacle Female Sockets | Solder | Board Lock Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | 4-40 | 0.584 " | 14.84 mm | Signal | 4 | DC C | Flash | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | Solder | Mounting Brackets Shielded | UL94 V-0 | Nickel Plated Steel | 3 A | Board Edge Right Angle Through Hole | Gold | 37 | D-Sub | 2 | Housing/Shell (Unthreaded) | 0.584 " | 14.84 mm | Signal | 4 | DC C | Flash |
