TPS650241-Q1 Series

Automotive 1.5V to 6.5V, 3 Buck & 3 LDO Power Management IC

Catalog

Automotive 1.5V to 6.5V, 3 Buck & 3 LDO Power Management IC

Part	Battery Chemistry	Qualification	Mounting Type	Supplier Device Package	Grade	Function	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Fault Protection	Number of Cells	Voltage - Output	Current - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Regulator Topology	Utilized IC / Part	Supplied Contents	Frequency - Switching	Main Purpose
Texas Instruments TPS650241QRHBRQ1	Lithium Ion/Polymer	AEC-Q100	Surface Mount	32-VQFN (5x5)	Automotive	Power Management	-40 °C	125 °C	32-VFQFN Exposed Pad	Over Temperature Under Voltage	1
Texas Instruments TPS650241RHBT	Lithium Ion/Polymer		Surface Mount	32-VQFN (5x5)		Power Management	-40 °C	85 °C	32-VFQFN Exposed Pad	Over Temperature Under Voltage	1

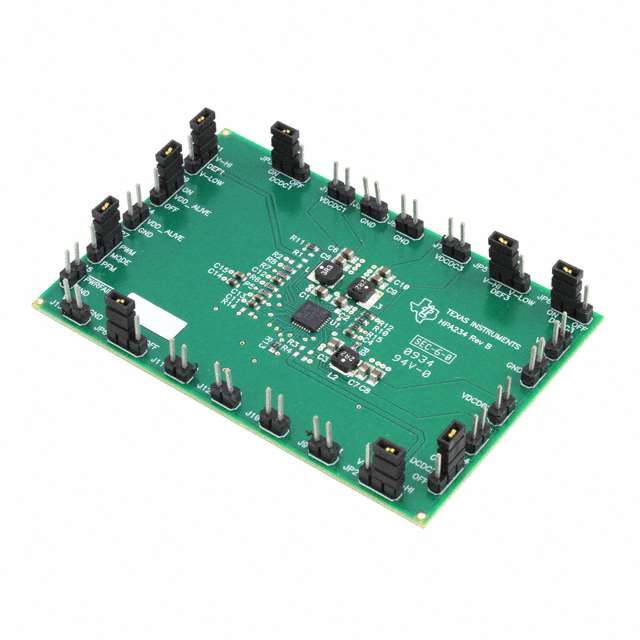

Texas Instruments TPS650241EVM-234												1.2 V 1.375 V 1.5 V 2.5 V 3.3 V	1 A 1.6 A 30 mA 200 mA 800 mA	Fully Populated	5.5 V	3 V	6	Non-Isolated	Buck	TPS650241	Board(s)	2.25 MHz	DC/DC Step Down with LDO
Texas Instruments TPS650241RHBR	Lithium Ion/Polymer		Surface Mount	32-VQFN (5x5)		Power Management	-40 °C	85 °C	32-VFQFN Exposed Pad	Over Temperature Under Voltage	1

Catalog

Automotive 1.5V to 6.5V, 3 Buck & 3 LDO Power Management IC

Key Features

• Qualified for Automotive Applications1.6-A, 1.0-A or 0.8-A, 97% Efficient Step-DownConverter for System Voltage (VDCDC1)3.3-V or 2.80-V or Adjustable1.6-A, 1.0-A or 0.8-A, up to 95% EfficientStep-Down Converter for Memory Voltage (VDCDC2)1.8 V or 2.5 V or Adjustable0.8-A 90% Efficient Step-Down Converter forProcessor Core (VDCDC3)Three Selectable Voltages for VDCDC3TPS650241DEFDCDC3 = LOW: VO= 0.9 VDEFDCDC3 = HIGH: VO= 1.375 VTPS650243DEFDCDC3 = LOW: VO= 1.0 VDEFDCDC3 = HIGH: VO= 1.2 VTPS650244DEFDCDC3 = LOW: VO= 1.55 VDEFDCDC3 = HIGH: VO= 1.6 V30-mA LDO for Vdd_aliveTwo 200-mA General Purpose LDOs (LDO1 and LDO2)Dynamic Voltage Management for Processor CoreLDO1 and LDO2 Voltage Externally AdjustableSeparate Enable Pins for Inductive Converters2.25-MHz Switching Frequency85-µA Quiescent CurrentThermal Shutdown ProtectionAPPLICATIONSPDACellular/Smart PhoneGPSDigital Still CameraSplit Supply DSP and Microprocessor Solutions:Samsung ARM-Based Processors, etc.Qualified for Automotive Applications1.6-A, 1.0-A or 0.8-A, 97% Efficient Step-DownConverter for System Voltage (VDCDC1)3.3-V or 2.80-V or Adjustable1.6-A, 1.0-A or 0.8-A, up to 95% EfficientStep-Down Converter for Memory Voltage (VDCDC2)1.8 V or 2.5 V or Adjustable0.8-A 90% Efficient Step-Down Converter forProcessor Core (VDCDC3)Three Selectable Voltages for VDCDC3TPS650241DEFDCDC3 = LOW: VO= 0.9 VDEFDCDC3 = HIGH: VO= 1.375 VTPS650243DEFDCDC3 = LOW: VO= 1.0 VDEFDCDC3 = HIGH: VO= 1.2 VTPS650244DEFDCDC3 = LOW: VO= 1.55 VDEFDCDC3 = HIGH: VO= 1.6 V30-mA LDO for Vdd_aliveTwo 200-mA General Purpose LDOs (LDO1 and LDO2)Dynamic Voltage Management for Processor CoreLDO1 and LDO2 Voltage Externally AdjustableSeparate Enable Pins for Inductive Converters2.25-MHz Switching Frequency85-µA Quiescent CurrentThermal Shutdown ProtectionAPPLICATIONSPDACellular/Smart PhoneGPSDigital Still CameraSplit Supply DSP and Microprocessor Solutions:Samsung ARM-Based Processors, etc.

Description

The TPS65024x are integrated Power Management ICs for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65024x provide three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor based system. All three step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents. The converters can be forced into fixed frequency PWM mode by pulling the MODE pin high. The TPS65024x also integrate two general purpose 200-mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range between 1.5 V and 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the battery. The output voltage of the LDOs can be set with an external resistor divider for maximum flexibility. Additionally there is a 30-mA LDO typically used to provide power in a processor based system to a voltage rail that is always on. TPS65024x provide voltage scaling on DCDC3 using the DEFDCDC3 pin. This pin either needs to be connected to a logic HIGH or logic LOW level to set the output voltage of DCDC3. TPS65024x come in a small 5-mm × 5-mm 32-pin QFN package (RHB). The TPS65024x are integrated Power Management ICs for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65024x provide three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor based system. All three step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents. The converters can be forced into fixed frequency PWM mode by pulling the MODE pin high. The TPS65024x also integrate two general purpose 200-mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range between 1.5 V and 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the battery. The output voltage of the LDOs can be set with an external resistor divider for maximum flexibility. Additionally there is a 30-mA LDO typically used to provide power in a processor based system to a voltage rail that is always on. TPS65024x provide voltage scaling on DCDC3 using the DEFDCDC3 pin. This pin either needs to be connected to a logic HIGH or logic LOW level to set the output voltage of DCDC3. TPS65024x come in a small 5-mm × 5-mm 32-pin QFN package (RHB).
