612J Series

Catalog

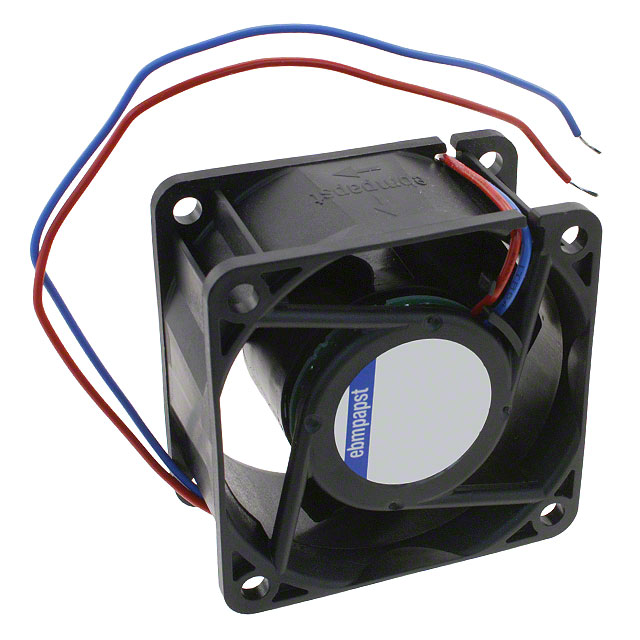

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 32 MM, BALL BEARING, 41.1 CFM

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Frame	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination	Width [y]	Weight	Weight	Fan Type	Air Flow	Air Flow	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Approval Agency	Bearing Type	Features	Static Pressure	Static Pressure
ebm-papst Inc. 612JH	Polyamide (PA) Nylon Fiberglass Reinforced	7 V	13.6 VDC	57500 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	12 VDC	60 mm	60 mm	53 dB	2 Wire Leads	32 mm	99.79 g	0.22 lb	Tubeaxial	1.15 m³/min	41.2 CFM	11700 RPM	-20 ░C	70 °C	7.7 W	CE	Ball
ebm-papst Inc. 612J/2H	Polyamide (PA) Nylon Fiberglass Reinforced	7 V	13.6 VDC	70000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	12 VDC	60 mm	60 mm	53 dB	3 Wire Leads	32 mm	99.79 g	0.22 lb	Tubeaxial	1.15 m³/min	41.2 CFM	11700 RPM	-20 ░C	70 °C	7.7 W		Ball	Locked Rotor Protection Speed Sensor (Tach)	0.363 in H2O	90.5 Pa
