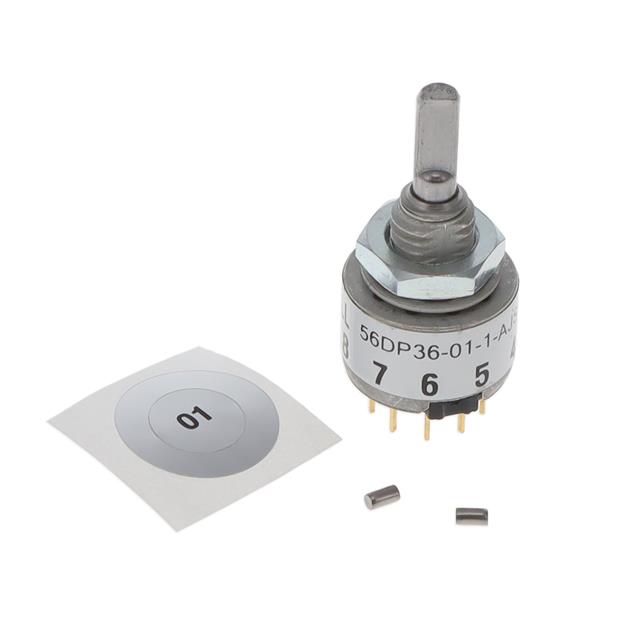

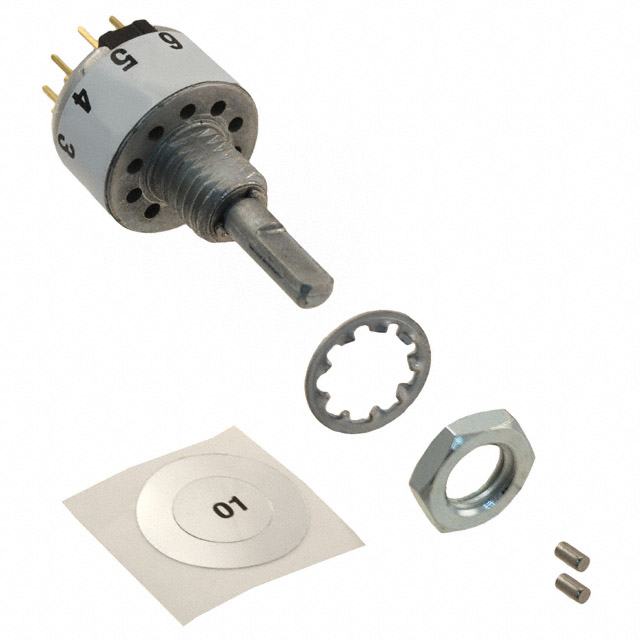

56DP36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2-10POS 200MA 115V
| Part | Index Stops | Voltage Rating - AC | Circuit per Deck | Number of Poles per Deck | Voltage Rating - DC | Contact Material | Contact Timing | Depth Behind Panel [z] | Contact Finish | Current Rating (Amps) | Actuator Length [x] | Angle of Throw | Termination Style | Actuator Type | Mounting Type | Number of Decks [custom] | Number of Positions [Max] | Number of Positions [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Adjustable | 115 V | SP10T | 1 | 30 V | Brass | Non-Shorting (BBM) | 9.58 mm | Silver | 200 mA | 9.53 mm | 36 ° | PC Pin | Flatted (3.17mm Dia) | Panel Mount Through Hole | 1 | ||
 Grayhill Inc. | Adjustable | 115 V | DP5T | 2 | 30 V | Brass | Shorting (MBB) | 9.58 mm | Silver | 200 mA | 9.53 mm | 36 ° | PC Pin | Flatted (3.17mm Dia) | Panel Mount Through Hole | 1 | 5 | 2 |
 Grayhill Inc. | Adjustable | 115 V | SP10T | 1 | 30 V | Brass | Shorting (MBB) | 9.58 mm | Silver | 200 mA | 9.53 mm | 36 ° | PC Pin | Flatted (3.17mm Dia) | Panel Mount Through Hole | 1 | ||
Grayhill Inc. | Adjustable | 115 V | DP5T | 2 | 30 V | Brass | Non-Shorting (BBM) | 9.58 mm | Silver | 200 mA | 9.53 mm | 36 ° | PC Pin | Flatted (3.17mm Dia) | Panel Mount Through Hole | 1 | 5 | 2 |
