CRTL10A Series
Manufacturer: Oslo Switch
Beta
⌘K

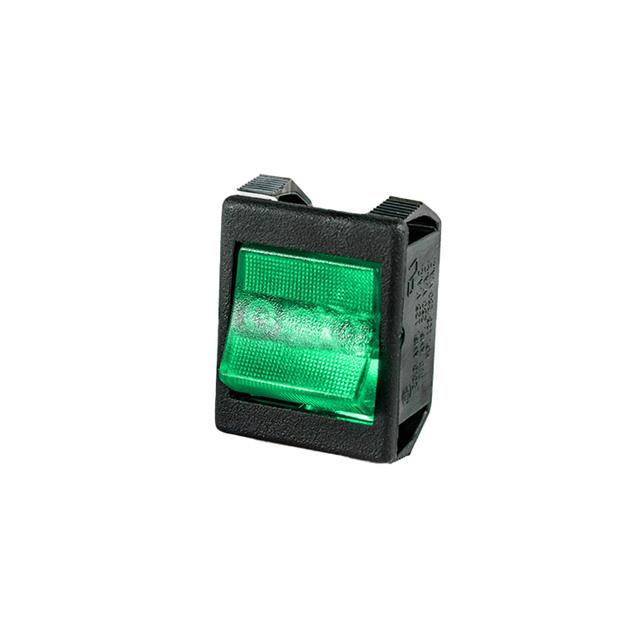

SWITCH ROCKER SPST 20A 125V
| Part | Mechanical Life | Electrical Life | Illumination Voltage (Nominal) | Voltage Rating - DC | Actuator Marking | Circuit | Current Rating (Amps) | Color - Actuator/Cap | Switch Function | Illumination Type, Color | Termination Style | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Approval Agency | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oslo Switch | 100000 Cycles | 35000 Cycles | 28 VAC/DC | 14 V | O - | SPST | 14 A 20 A | Amber | Off-On | Amber Incandescent | Quick Connect - 0.250" (6.3mm) | 125 V | 22.35 mm | 27.43 mm | Panel Mount Snap-In | CSA UL VDE | Concave (Curved) - Illuminated |
Oslo Switch | 100000 Cycles | 35000 Cycles | 125 VAC | 14 V | O - | SPST | 14 A 20 A | Red | Off-On | Neon Red | Quick Connect - 0.250" (6.3mm) | 125 V | 22.35 mm | 27.43 mm | Panel Mount Snap-In | CSA UL VDE | Concave (Curved) - Illuminated |
Oslo Switch | 100000 Cycles | 35000 Cycles | 125 VAC | 14 V | O - | SPST | 14 A 20 A | Clear | Off-On | Clear Neon | Quick Connect - 0.250" (6.3mm) | 125 V | 22.35 mm | 27.43 mm | Panel Mount Snap-In | CSA UL VDE | Concave (Curved) - Illuminated |
Oslo Switch | 100000 Cycles | 35000 Cycles | 12 VAC/DC | 14 V | O - | SPST | 14 A 20 A | Red | Off-On | Incandescent | Quick Connect - 0.250" (6.3mm) | 125 V | 22.35 mm | 27.43 mm | Panel Mount Snap-In | CSA UL VDE | Concave (Curved) - Illuminated |
