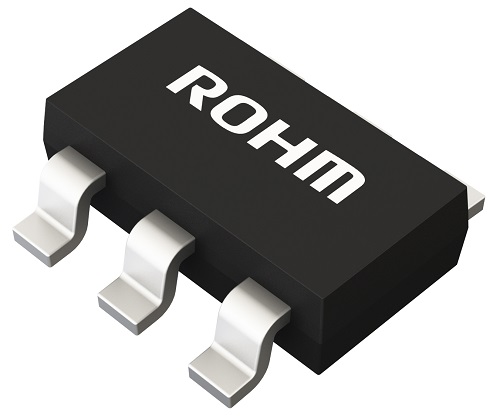

BD9E200FP4-Z Series

4.5V to 26V Input, 2.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Catalog

4.5V to 26V Input, 2.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Part	Voltage - Output (Min/Fixed) [Min]	Function	Synchronous Rectifier	Mounting Type	Frequency - Switching	Supplier Device Package	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output (Max) [Max]	Output Configuration	Voltage - Input (Max) [Max]	Current - Output	Output Type	Voltage - Input (Min) [Min]	Package / Case
Rohm Semiconductor BD9E200FP4-ZTL	0.7 V	Step-Down		Surface Mount	500 kHz	TSOT-23-6L	Buck	85 C	-40 ¯C	1	20.8 V	Positive	26 V	2 A	Adjustable	4.5 V	SOT-23-6 Thin TSOT-23-6

Catalog

4.5V to 26V Input, 2.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Description

BD9E200FP4-Z is a single synchronous buck DC/DC converter with built-in low on-resistance power MOSFETs. The Light Load Mode control provides excellent efficiency characteristics in light-load conditions, which make the product ideal for equipment, and devices that demand minimal standby power consumption.
