A222Y34 Series

Manufacturer: Nicomatic

Catalog

FEM. 34POS STRAIGHT TRGH 1.27MM

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Finish - Mating	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Material Flammability Rating	Voltage Rating	Connector Type	Pitch - Mating	Pitch - Mating	Features	Current Rating (Amps)	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post

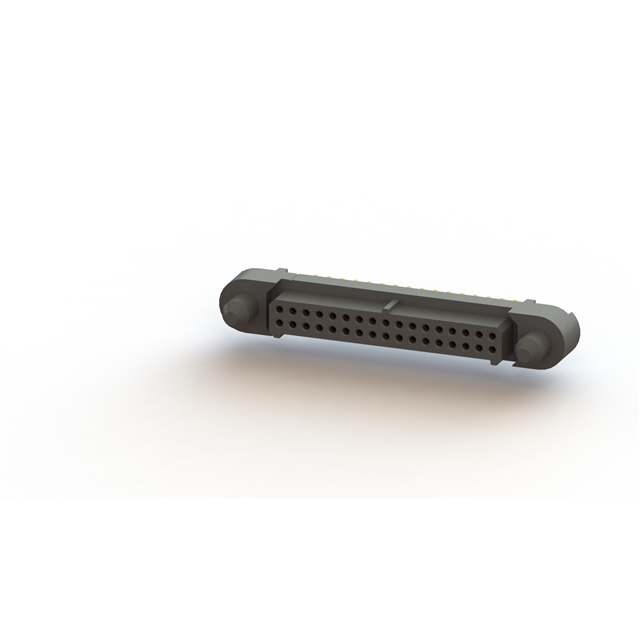

Nicomatic A222Y34R	Liquid Crystal Polymer (LCP)	Copper Alloy	0.15 µm	5.9 µin	Circular	Gold	2	0.039 in	1 mm	Push-Pull	UL94 V-0	600 VAC	Receptacle	1 mm	0.039 in	Guide Pin Mating Guide	2.5 A	Female Socket	All	-65 ░C	200 °C	Solder	Black	0.122 in	3.1 mm	34	5.9 µin	0.15 µm	4.4 mm	0.173 in	Through Hole	Gold

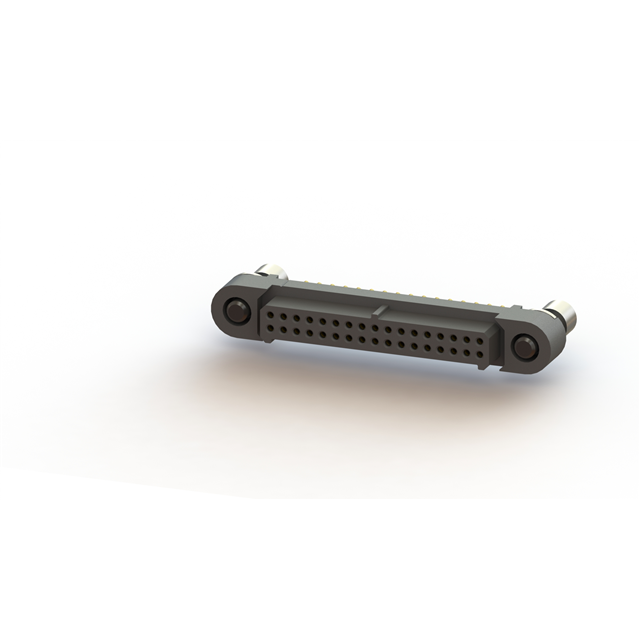

Nicomatic A222Y34V16	Liquid Crystal Polymer (LCP)	Copper Alloy	0.15 µm	5.9 µin	Circular	Gold	2	0.039 in	1 mm		UL94 V-0	600 VAC	Receptacle	1 mm	0.039 in	Jackscrews Mating Flange Mounting Flange Polarizing Key	2.5 A	Female Socket	All	-65 ░C	200 °C	Solder	Black	0.122 in	3.1 mm	34	5.9 µin	0.15 µm	4.4 mm	0.173 in	Through Hole	Gold
