6771215 Series
Manufacturer: DIALIGHT
Beta
⌘K

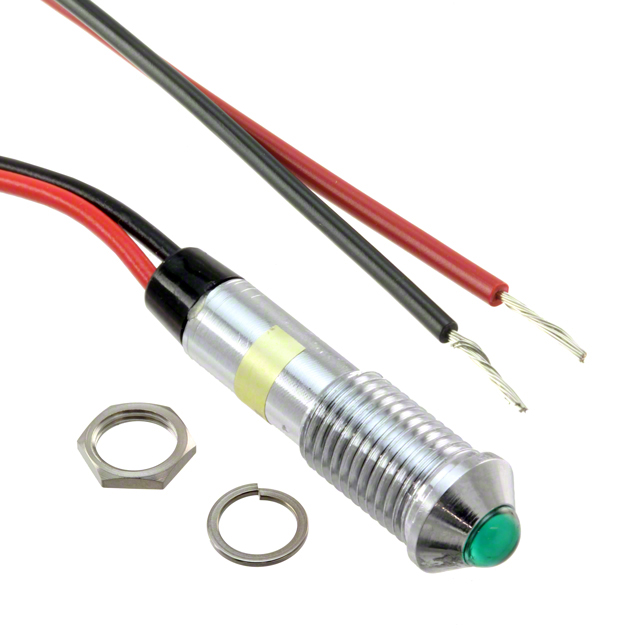

7MM HG/G PMI-12VDC W/O-RING
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Ratings | Panel Cutout Shape | Lens Style | Millicandela Rating | Voltage | Ingress Protection | Lens Size [diameter] | Lamp Color | Current | Type | Wavelength - Peak | Viewing Angle | Panel Cutout Dimensions | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | 7.11 mm | 0.28 in | DC | Round | Round with Domed Top | 4135 mcd | 12 V | IP66 NEMA 4X | 4 mm Dia | Green | 30 mA | LED | ||||
 DIALIGHT | DC | Round | Round with Domed Top | 12000 mcd | 6 V | IP66 NEMA 4X | 4.5 mm | Green | 30 mA | LED | 525 nm | 25 ° | 7.2 mm | 0.28 in | ||
DIALIGHT | DC | Round | Round with Domed Top | 12000 mcd | 24 V | IP66 NEMA 4X | 4.5 mm | Green | 30 mA | LED | 525 nm | 25 ° | 7.2 mm | 0.28 in |
