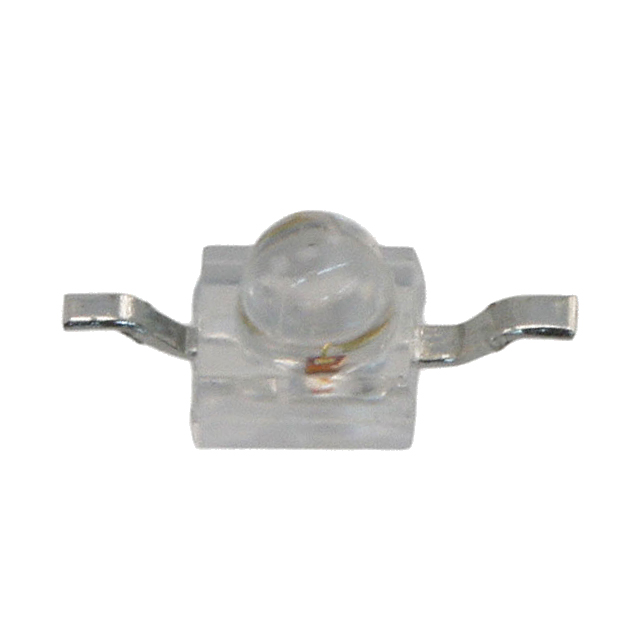

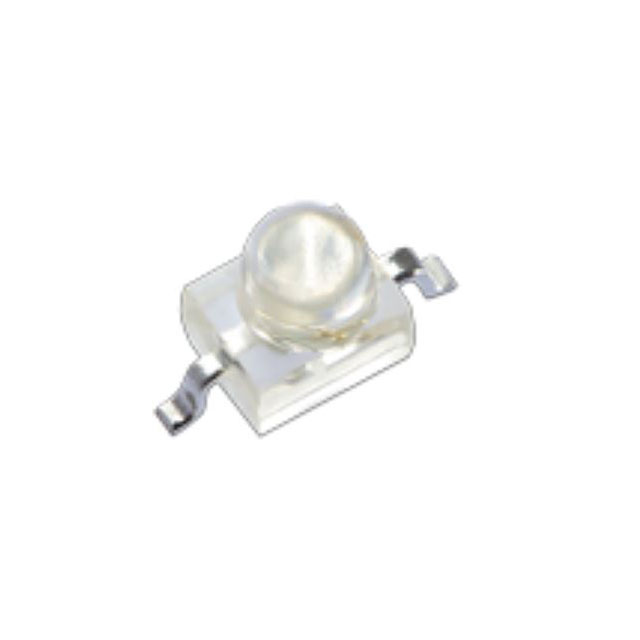

AM2520 Series

Catalog

LED GREEN DIFFUSED SMD

Part	Configuration	Wavelength - Dominant	Lens Transparency	Lens Style	Color	Viewing Angle	Wavelength - Peak	Lens Color	Lens Size [diameter]	Current - Test	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Supplier Device Package	Height (Max) [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Wavelength	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Power - Max [Max]
Kingbright AM2520SGD03	Standard	568 nm	Diffused	Round with Domed Top	Green	40 °	565 nm	Green	1.9 mm Dia	20 mA	2.2 V	10 mcd	SMD	2.9 mm	Surface Mount	2.5 mm	2 mm	2-SMD Gull Wing

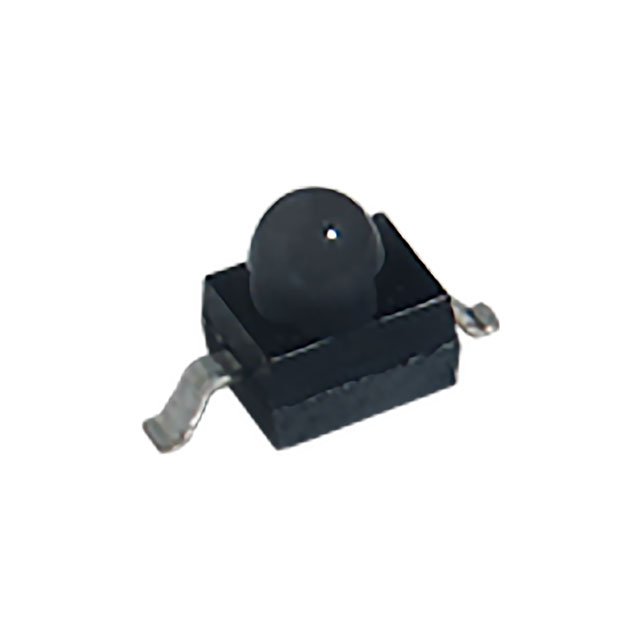

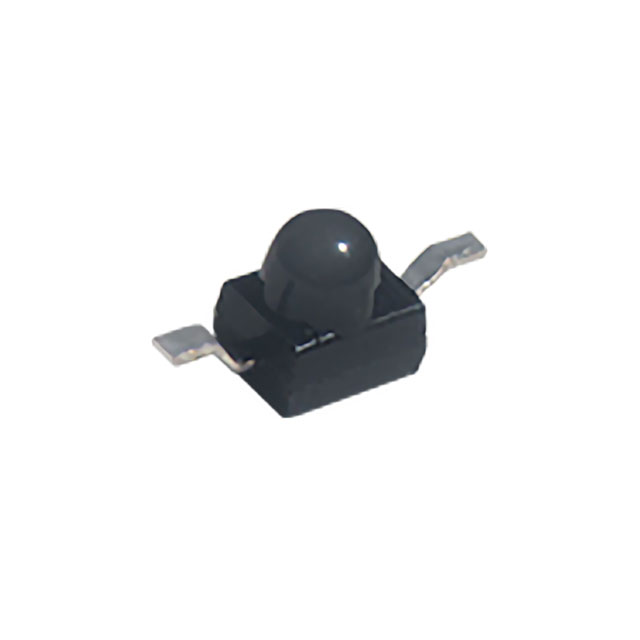

Kingbright AM2520P3BT03						20 °									Surface Mount			2-SMD Gull Wing	940 nm	100 nA	85 °C	-40 C	30 V	Top View	100 mW

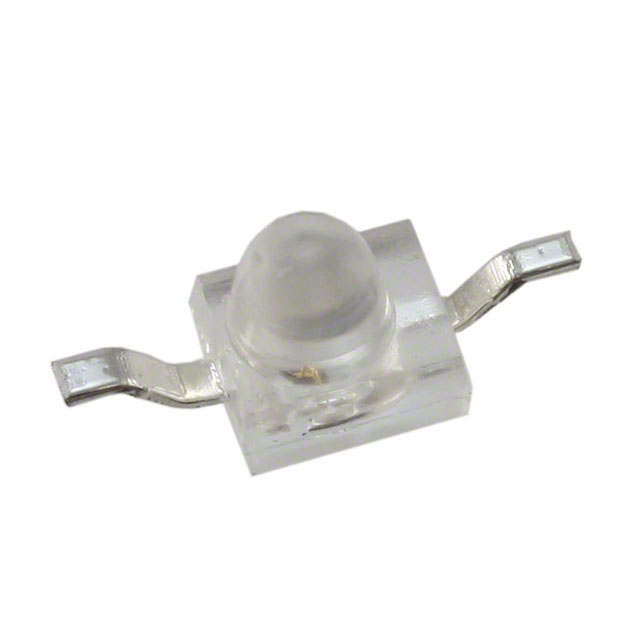

Kingbright AM2520SURCK09	Standard	630 nm	Clear	Round with Domed Top	Red	20 °	645 nm	Colorless	1.9 mm Dia	20 mA	1.95 V	1000 mcd	2-SMD Z-Bend	2.9 mm	Surface Mount Bottom Entry	2.5 mm	2 mm	2-SMD Z-Bend Bottom Entry

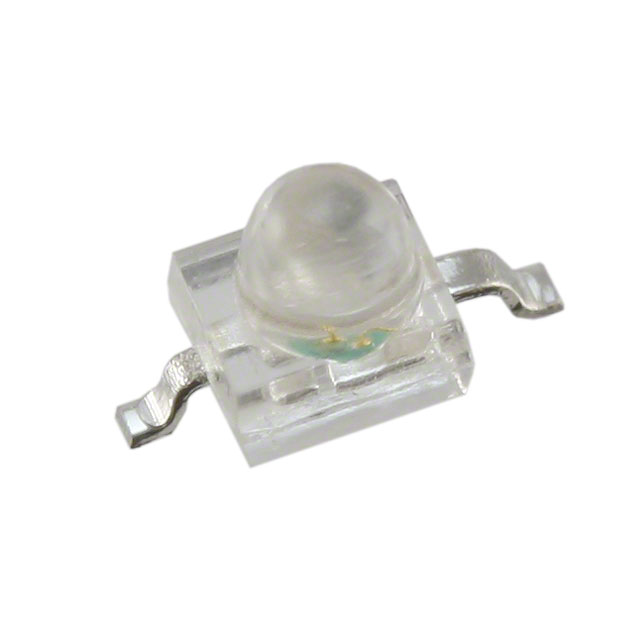

Kingbright AM2520SURCK03	Standard	630 nm	Clear	Round with Domed Top	Red	20 °	645 nm	Colorless	1.9 mm Dia	20 mA	1.95 V	1000 mcd	SMD	2.9 mm	Surface Mount	2.5 mm	2 mm	2-SMD Gull Wing
Kingbright AM2520ZGC09	Standard	525 nm	Clear	Round with Domed Top	Green	20 °	515 nm	Colorless	1.9 mm Dia	20 mA	3.3 V	3000 mcd	SMD	2.9 mm	Surface Mount Bottom Entry	2.5 mm	2 mm	2-SMD Z-Bend
Kingbright AM2520MGC09	Standard	570 nm	Clear	Round with Domed Top	Green	20 °		Colorless	1.9 mm Dia	20 mA	2.1 V	1000 mcd	SMD	2.9 mm	Surface Mount	2.5 mm	2 mm	2-SMD Z-Bend

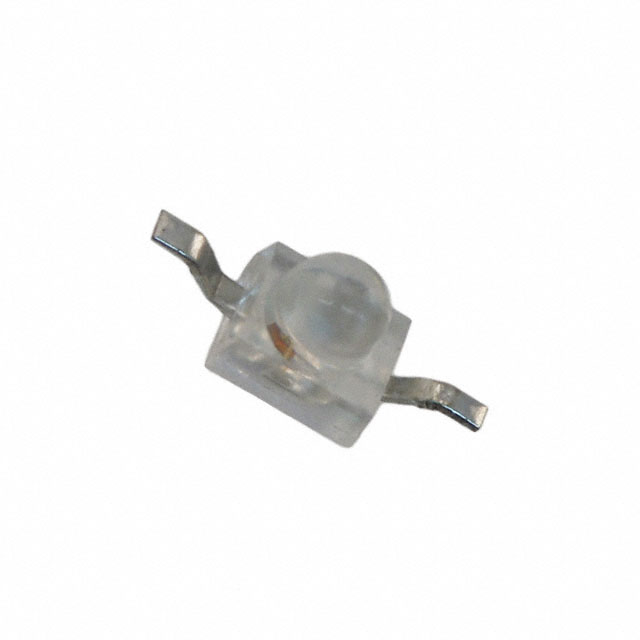

Kingbright AM2520EC09	Standard	617 nm	Clear	Round with Domed Top	Red	20 °	627 nm	Colorless	1.9 mm Dia	20 mA	2 V	50 mcd	SMD	2.9 mm	Surface Mount Bottom Entry	2.5 mm	2 mm	2-SMD Z-Bend
Kingbright AM2520SECK03	Standard	601 nm	Clear	Round with Domed Top		20 °	610 nm	Colorless	1.9 mm Dia	20 mA	2.1 V	1800 mcd	SMD	2.9 mm	Surface Mount	2.5 mm	2 mm	2-SMD Gull Wing
Kingbright AM2520QBC/D03	Standard	465 nm	Clear	Round with Domed Top	Blue	20 °	460 nm	Colorless	1.9 mm Dia	20 mA	3.3 V	900 mcd	SMD	2.9 mm	Surface Mount	2.5 mm	2 mm	2-SMD Gull Wing
Kingbright AM2520YC09	Standard	588 nm	Clear	Round with Domed Top	Yellow	20 °	590 nm	Colorless	1.9 mm Dia	20 mA	2.1 V	50 mcd	SMD	2.9 mm	Surface Mount Bottom Entry	2.5 mm	2 mm	2-SMD Z-Bend
