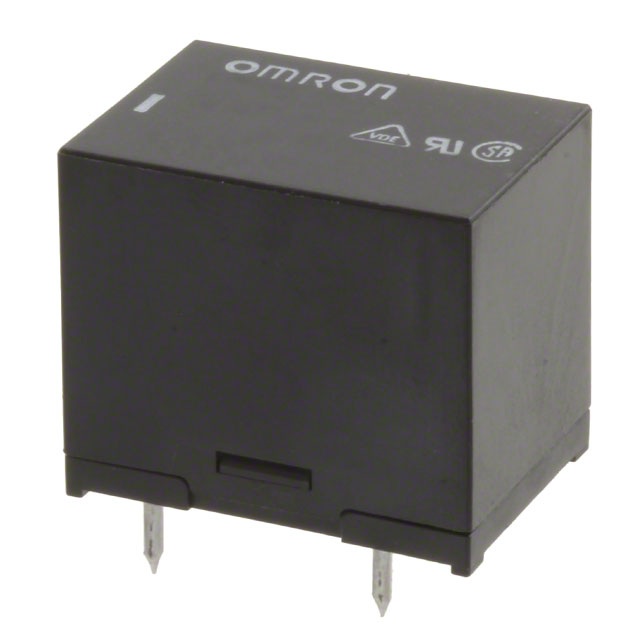

G5LE-1-C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 12V
| Part | Coil Type | Seal Rating | Coil Insulation | Contact Rating (Current) | Coil Current | Termination Style | Coil Voltage | Relay Type | Switching Voltage | Contact Form | Coil Resistance | Must Operate Voltage | Operate Time | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Release Time | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | Sealed - Flux Protection | Class F | 10 A | 33.3 mA | PC Pin | 12 VDC | General Purpose | 125 VDC 250 VAC | SPDT (1 Form C) | 360 Ohms | 9 VDC | 10 ms | CSA TUV UR VDE | -25 °C | 85 °C | Through Hole | Silver Tin Oxide (AgSnO) | 5 ms | 1.2 VDC |
 Omron Electronics Inc-EMC Div | Non Latching | Sealed - Flux Protection | Class F | 10 A | 45 mA | PC Pin | 9 VDC | General Purpose | 125 VDC 250 VAC | SPDT (1 Form C) | 200 Ohms | 6.75 VDC | 10 ms | CSA TUV UR VDE | -25 °C | 85 °C | Through Hole | Silver Tin Oxide (AgSnO) | 5 ms | 0.9 VDC |
Omron Electronics Inc-EMC Div | Non Latching | Sealed - Flux Protection | Class F | 10 A | 16.7 mA | PC Pin | 24 VDC | General Purpose | 125 VDC 250 VAC | SPDT (1 Form C) | 1440 Ohms | 18 VDC | 10 ms | CSA TUV UR VDE | -25 °C | 85 °C | Through Hole | Silver Tin Oxide (AgSnO) | 5 ms | 2.4 VDC |
