MPQ8636 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

10A, 4.5-18V,CCM, LATCH-OFF OVP, COT SYNCHRONOUS STEP-DOWN CONVERTER

Part	Function	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Supplier Device Package	Topology	Number of Outputs	Current - Output	Voltage - Input (Min) [Min]	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Output (Min/Fixed)	Output Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package [custom]
Monolithic Power Systems Inc. MPQ8636GLE-10-Z	Step-Down	18 V	13 V	16-QFN (3x4)	Buck	1	10 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	16-PowerVFQFN
Monolithic Power Systems Inc. MPQ8636GLE-4-P	Step-Down	18 V	13 V	16-QFN (3x4)	Buck	1	4 A	4.5 V	Surface Mount	1 MHz	400 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	16-PowerVFQFN
Monolithic Power Systems Inc. MPQ8636AGLE-10-P	Step-Down	18 V	13 V	16-QFN (3x4)	Buck	1	10 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	16-PowerVFQFN

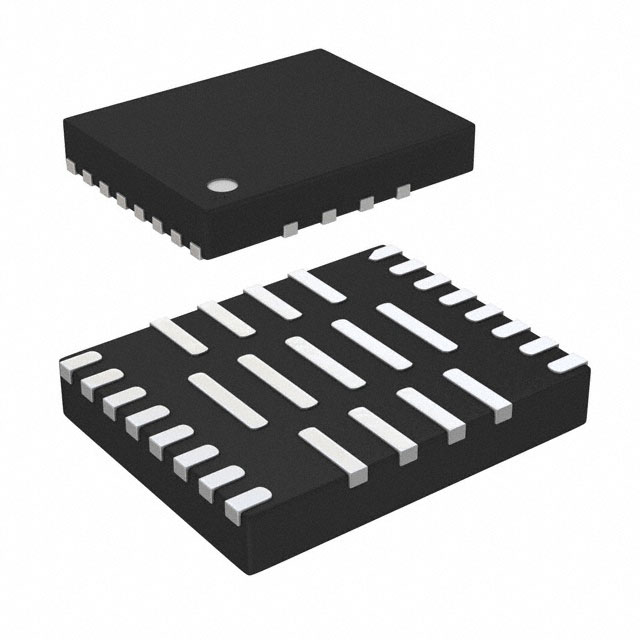

Monolithic Power Systems Inc. MPQ8636GVE-20-Z	Step-Down	18 V	13 V	29-QFN	Buck	1	20 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	29-VFQFN Exposed Pad	5x4
Monolithic Power Systems Inc. MPQ8636GL-10-P	Step-Down	18 V	13 V	13-QFN (3x4)	Buck	1	10 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	13-VFQFN

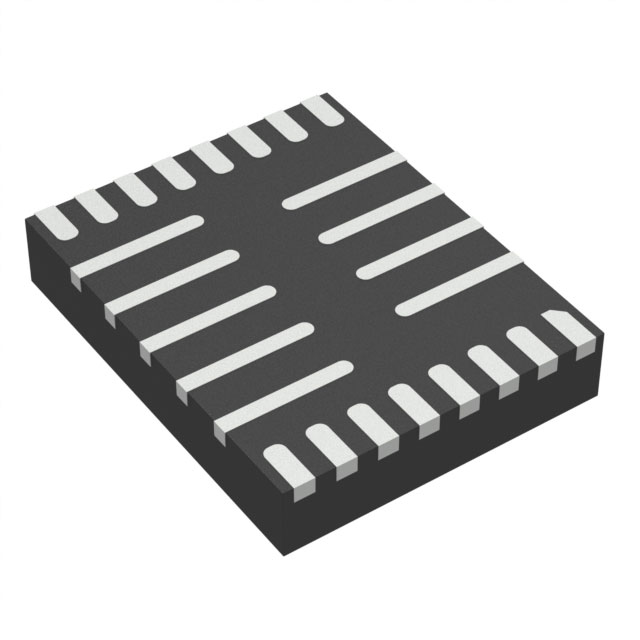

Monolithic Power Systems Inc. MPQ8636GV-20-Z	Step-Down	18 V	13 V		Buck	1	20 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	25-VFQFN
Monolithic Power Systems Inc. MPQ8636HGL-10-P	Step-Down	18 V	13 V	13-QFN (3x4)	Buck	1	10 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	13-VFQFN
Monolithic Power Systems Inc. MPQ8636HGLE-10-P	Step-Down	18 V	13 V	16-QFN (3x4)	Buck	1	10 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	16-PowerVFQFN
Monolithic Power Systems Inc. MPQ8636HGLE-10-Z	Step-Down	18 V	13 V	16-QFN (3x4)	Buck	1	10 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	16-PowerVFQFN
Monolithic Power Systems Inc. MPQ8636HGV-20-P	Step-Down	18 V	13 V		Buck	1	20 A	4.5 V	Surface Mount	1 MHz	200 kHz	0.611 V	Adjustable	Positive	-40 C	125 °C	25-VFQFN
