E52-CA1 Series

Catalog

T-COUPLD K M6 THREADED 4M

Part	Diameter - Protective Tube [diameter]	Element Type	Terminal Type	Length - Lead Wire	Length - Lead Wire	Conductor Type	Temperature Range [Max]	Length - Lead Wire [x]	Length - Lead Wire [x]	Diameter - Protective Tube	Diameter - Protective Tube [diameter]	Length - Protective Tube [x]
Omron Electronics Inc-EMC Div E52-CA1DY-40 M6 4M	M6 screw	K - Type	Exposed Lead Wires	4 m	13.123 ft	Grounded	400 °C

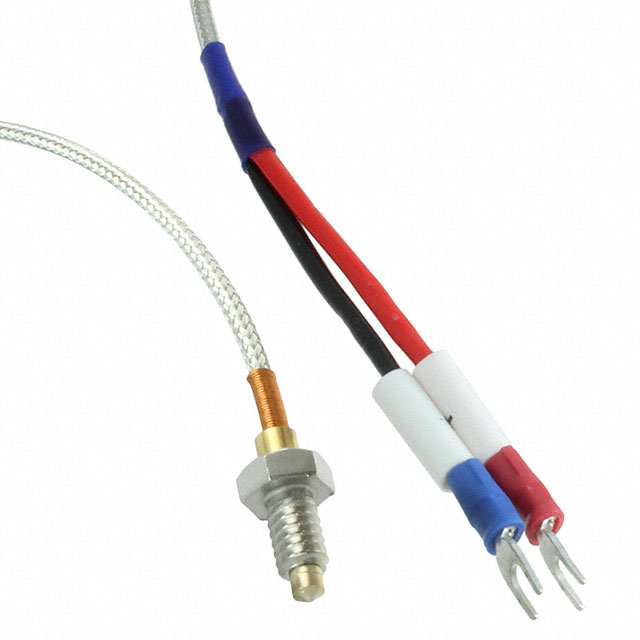

Omron Electronics Inc-EMC Div E52-CA1DY W1/4 1M	W1/4 Screw	K - Type	Exposed Lead Wires	1 m	3.281 '	Grounded	400 °C

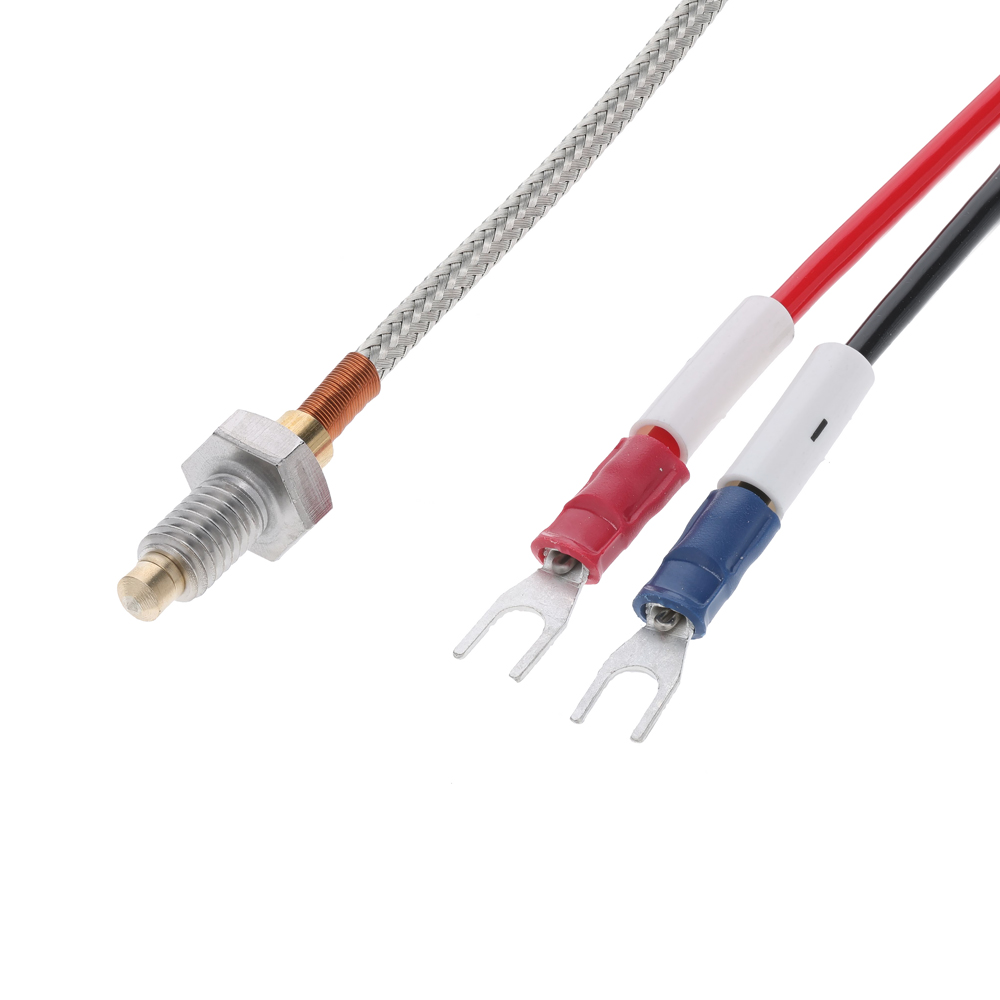

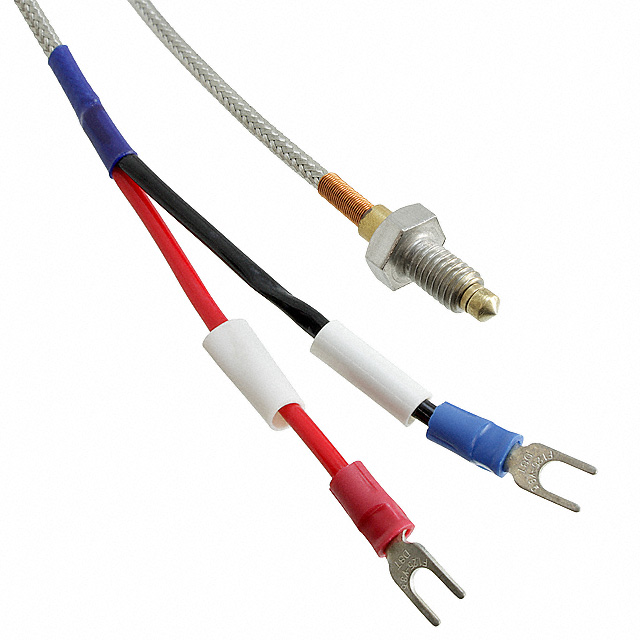

Omron Electronics Inc-EMC Div E52-CA1DY M6 2M	M6 screw	K - Type	Exposed Lead Wires			Grounded	400 °C	6.562 ft	2 m
Omron Electronics Inc-EMC Div E52-CA1DY M8 2M		K - Type	Exposed Lead Wires			Grounded	400 °C	6.562 ft	2 m	M8 screw
Omron Electronics Inc-EMC Div E52-CA1DY W1/4 2M	W1/4 Screw	K - Type	Exposed Lead Wires			Grounded	400 °C	6.562 ft	2 m
Omron Electronics Inc-EMC Div E52-CA1DY W1/4 4M	W1/4 Screw	K - Type	Exposed Lead Wires	4 m	13.123 ft	Grounded	400 °C
Omron Electronics Inc-EMC Div E52-CA1GTY-14 2M		K - Type	Crimping Terminals Exposed Lead Wires			Grounded	200 °C	6.562 ft	2 m		6.6 mm
Omron Electronics Inc-EMC Div E52-CA1DY-30 W1/4 2M		K - Type	Exposed Lead Wires			Grounded	400 °C	6.562 ft	2 m		3 mm	10 mm
