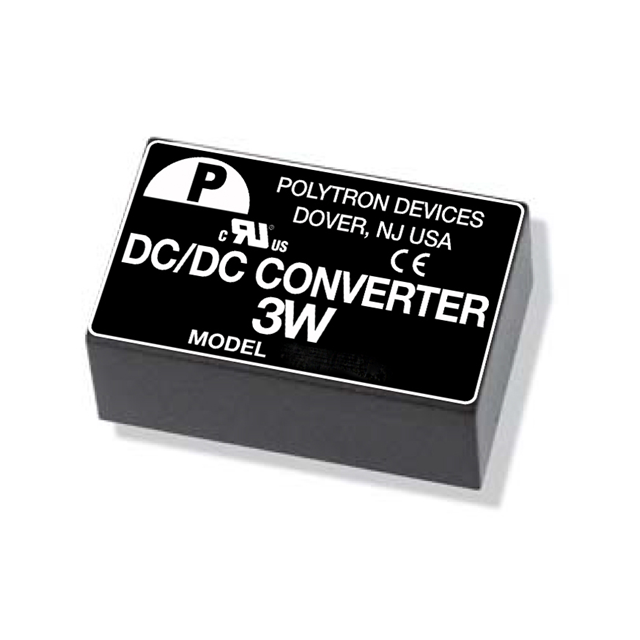

TW3-5 Series

Manufacturer: Polytron

Catalog

DC DC CONVERTER +/-12V 3W

Part	Efficiency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Package / Case	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Applications	Current - Output (Max)	Voltage - Output 1	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Polytron TW3-5-12	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-12 V	12 Leads	24-DIP Module	2	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)	125 mA	12 V	5.5 V	Through Hole
Polytron TW3-5S5	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		12 Leads	24-DIP Module	1	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)		5 V	5.5 V	Through Hole	600 mA
Polytron TW3-5S12	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		12 Leads	24-DIP Module	1	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)		12 V	5.5 V	Through Hole	250 mA
Polytron TW3-5-9	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-9 V	12 Leads	24-DIP Module	2	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)	167 mA	9 V	5.5 V	Through Hole
Polytron TW3-5S15	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		12 Leads	24-DIP Module	1	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)		15 V	5.5 V	Through Hole	200 mA
Polytron TW3-5-15	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	-15 V	12 Leads	24-DIP Module	2	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)		15 V	5.5 V	Through Hole		100 mA	100 mA
Polytron TW3-5S9	55 %	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		12 Leads	24-DIP Module	1	71 °C	-25 °C	3 W	4.75 V	500 V	ITE (Commercial)		9 V	5.5 V	Through Hole	334 mA
